PRO BAS Switch-Mode Power Supply 480W 48V 10A
Ask an expert!

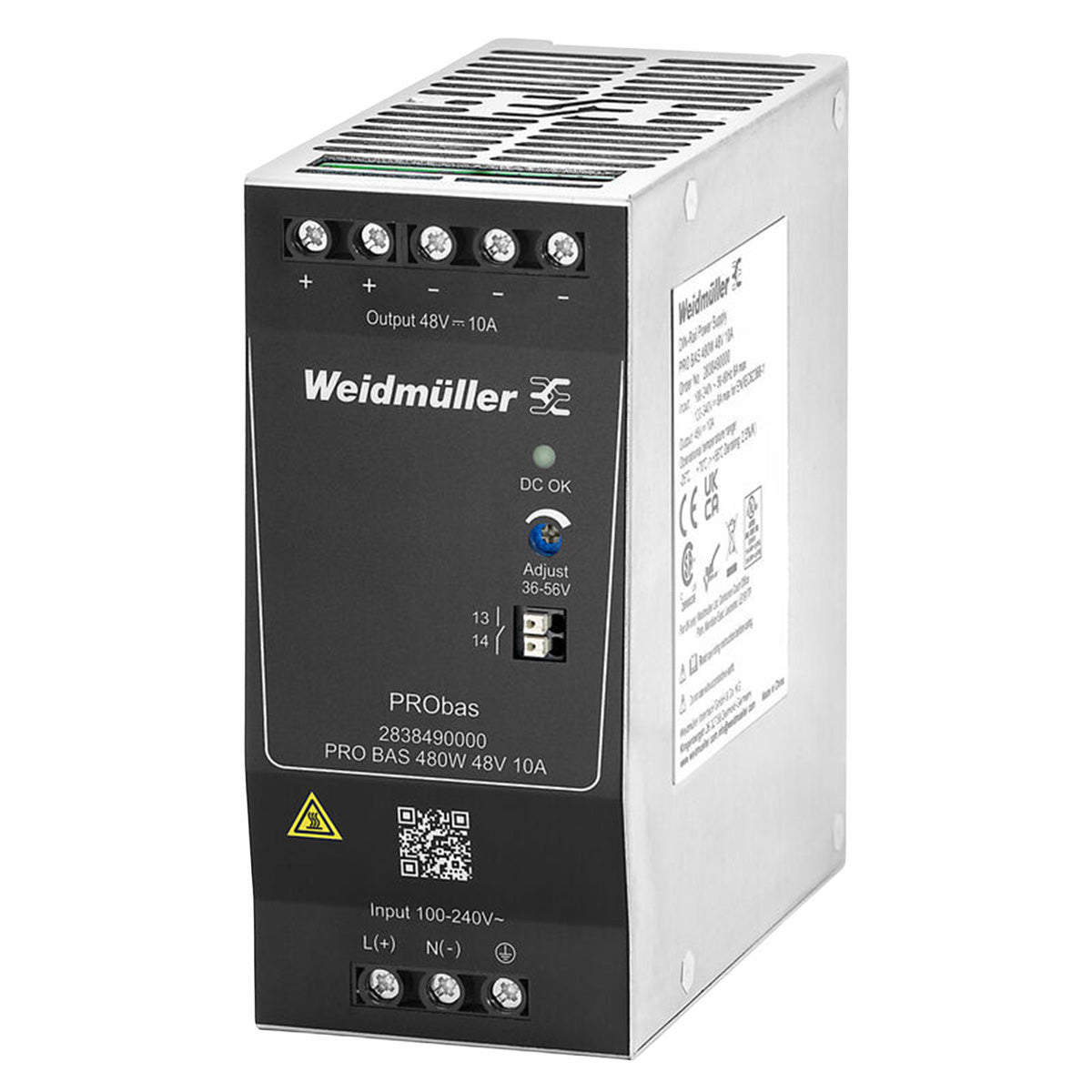

The Weidmüller PRO BAS 480W 48V 10A is a high-efficiency DIN rail switch-mode power supply designed for industrial control panel applications requiring a stable 48 V DC bus. With a true wide-range input (85–264 V AC or 110–370 V DC), a 95% efficiency rating at full load, and comprehensive built-in protection functions, it is suited to OEM machinery, process control systems, and industrial communication infrastructure requiring 48 V supply. Up to three units can be connected in parallel for redundancy or increased output capacity.
| Output Voltage | 48 V DC nominal (adjustable 36–56 V DC) |
|---|---|

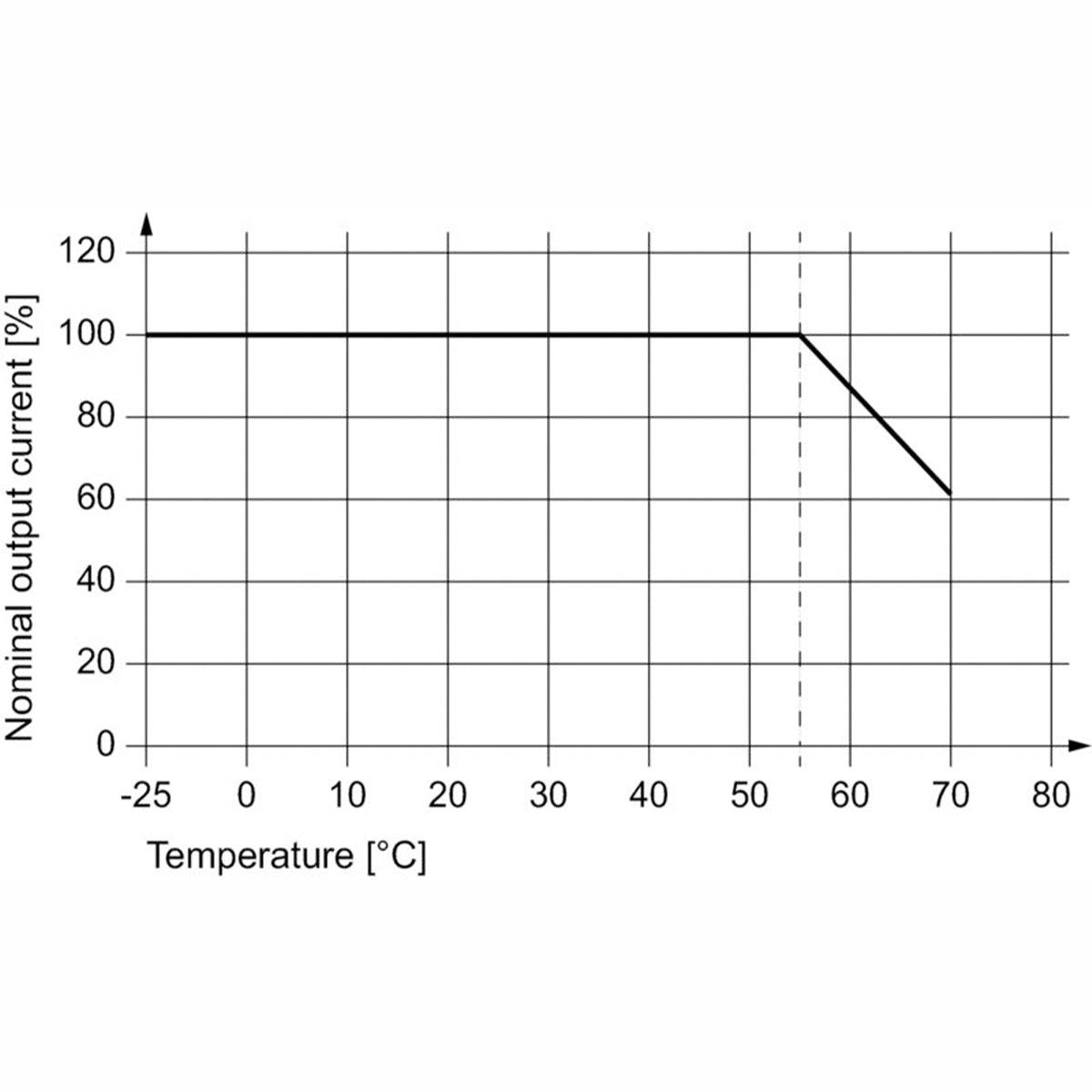

| Output Current | 10 A @ 55°C / 6.25 A @ 70°C |
| Output Power | 480 W |
| Output Ripple | ≤ 100 mVpp @ full load |

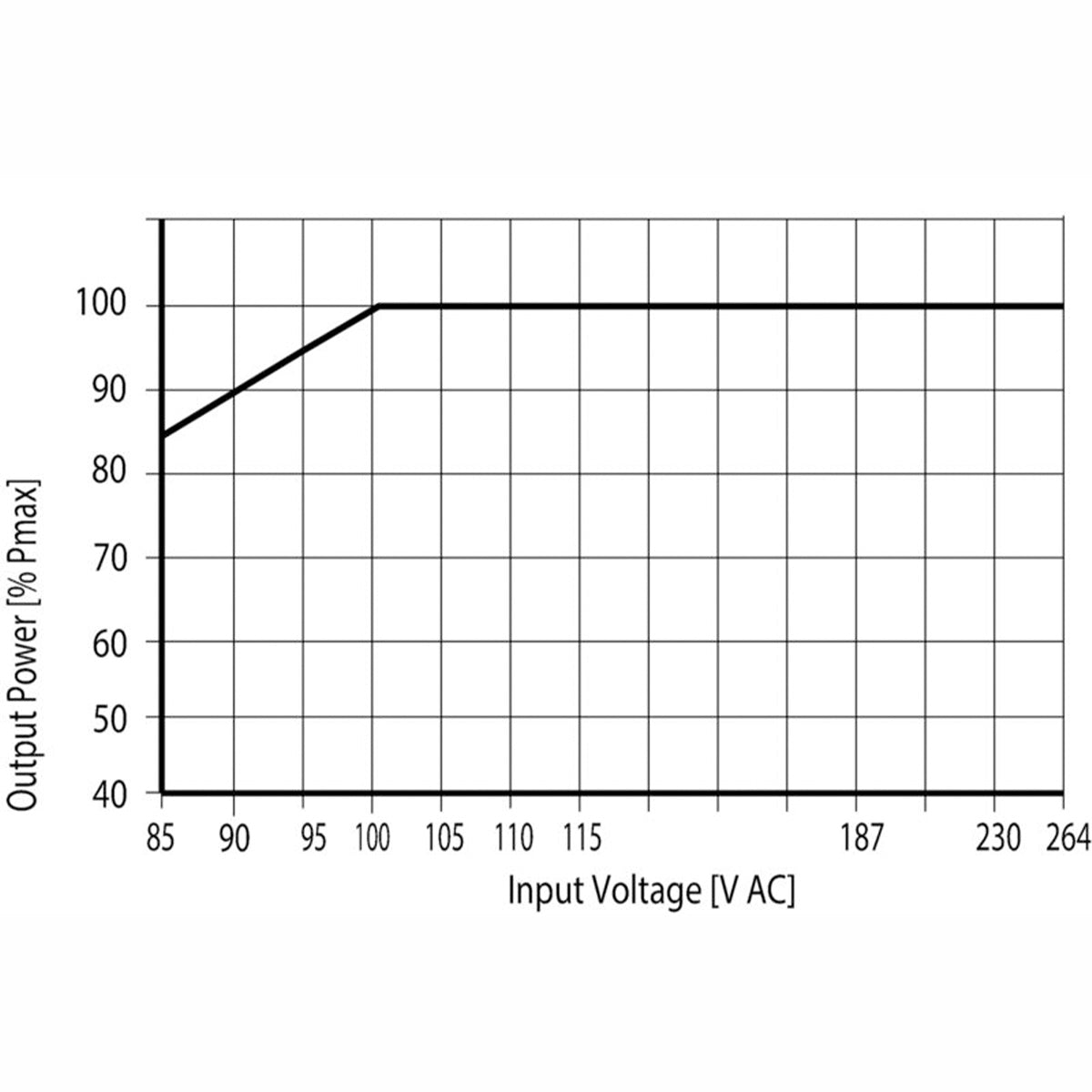

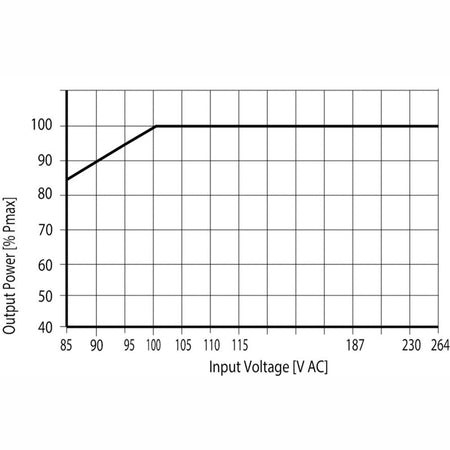

| Input Voltage (AC) | 85–264 V AC, 45–65 Hz (derating below 100 V AC) |

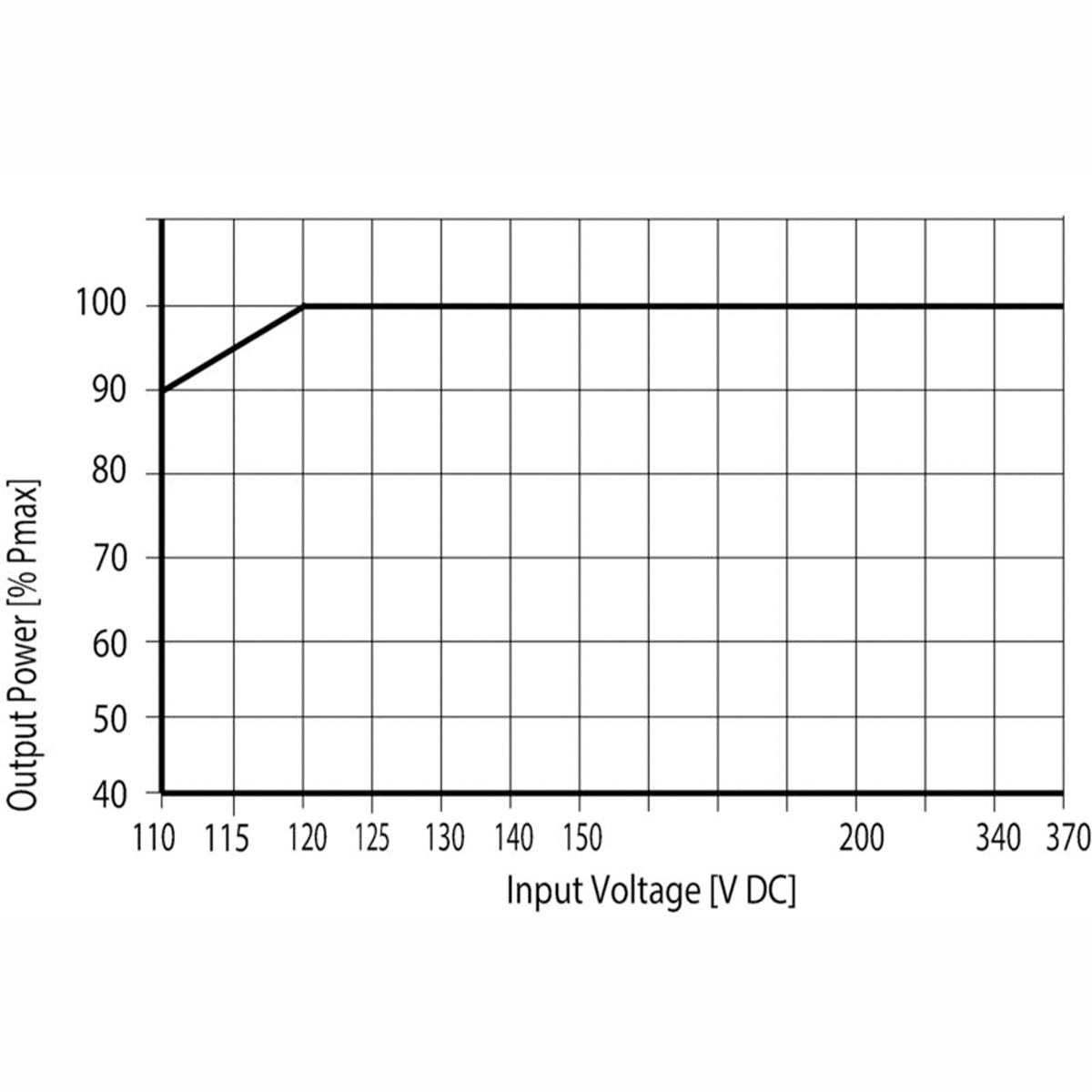

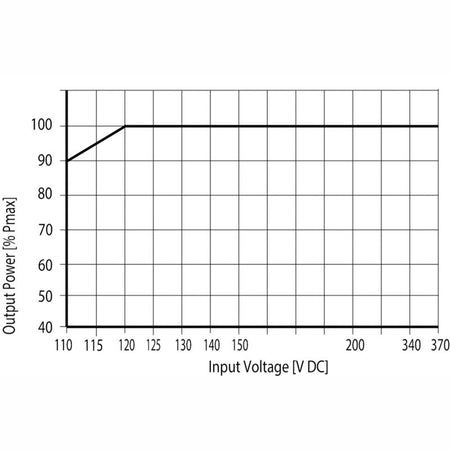

| Input Voltage (DC) | 110–370 V DC (derating below 120 V DC) |
| Input Current | 2.26 A @ 230 V AC / 4.58 A @ 115 V AC |
| Efficiency | 95% @ 230 V AC nominal load |
| Mains Hold-Up Time | > 80 ms @ 230 V AC / > 20 ms @ 115 V AC |
| Parallel Connection | Yes — up to 3 units |
| Protection | Overload, short-circuit, over-temperature, reverse voltage |
| Status Indication | Green LED + floating signal contact (max 30 V DC / 1 A) |
| Housing | Metal, corrosion resistant |
| Mounting | DIN rail TS35 (horizontal), 50 mm clearance top and bottom |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (H×W×D) | 130 × 59 × 125 mm |
| Net Weight | 1,380 g |
| EMC Emission | EN55032 Class B |
| Standards | EN50178, IEC 61010-1, IEC 61010-2-201, EN 61558-2-16 |
| Compliance | RoHS compliant |
| Part Number | 2838490000 |
- Wide-range input: 85–264 V AC or 110–370 V DC — compatible with global supply voltages and DC bus systems
- 95% efficiency at nominal load — minimises heat dissipation and energy costs in panel environments
- Parallel connection of up to 3 units for N+1 redundancy or increased output capacity
- Floating signal contact for remote monitoring of output OK status
- Compatible with Weidmüller electronic fuses, DC UPS modules, and diode modules for integrated power management systems
Available from TROPAC — contact our team for pricing and availability.
