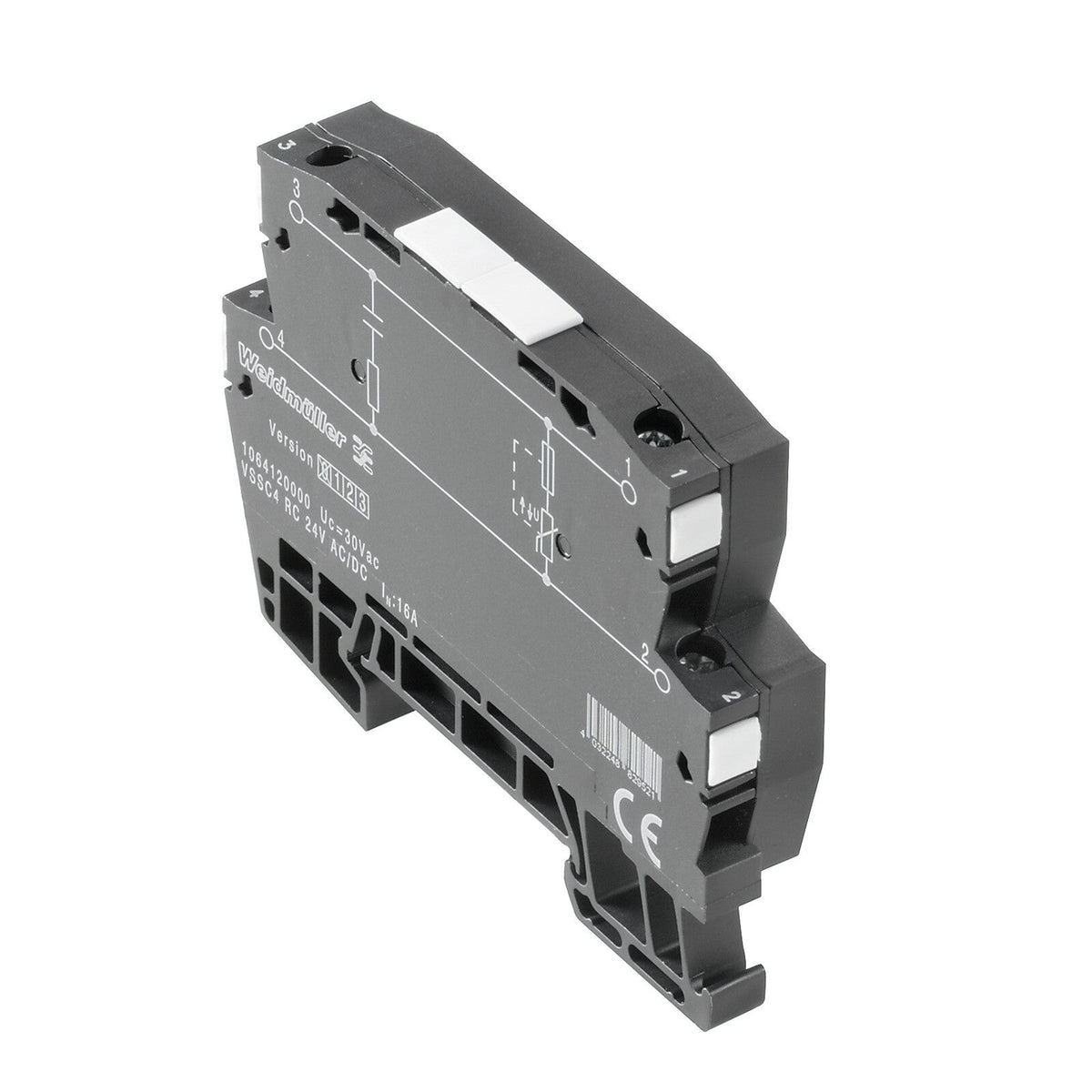

SIGNAL SURGE PROTECTION, 240VAC/DC - VSSC4 RC 240VAC/DC — Weidmuller

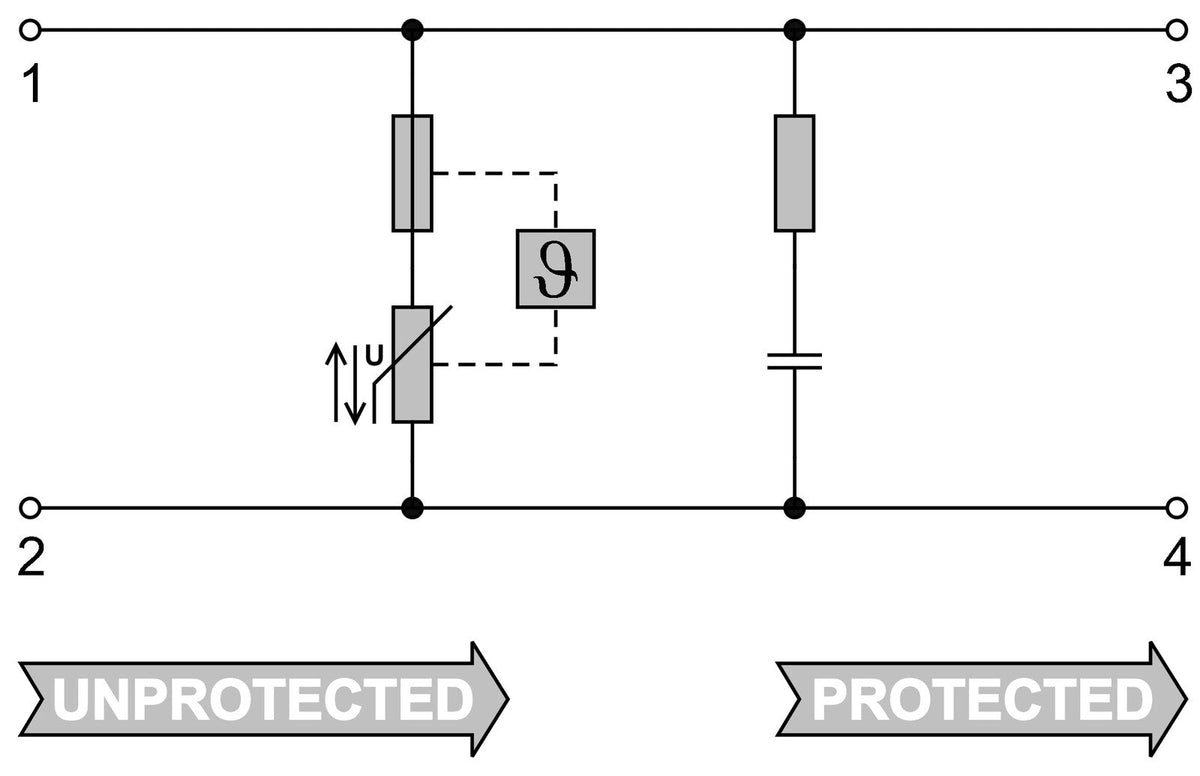

Signal Surge Protection, 240VAC/DC - VSSC4 RC 240VAC/DC - figure 2
Signal Surge Protection, 240VAC/DC - VSSC4 RC 240VAC/DC - figure 3
SIGNAL SURGE PROTECTION, 240VAC/DC - VSSC4 RC 240VAC/DC — Weidmuller
Signal Surge Protection, 240VAC/DC - VSSC4 RC 240VAC/DC - figure 2
Signal Surge Protection, 240VAC/DC - VSSC4 RC 240VAC/DC - figure 3

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Weidmuller

SIGNAL SURGE PROTECTION, 240VAC/DC - VSSC4 RC 240VAC/DC

SKU
$94.99 ex. GST $104.49 inc. GST
In stock
1 in stock across 3 warehouses

The Weidmüller VSSC4 RC 240VAC/DC is a feed-through terminal combining a sparkover gap with an RC interference suppressor, rated 240 V AC / 339 V DC at 20 A. It is used to damp the switching transients thrown off by inductive loads such as solenoid valves, contactor coils and small motors, at the terminal rail rather than at the device.

  • Function: Sparkover gap and RC suppressor combination
  • Rated voltage: 240 V AC / 339 V DC
  • Rated current: 20 A
  • Typical use: Solenoid valves and other inductive loads
  • Mounting: DIN rail feed-through terminal
