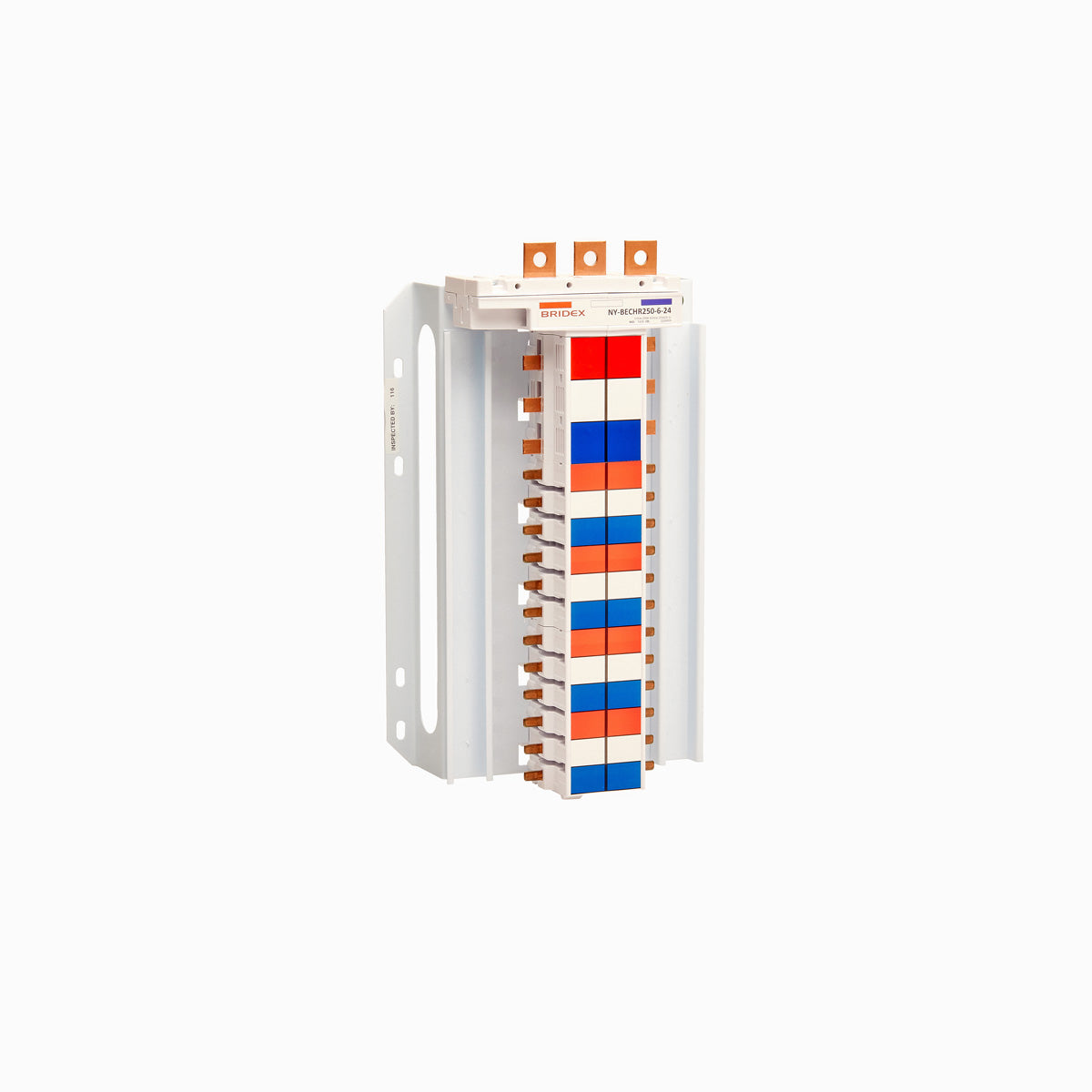

Versch NY-BECHR250-12-36 48P 250A Hybrid MCB Chassis (12P @ 27mm + 36P @ 18mm) – End of Life Clearance – image 1

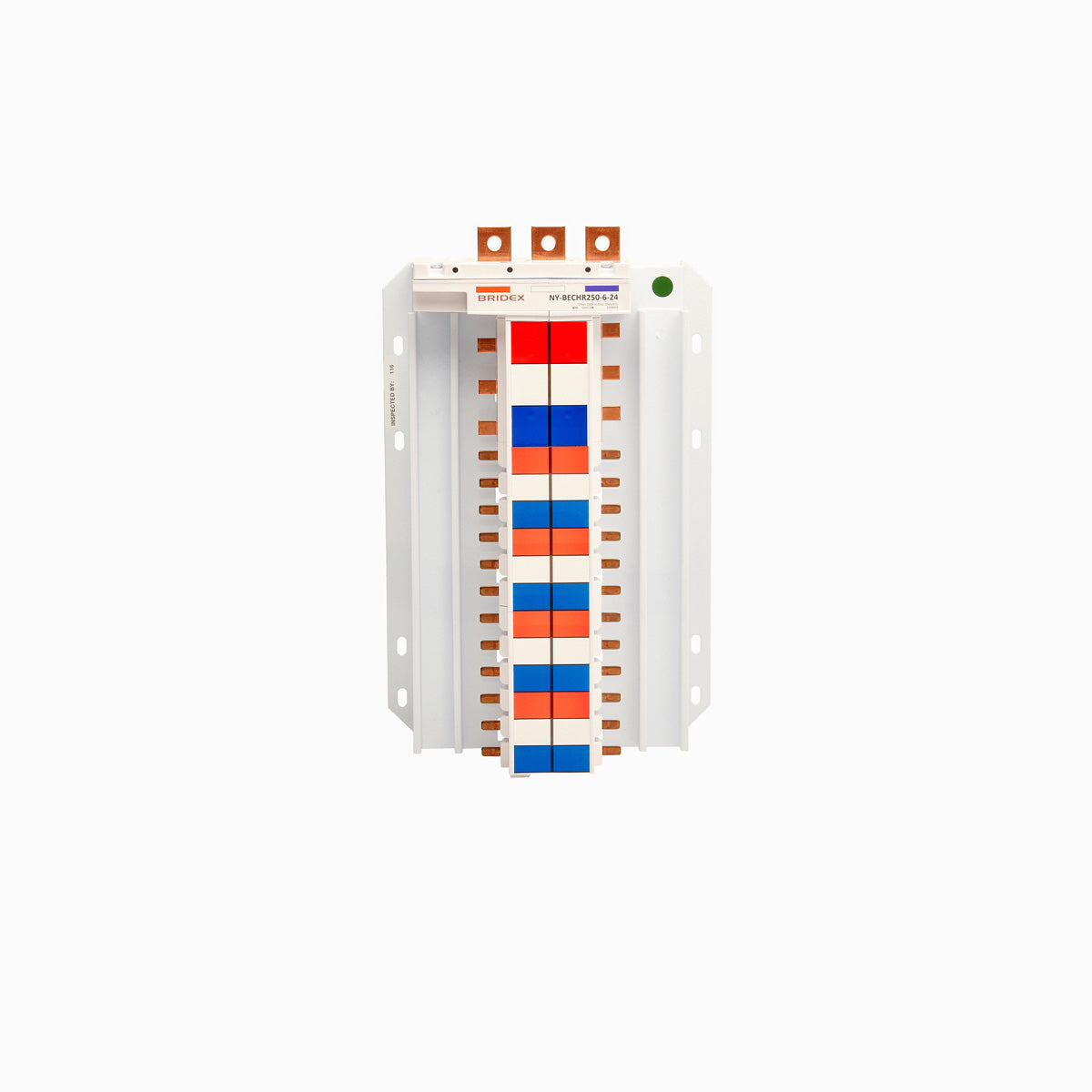

Versch NY-BECHR250-12-36 48P 250A Hybrid MCB Chassis (12P @ 27mm + 36P @ 18mm) – End of Life Clearance – image 2
Versch NY-BECHR250-12-36 48P 250A Hybrid MCB Chassis (12P @ 27mm + 36P @ 18mm) – End of Life Clearance – image 1
Versch NY-BECHR250-12-36 48P 250A Hybrid MCB Chassis (12P @ 27mm + 36P @ 18mm) – End of Life Clearance – image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Versch

48P 250A Hybrid MCB Chassis (12P @ 27mm + 36P @ 18mm)

SKU
$305 ex. GST $335.50 inc. GST
-40% Clearance $507.68 AUD
$305 ex. GST $335.50 inc. GST

Online Clearance Pricing only. Non-cancellable and non-returnable.

In stock
1 in stock across 3 warehouses

Versch NY-BECHR250-12-36 48P 250A Hybrid MCB Chassis (12P @ 27mm + 36P @ 18mm)

The Versch NY-BECHR250-12-36 is a 250 A hybrid encapsulated MCB chassis with 48 outgoing poles: 12 at 27 mm pitch for larger frame MCBs and 36 at 18 mm pitch. It provides a compact, pre-assembled MCB distribution section for switchboards and distribution boards.

Brand Versch
Part number NY-BECHR250-12-36
Range Hybrid encapsulated MCB chassis (27 mm + 18 mm pitch)
Rated busbar current 250 A
Outgoing poles 48
Pitch 12 poles @ 27 mm + 36 poles @ 18 mm
Feed arrangement Top Feed
Suits LS Electric BKN MCBs (original series)
  • 250 A rated encapsulated copper busbar
  • 48 outgoing poles (12 @ 27 mm + 36 @ 18 mm)
  • Top Feed arrangement
  • Suits LS Electric BKN MCBs (original series)
