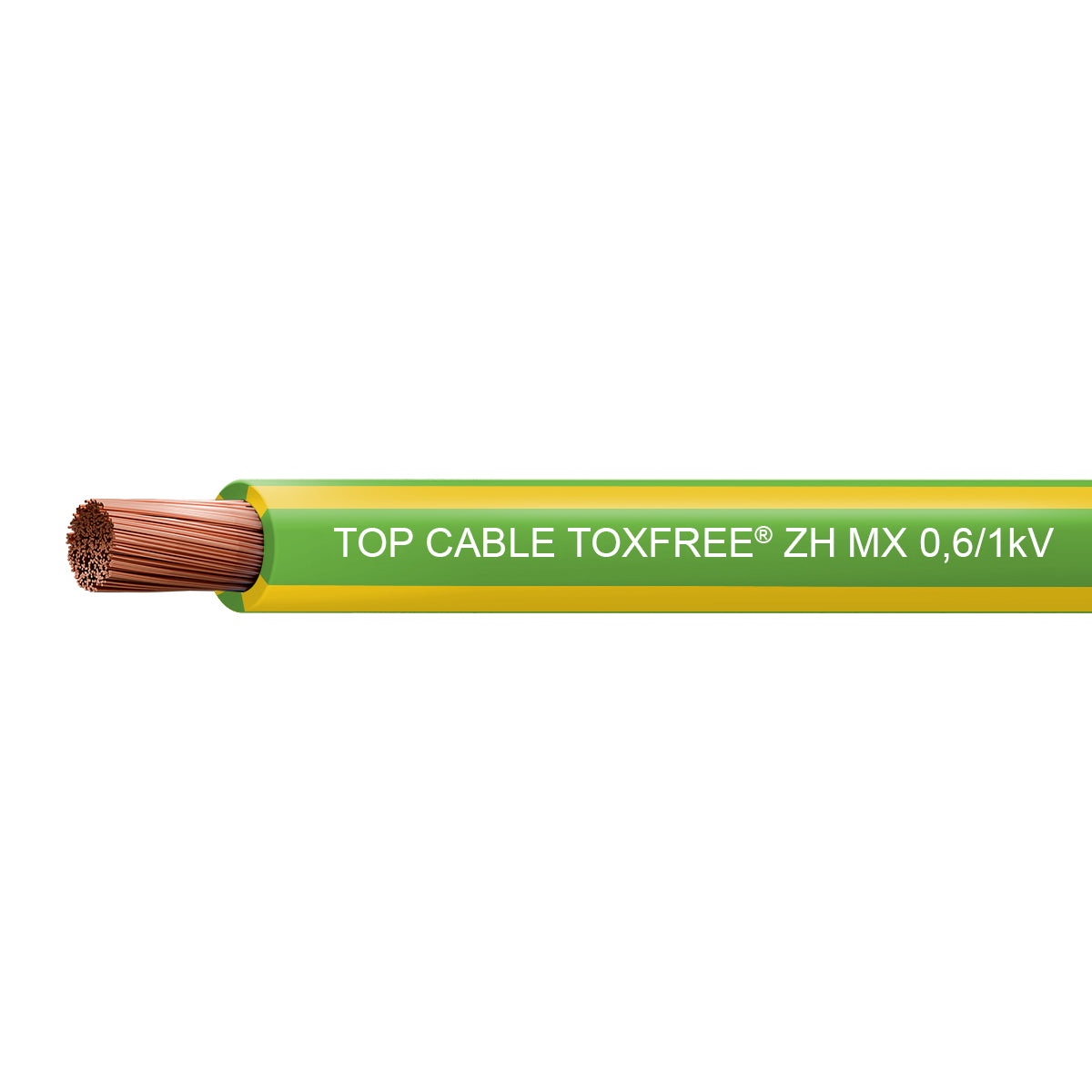

LSZH Marine Panel Wire 1x1.5mm Green/Yellow 100M Roll

Toxfree ZH MX – LSZH Marine Earth Wire

The Toxfree® ZH MX is a high-specification, flexible halogen-free cable designed for protective earthing in electrical panels and marine environments. This premium earth wire is dual-rated, carrying DNV-GL certification, making it suitable for both high-end industrial switchboards and sea-faring vessels. It is specifically engineered for installations where fire safety and low smoke emissions are mandatory.

Key Features:

• Dual-Rated Versatility: Certified for both industrial electrical panel earthing and marine applications (DNV-GL).
• High Temperature Resilience: Rated for a maximum conductor temperature of 90°C.
• Maximum Fire Safety: Low Smoke Zero Halogen (LSZH) construction ensures non-propagation of flames and minimal corrosive gas emission.
• Enhanced Voltage Rating: 0.6/1kV rating provides superior insulation performance compared to standard 450/750V earth wires.
• Easy Installation: Class 5 flexible electrolytic annealed copper conductor allows for efficient routing in complex panel layouts.

Standards & Compliance:

• IEC 60092-353 (Design and construction).
• IEC 60332-1 & 60332-3-22 (Fire performance).
• IEC 60754-1 & 60754-2 (Halogen-free).
• DNV-GL / RoHS / CE.
