IP Enclosures

Thermostat for Fan NO 0/+60°C

SKU
$38.39 ex. GST $42.23 inc. GST
Min. order: 10
In stock
334 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Contacts 1NO
Product Datasheet PDF

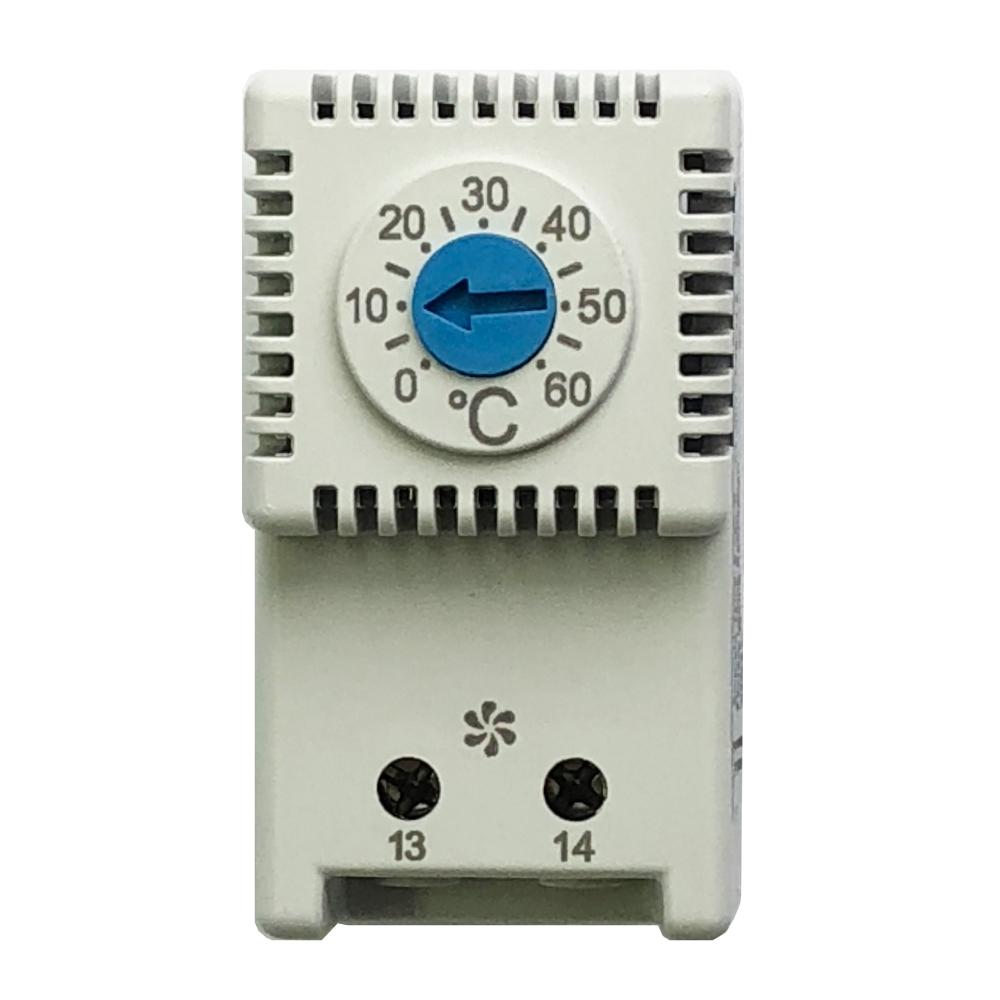

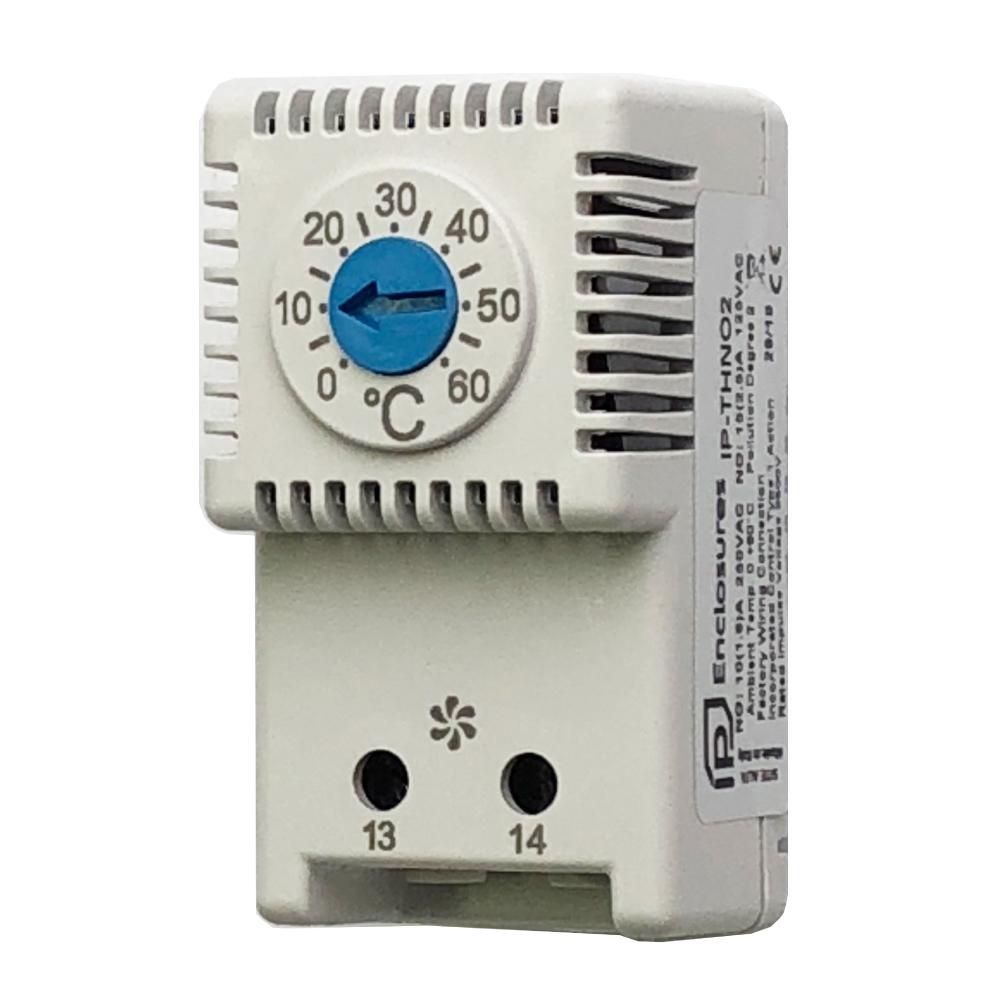

Thermostat for Fan NO 0/+60°C

High quality Italian compact thermostat for 35mm DIN rail mounting. Based on bimetallic junction, provides high capacity normally open contact. Suitable for controlling ventilation filter fan units.

Features Unit IP-THNO2
Contact function – NO
Temperature setting range °C 0/+60
Precision °C ±4
Hysteresis °C 7
Max.switching current –
250Vac resistive load (inductive load) A 10 (1.6)
125Vac resistive load (inductive load) A 15 (2.5)
Max. switching power in Vdc W 30
Temperature sensor type – Thermostatic bimetal
Contact type – Snap action
Contact resistance mOhm < 10
Service life cycles > 100 000
Electrical connections – 2-pole terminal for 2.5 mm² wire
Casing – PA6; UL self-estinguishing; light grey RAL 7035
Protection degree EN60529 – IP20
Operating temperature °C (°F) -25/+80 (-13/+176)
Storage Temperature °C (°F) -45/+80 (-49/+176)
Mounting – Clip for mounting on DIN rail 35 mm EN50022
Installation position – variable
Conformity – CE – UL cruus File n.E348803
Dimensions HxLxP mm 61x34x35
Weight g 48

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
