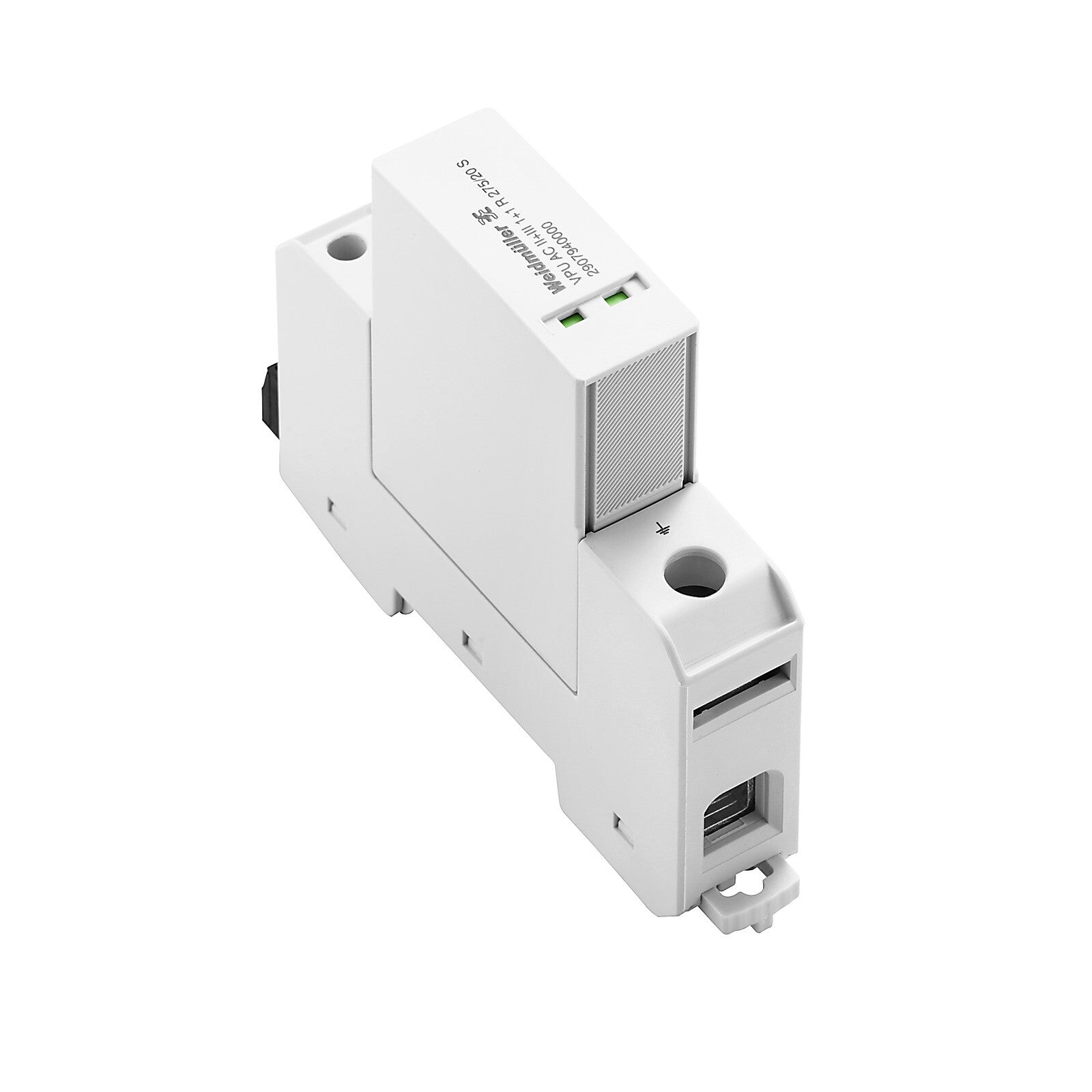

Type II+III Compact Surge Arrester, Single Phase + Neutral, Remote Contact, 275V 20kA - VPU AC II+III 1+1 R 275/20 S

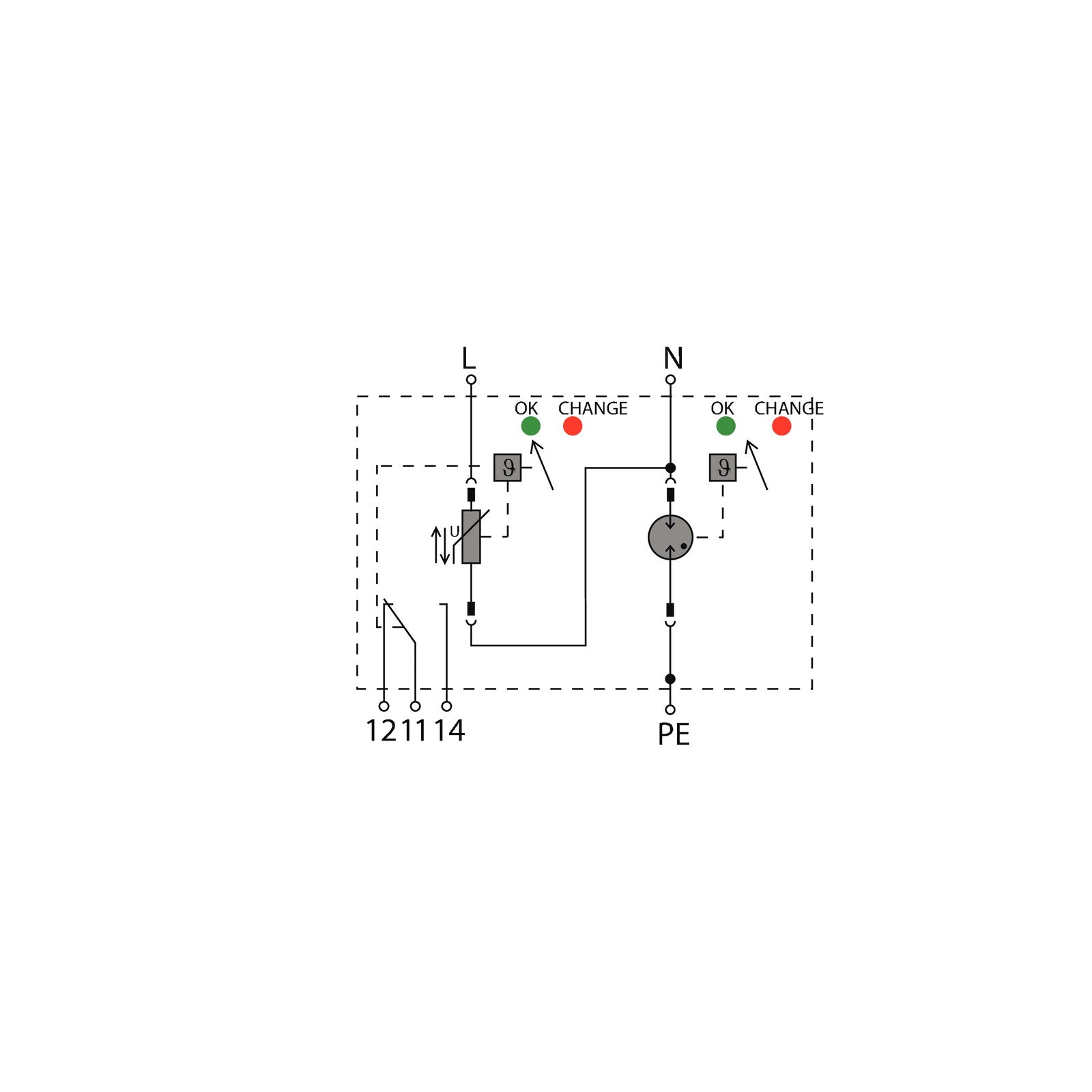

Weidmüller VPU AC II+III 1+1 R 275/20 S is a combined Type 2 and Type 3 surge arrester in a 1+1 circuit, meaning one varistor path from L to PE and a separate N-PE path, which makes it the single-phase choice for TN-S and TT systems. It occupies just one 18 mm module and has a remote signalling contact for fault reporting to a PLC or BMS. The protection module is pluggable, so a spent varistor cartridge can be swapped out without disturbing the wiring.

• Type / class: Type 2 and Type 3 combined, to IEC 61643-11 / EN 61643-11
• Circuit: 1+1, single-phase
• Number of poles: 2
• Network configuration: TN-S, TT, IT with N and IT without N
• Rated voltage: 230 V AC
• Max. continuous operating voltage Uc: 275 V AC
• Nominal discharge current In (8/20 µs): 10 kA L-PE, 20 kA N-PE
• Maximum discharge current Imax (8/20 µs): 20 kA L-PE, 40 kA N-PE
• Voltage protection level Up: ≤ 1 kV L-PE (Type 3), ≤ 1.5 kV N-PE
• Response time: ≤ 25 ns
• Remote signalling contact: Yes, 250 V / 0.5 A
• Protection modules: Pluggable and replaceable, with optical status display (grey = OK, red = arrester defective, replace)
• Width: 1 module (18 mm)
• Dimensions (W x H x D): 18 x 105 x 70 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20 in installed state
• Approvals: IEC 61643-11 / EN 61643-11, RoHS
