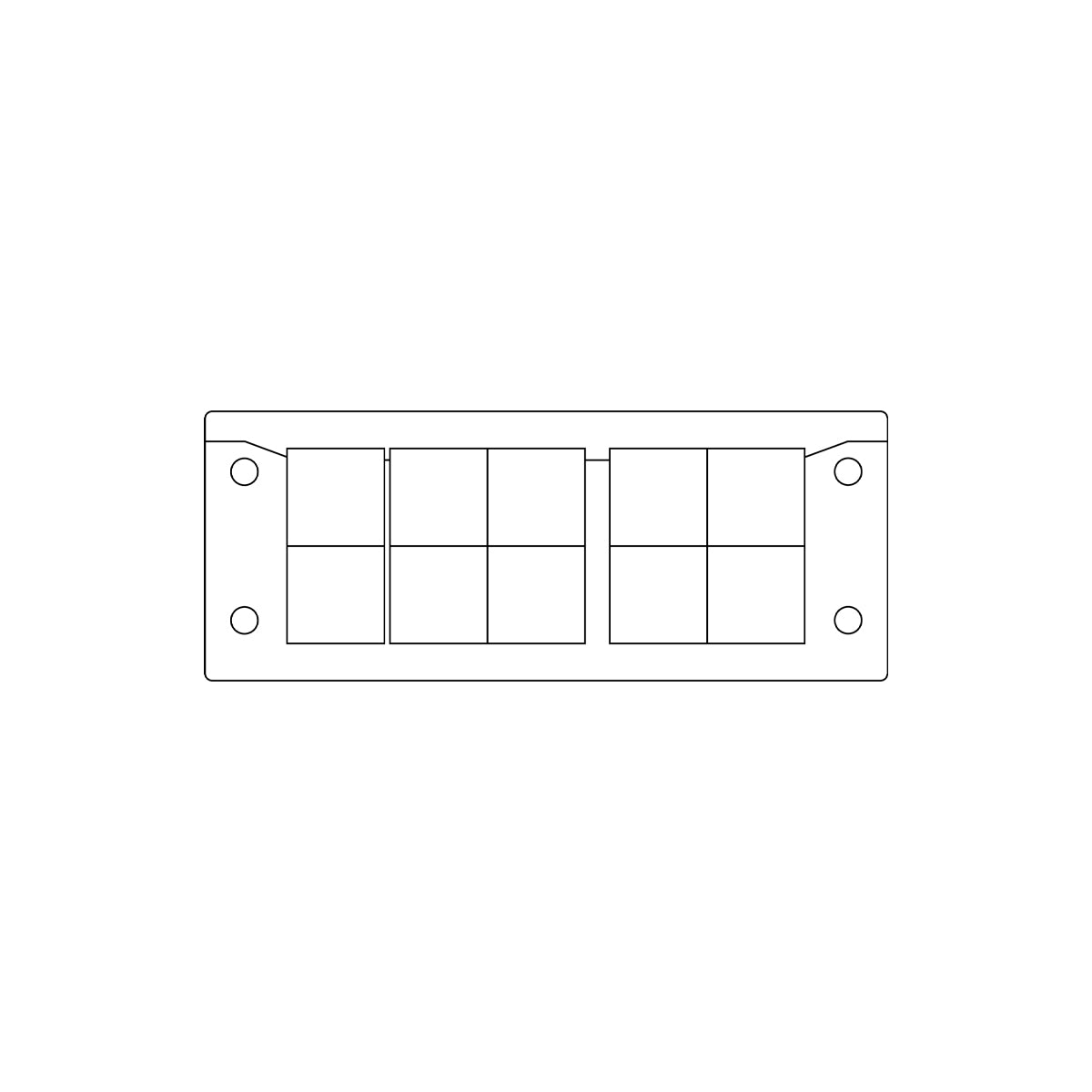

Split Cable Entry Frame IP54 for 10 Small Grommets - KEL-U 24|10

SKU
$29.18 ex. GST $32.10 inc. GST
In stock
454 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 58
  • Width (mm) 147
  • Depth (mm) 17
  • Material Polyamide
  • Colour RAL9005 Black
  • IP Rating IP54
  • Flammability Rating UL 94 V-0

Standards & certifications

IP54Dust-protected · splashing EN 60529Ingress protection UL 50EUS safety listed CEEU conformity ULUS safety listed IEC/EN 62444 Tested standards

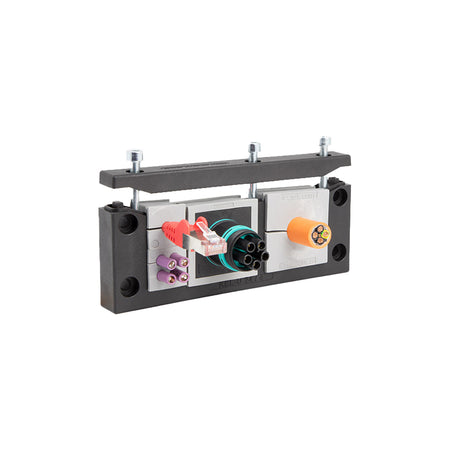

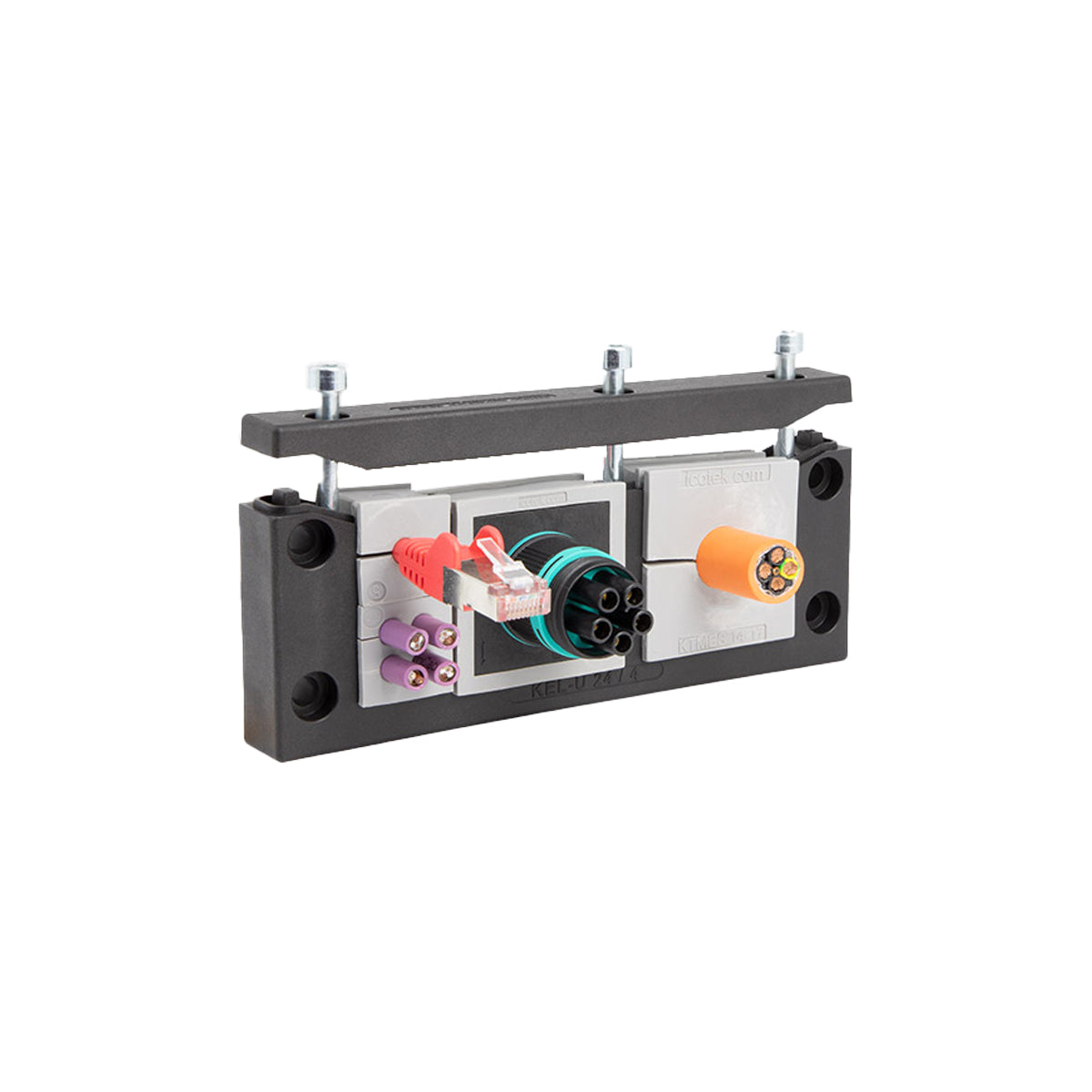

The icotek KEL-U 24|10 is a split cable entry frame for routing, sealing and providing strain relief to pre-terminated cables with connectors. Rated IP54 / UL Type 12, it accepts 10 x KT small cable grommets and matches the cut-out for a standard 24-pin industrial connector.

Series KEL-U 24|10
Protection Rating IP54 / UL Type 12 (NEMA 12)
Frame Material Polyamide
Screw Material Zinc-plated steel (V2A stainless variant available - 54241.2)
Colour Black
Dimensions (L x W x H) 147 x 58 x 17 mm
Cut-Out (L x W) 112 x 36 mm
Mounting Screw mounting, 4 screw holes; compatible with KEL-SNAP frame for tool-free mounting
Suitable Grommets 10 x KT Small cable grommets
Includes Flat rubber gasket
Standards cURus Listed, EN 45545-2, ECOLAB Certified, RoHS Compliant
Manufacturer P/N 54241
  • Tool-free assembly option via the KEL-SNAP mounting frame
  • Grommets clamp securely into the frame for a reliable IP54 seal around pre-terminated cables
  • Warranty on pre-terminated cables remains intact — no need to remove connectors for installation
  • High packing density — wide variety of compatible grommets and frame sizes
  • Includes flat rubber gasket for enclosure mounting
