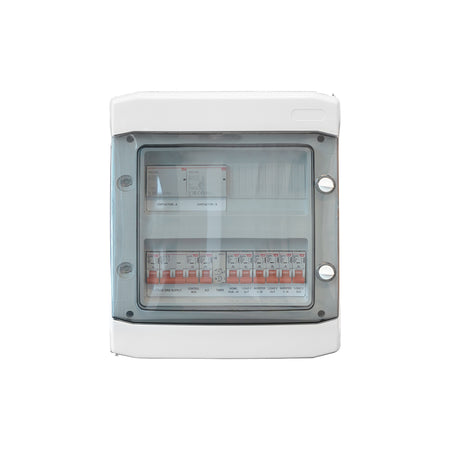

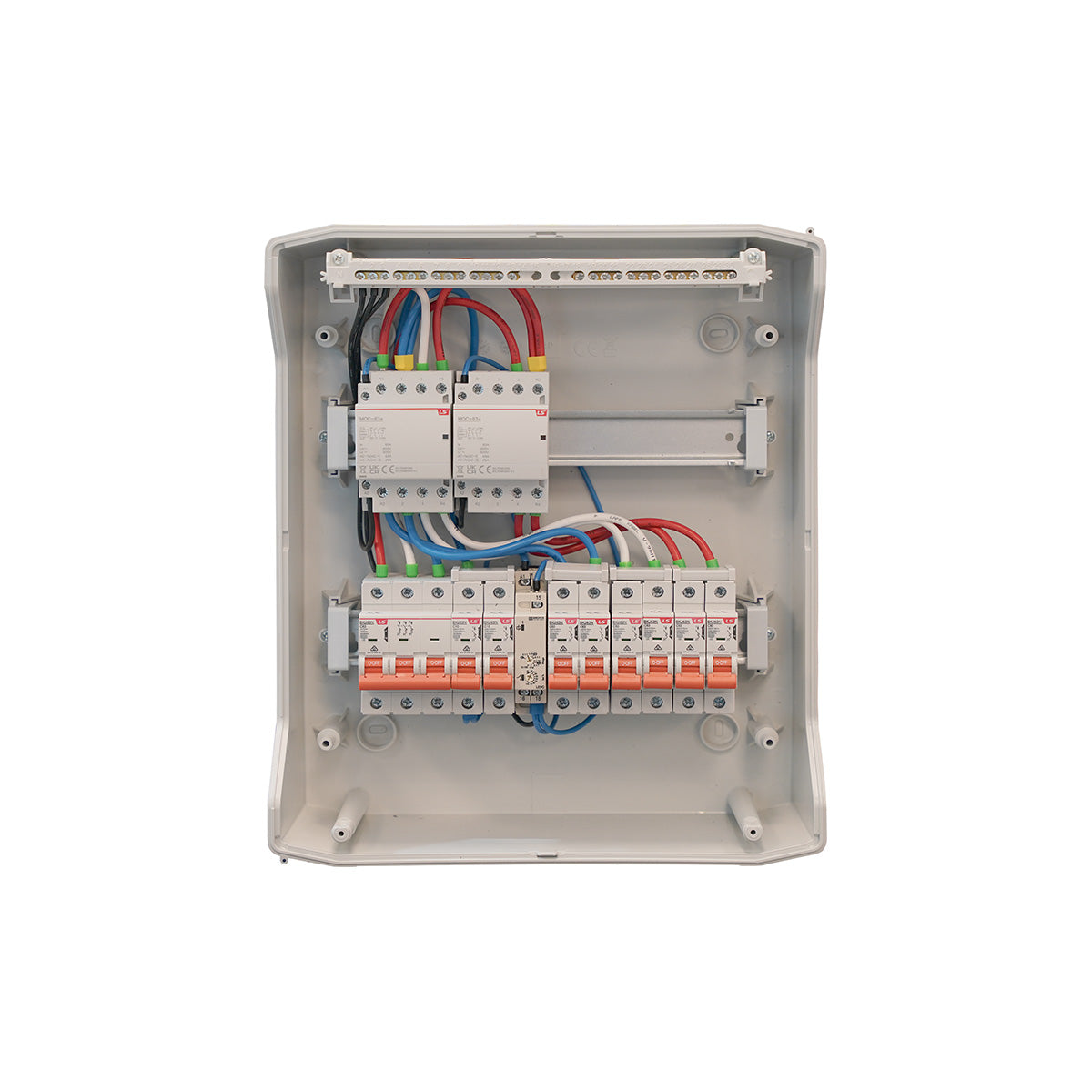

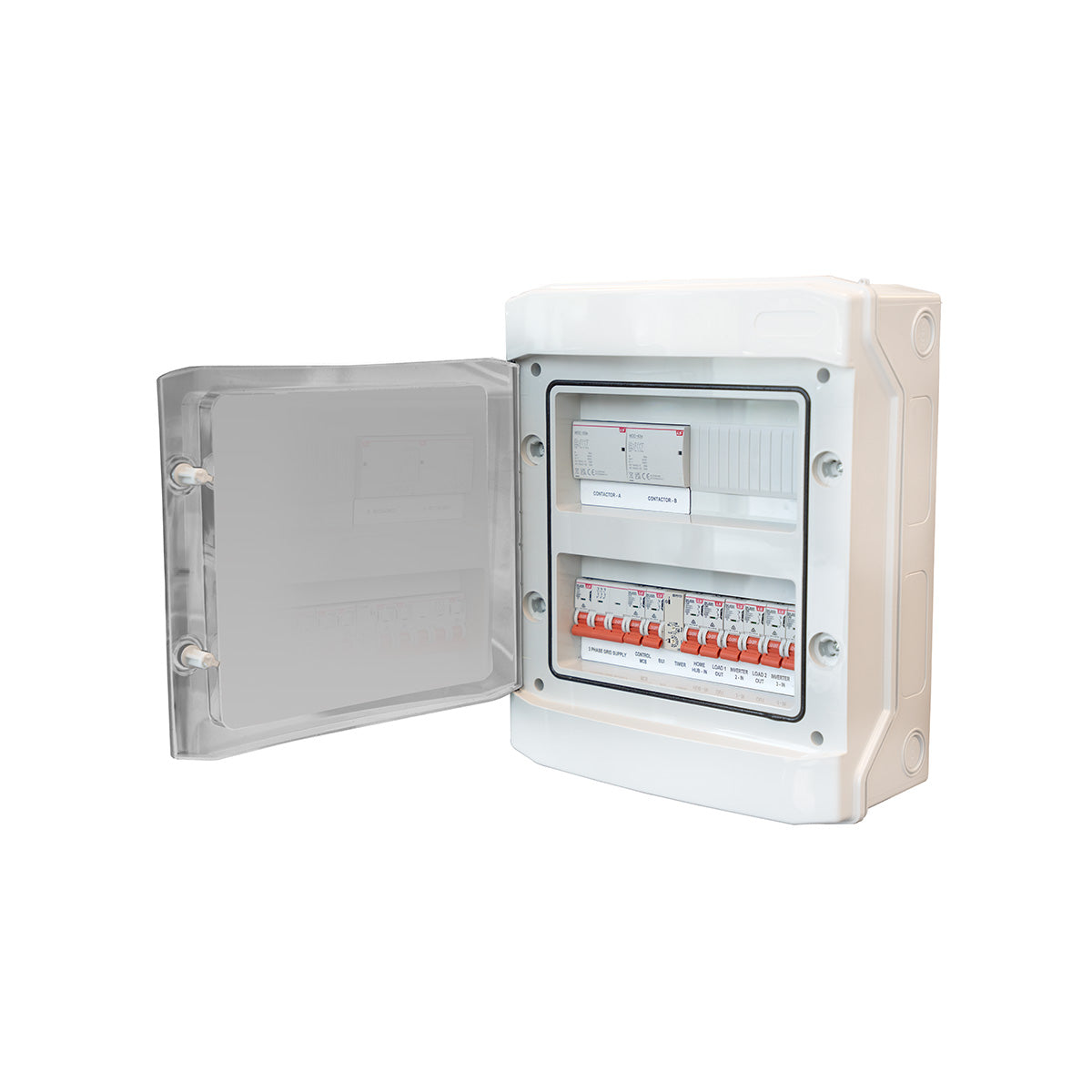

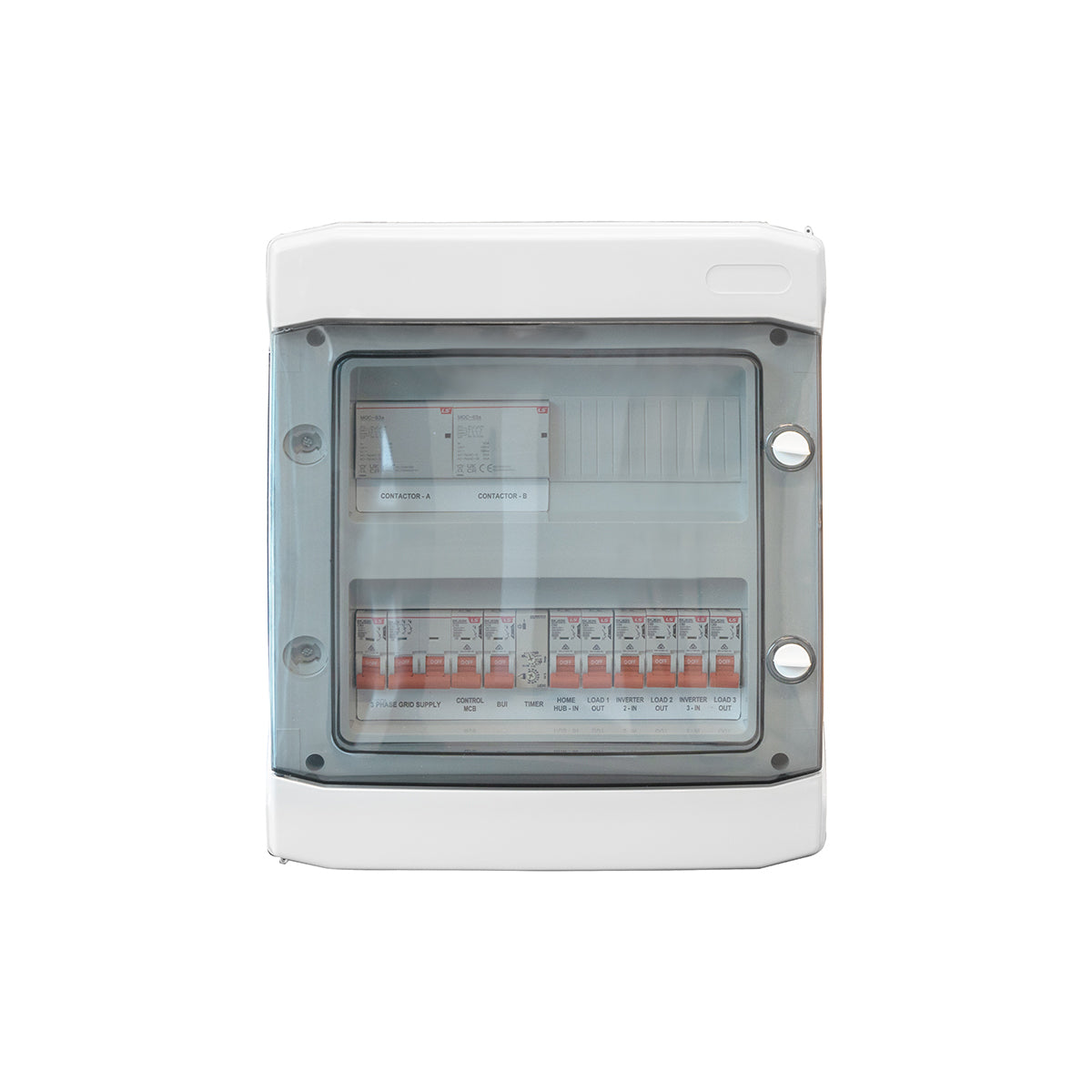

The Polyphase Backup Switchboard for SolarEdge has been designed by TROPAC in conjunction with SolarEdge Australia, it is designed to coordinate the single-phase loads of a property in the event of a grid failure.
Any 3Ph loads of the property are to remain wired upstream of this device. When the grid disconnects any 3ph loads of the property will lose AC supply and will de-energize.
In normal grid operation, the single-phase load supplied from the Polyphase Backup Switchboard for SolarEdge will operate in their normal phase synchronized arrangement.
When the grid fails, the Polyphase Backup Switchboard for SolarEdge will isolate itself from the grid supply.
The single-phase loads fed from the Polyphase Backup Switchboard for SolarEdge will also de-energize.
After approximately a 3-second delay, the SolarEdge Home Hub inverter, via the monitoring and control of the SolarEdge Backup Interface, will re-supply AC power as it will now re-energize in grid forming mode.
At this stage, all of the single-phase loads, and inverter connections, will be merged into a single-phase synchronization.
When the grid comes back on, the single-phase loads fed from Polyphase Backup Switchboard for SolarEdge disconnect for approximately 5 seconds before being automatically reconnect to the grid to ensure that each phase will self-synchronize back to its relevant phase.
