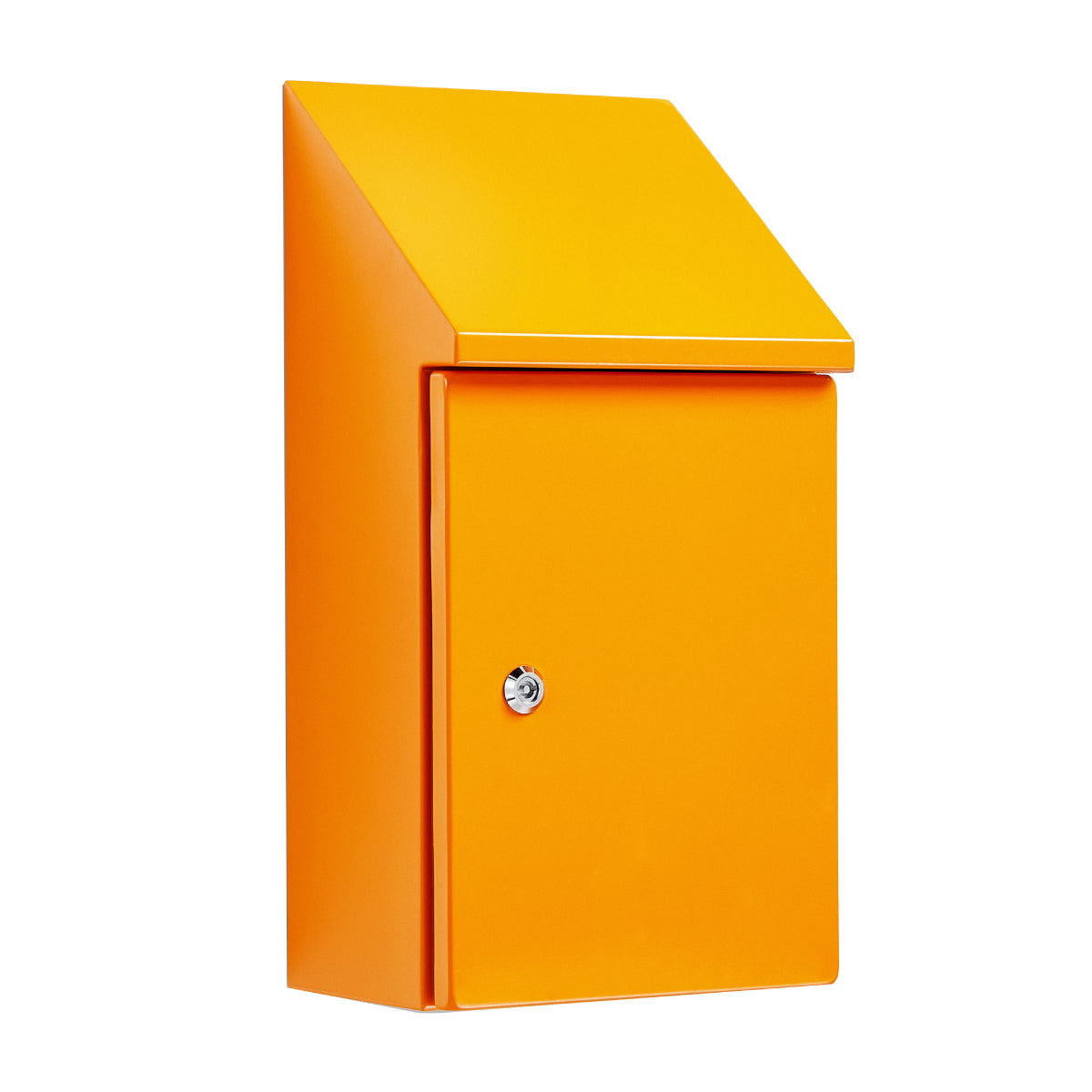

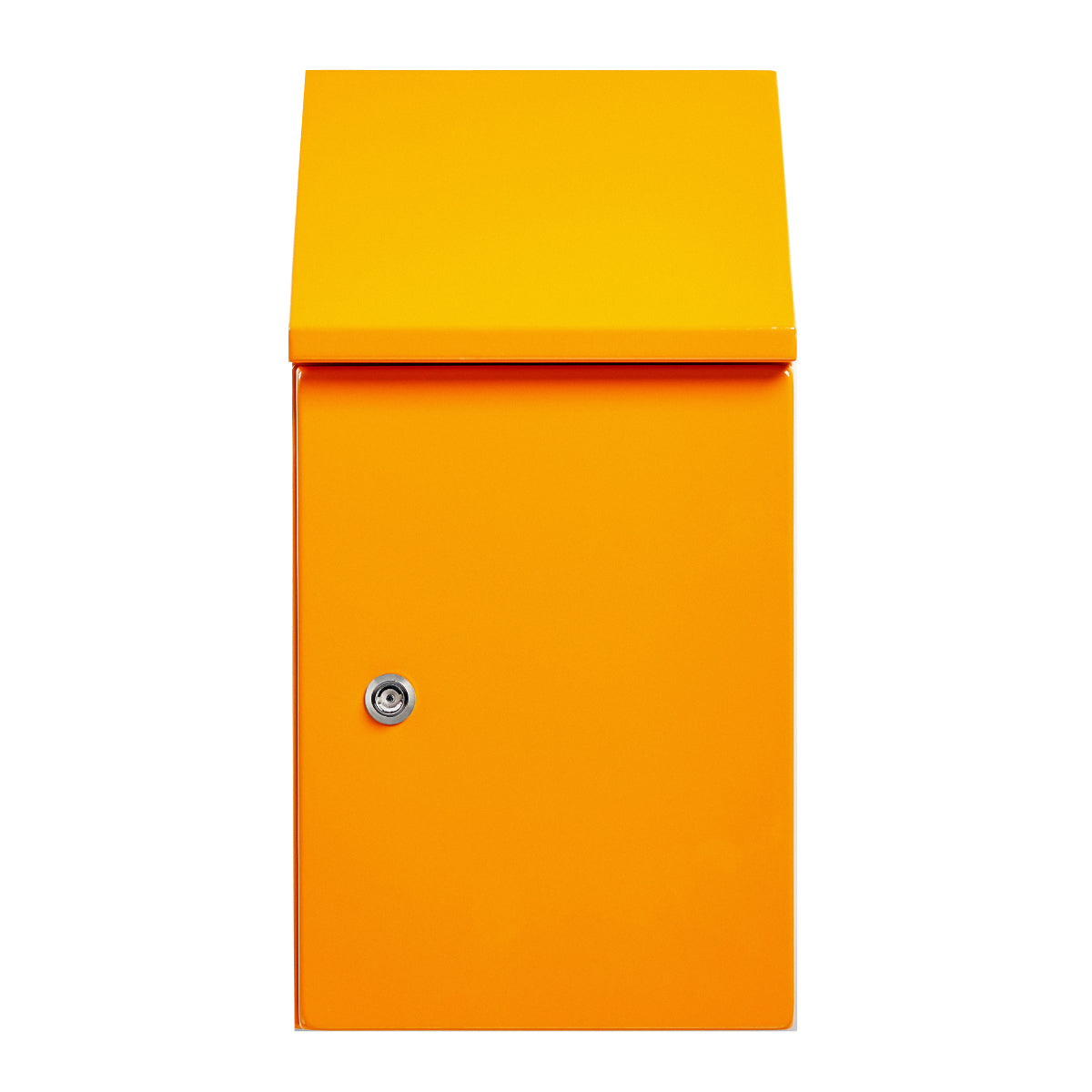

Sloping Roof Electrical Enclosure 400H x 300W x 200D IP66 Orange, Heavy Duty
IP Enclosures Heavy Duty Sloping Roof Electrical Enclosures are designed to house a variety of electrical switch and control equipment while preventing build-up of dust, debris and waste material in extreme environments.
_x000D_Features & Specifications
_x000D_Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).
_x000D_Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional), RoHS
_x000D_Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.
_x000D_Material:
_x000D_Body: 2.0 Galvanised Steel Sheet
Door: 2.0 Galvanised Steel Sheet
Device Mounting Plate: Galvanised steel sheet
Gland Plate: 2.0 Galvanised steel sheet
Seal: Polyurethane
Enclosure Body:
_x000D_The monoblock body with sloping roof is fabricated using 2.0mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting. The roof consists of a 38° sloped roof design that protrudes past pushbuttons for the mining industry. Integral device plate mounts and M6 earth stud is provided.

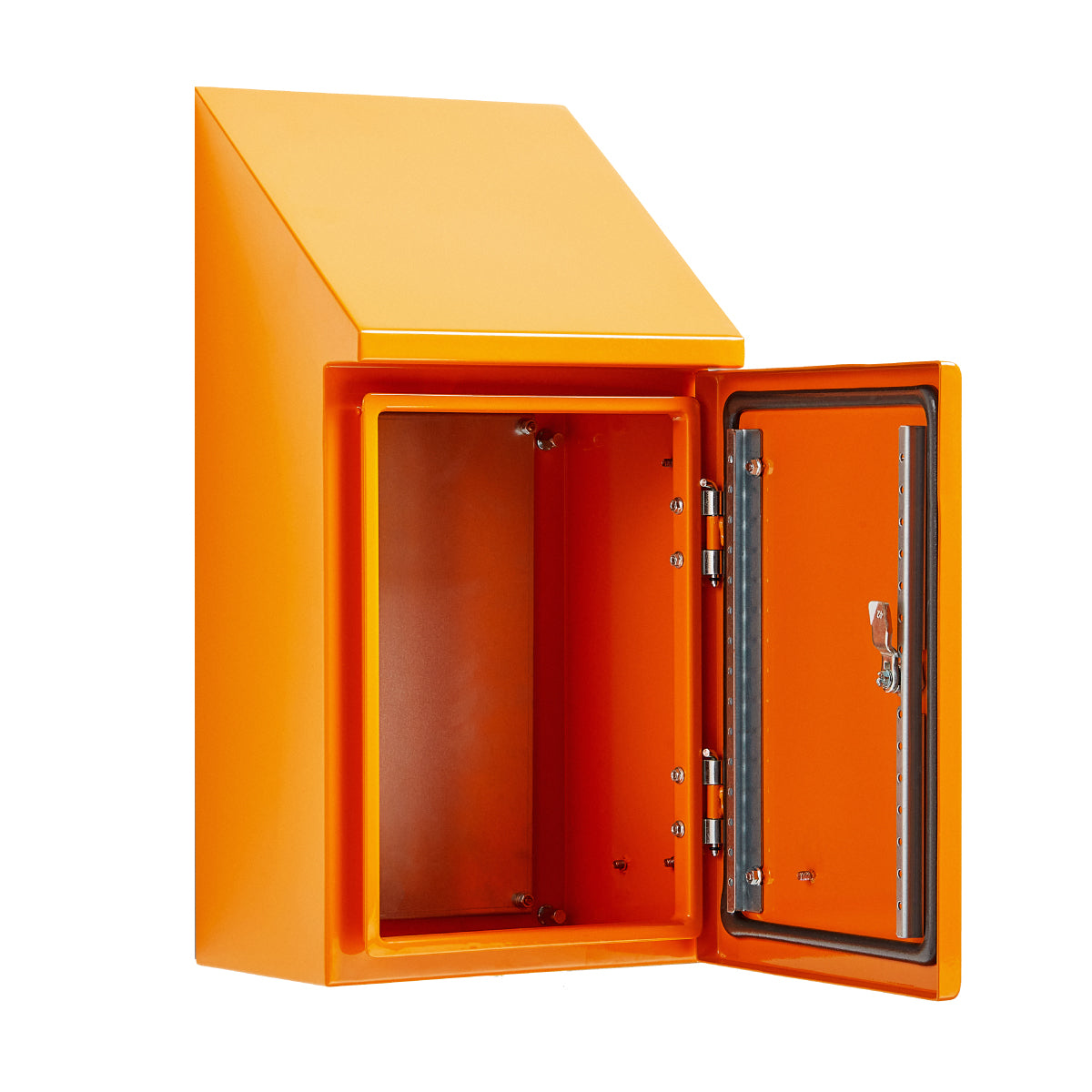

_x000D_Enclosure Door:

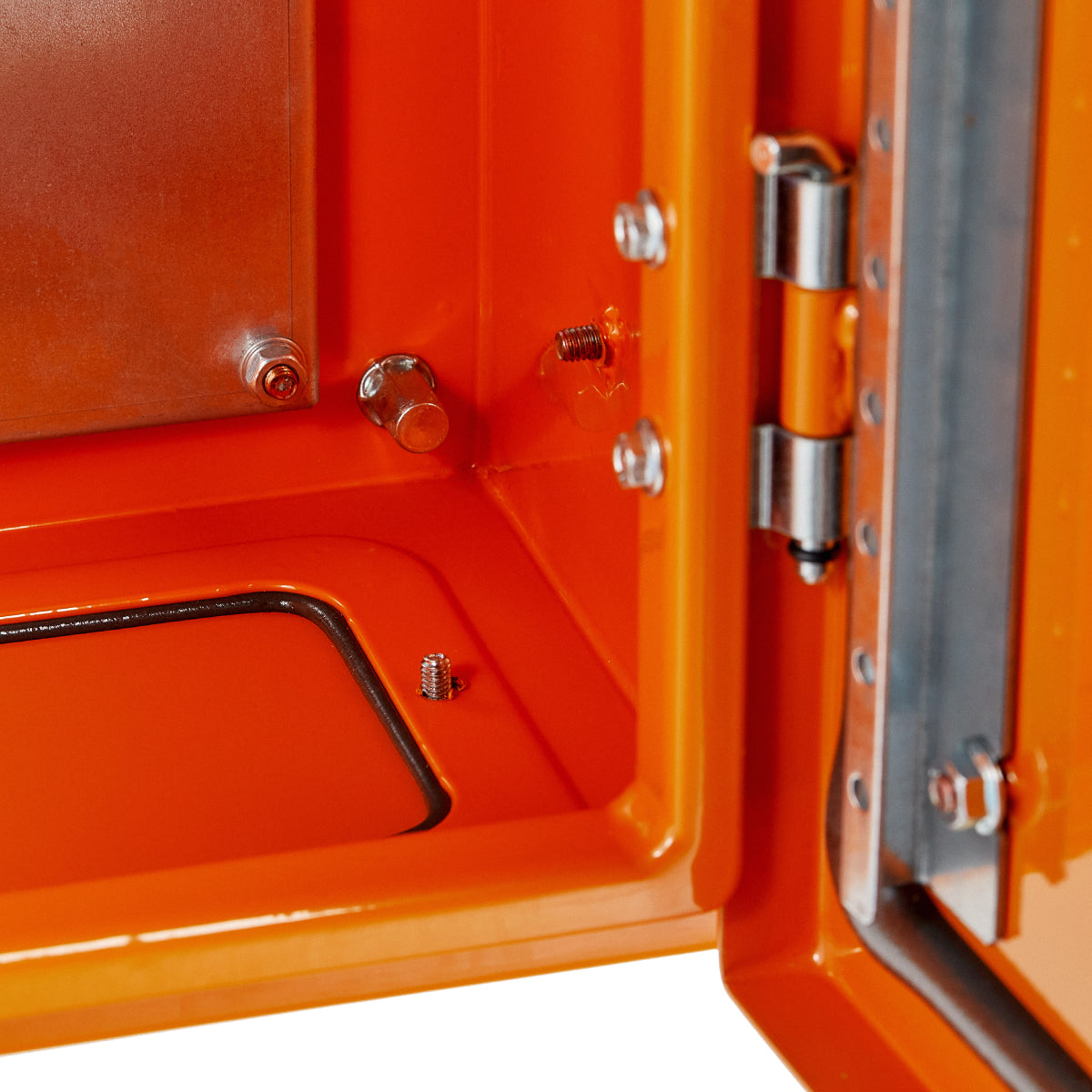

_x000D_The surface mounted door is fabricated using 2.0mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.
_x000D_Enclosure Seal:
_x000D_A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).
_x000D_Enclosure Lock:
_x000D_Chrome 5mm double bit insert quarter turn lock with key.

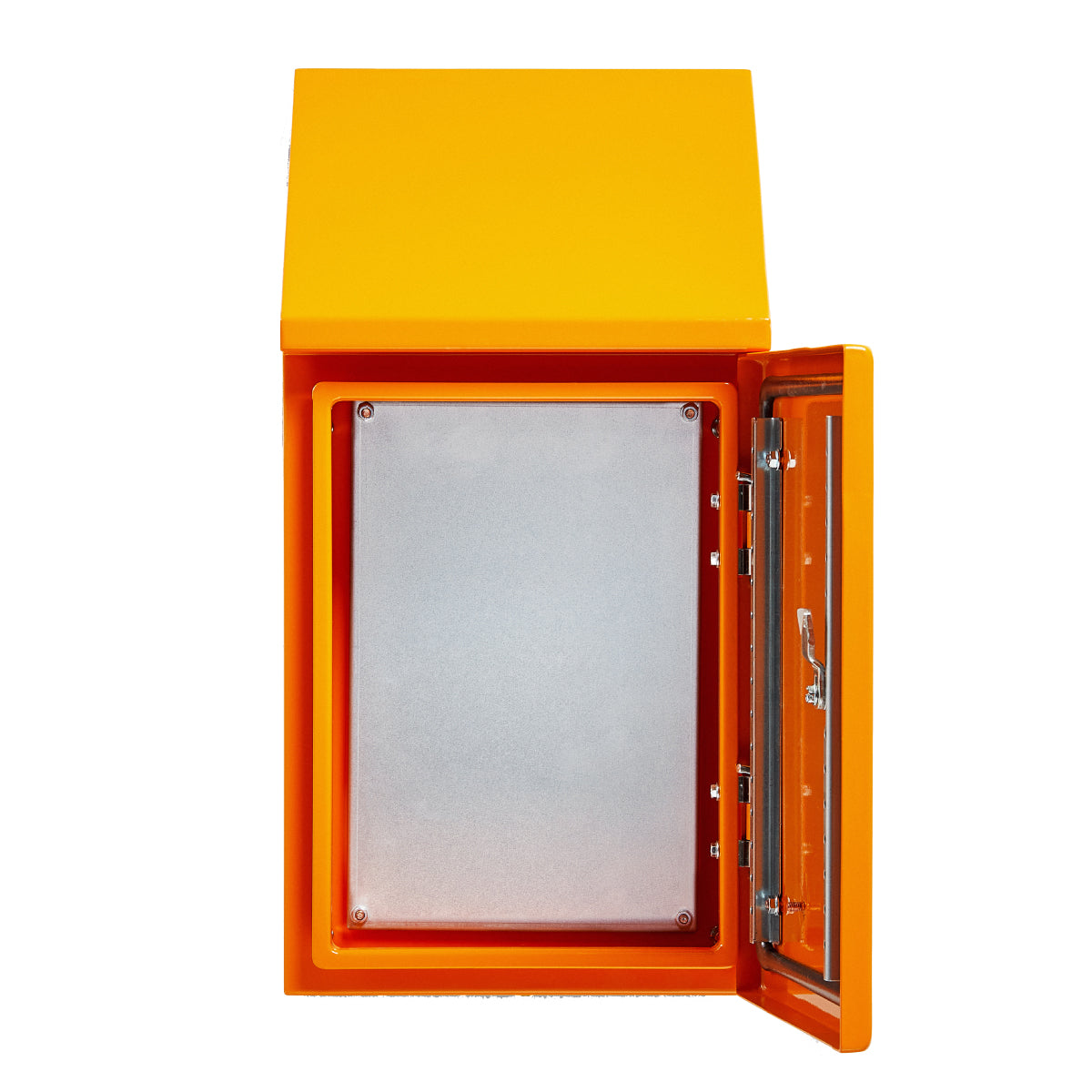

_x000D_Device Mounting Plate:
_x000D_The device mounting plate is galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.
_x000D_Gland Plate:
_x000D_Gland plates are incorporated into the bottom face of the enclosure for cable management. They are provided with gaskets and fasteners. The size and quantity vary according to enclosure size.
_x000D_Surface Treatment:
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL2000.
