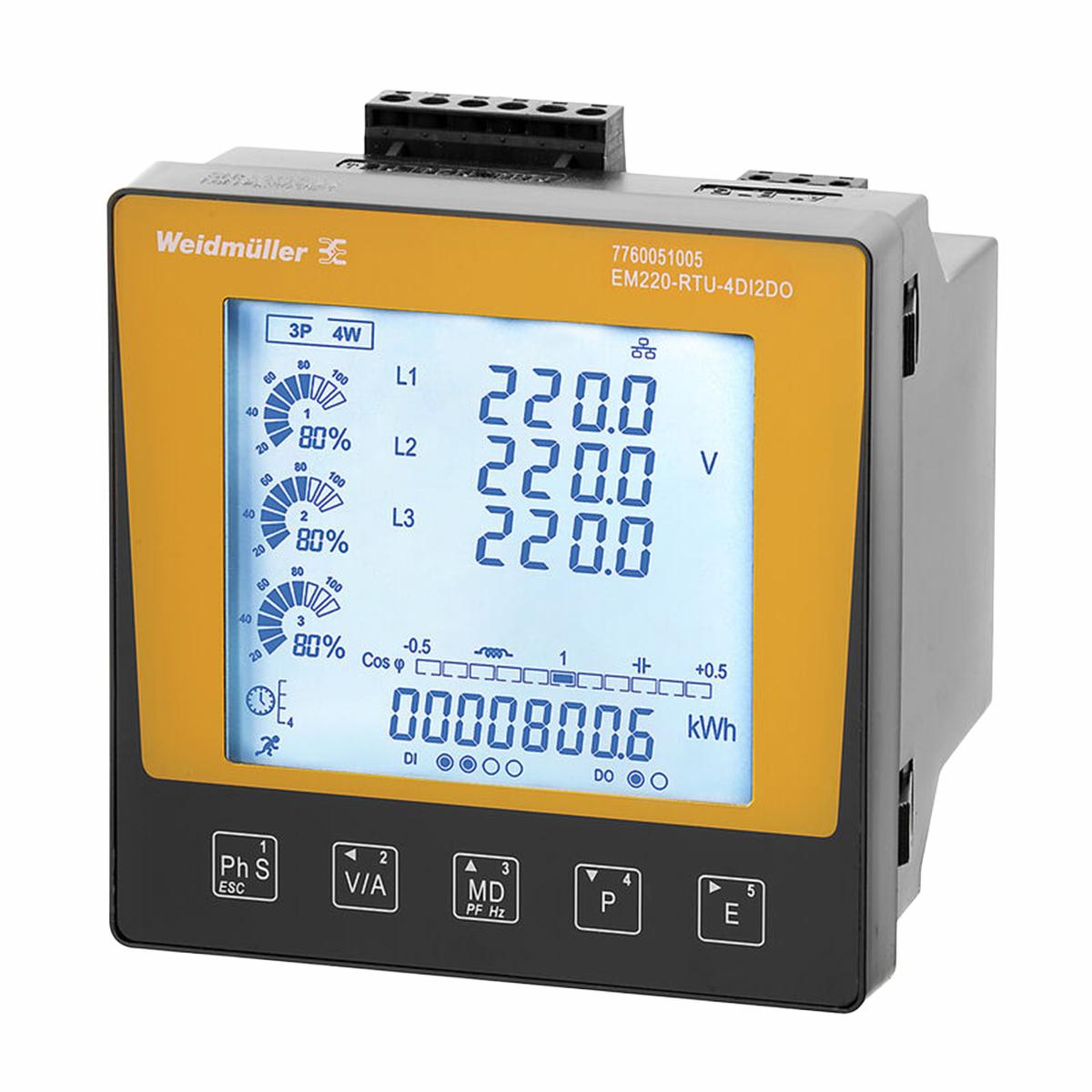

3-Phase Energy Meter with Modbus RTU, TCP/IP Gateway, 4DI/2DO
Ask an expert!
- IP Rating
The EM220-RTU-4DI2DO-GW is the gateway-enabled variant of Weidmüller's BasicLine energy meter, adding Modbus TCP/IP over Ethernet to the standard RS485 Modbus RTU capability — making it the preferred choice where network-based energy monitoring or IT/OT integration is required. Like the base model, it supports single-phase and three-phase measurement via CT connection up to 5000 A primary, with Class 0.5S accuracy and a full complement of 4 digital inputs and 2 digital outputs. The built-in gateway function means RS485 Modbus RTU devices downstream can be bridged onto an Ethernet network without additional hardware.

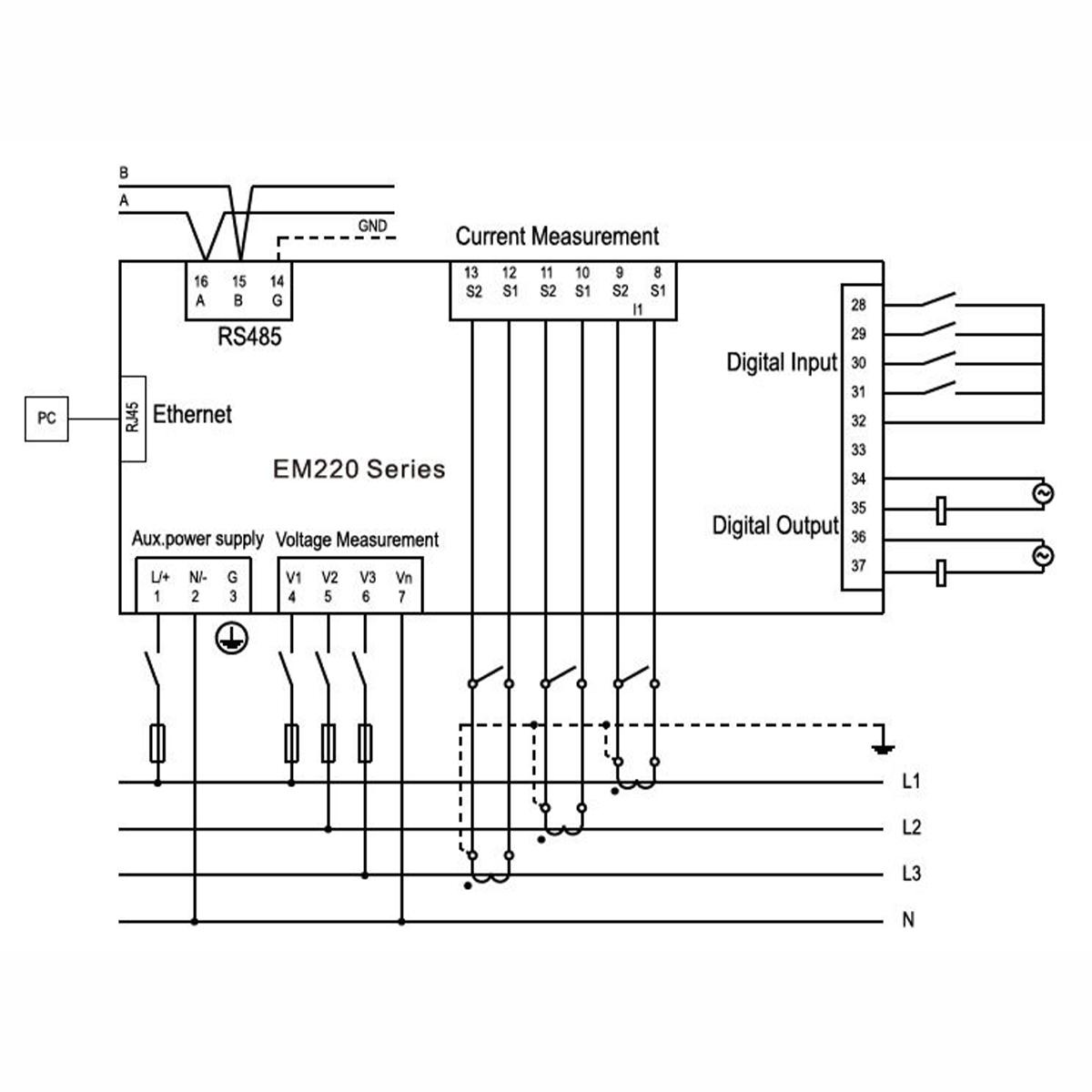

| Measurement Parameters | Voltage, current, active power, reactive power, apparent power, power factor, frequency, import/export active and reactive energy, total system power demand |
|---|---|
| Network Configuration | 1-phase 2-wire (L+N, L1+L2), 3-phase 3-wire (L1+L2+L3), 3-phase 4-wire (L1+L2+L3+N) |
| Voltage Measurement Range | 50–600 V AC (L-L) / 50–345 V AC (L-N) |
| Current Input | CT secondary 1 A or 5 A — supports up to 5000 A primary |
| Measurement Accuracy | Voltage 0.5% / Current 0.5% / Active energy Class 0.5S (IEC 62053-22), Class 0.5 (IEC 61557-12) |
| Communication Interfaces | RS485 (Modbus RTU) + Ethernet (Modbus TCP/IP Port 502 + Modbus Gateway) |
| Protocols | Modbus RTU, Modbus TCP/IP, Modbus Gateway, IEC 61850 Ethernet |
| Digital I/O | 4 digital inputs, 2 configurable digital outputs, pulse output |

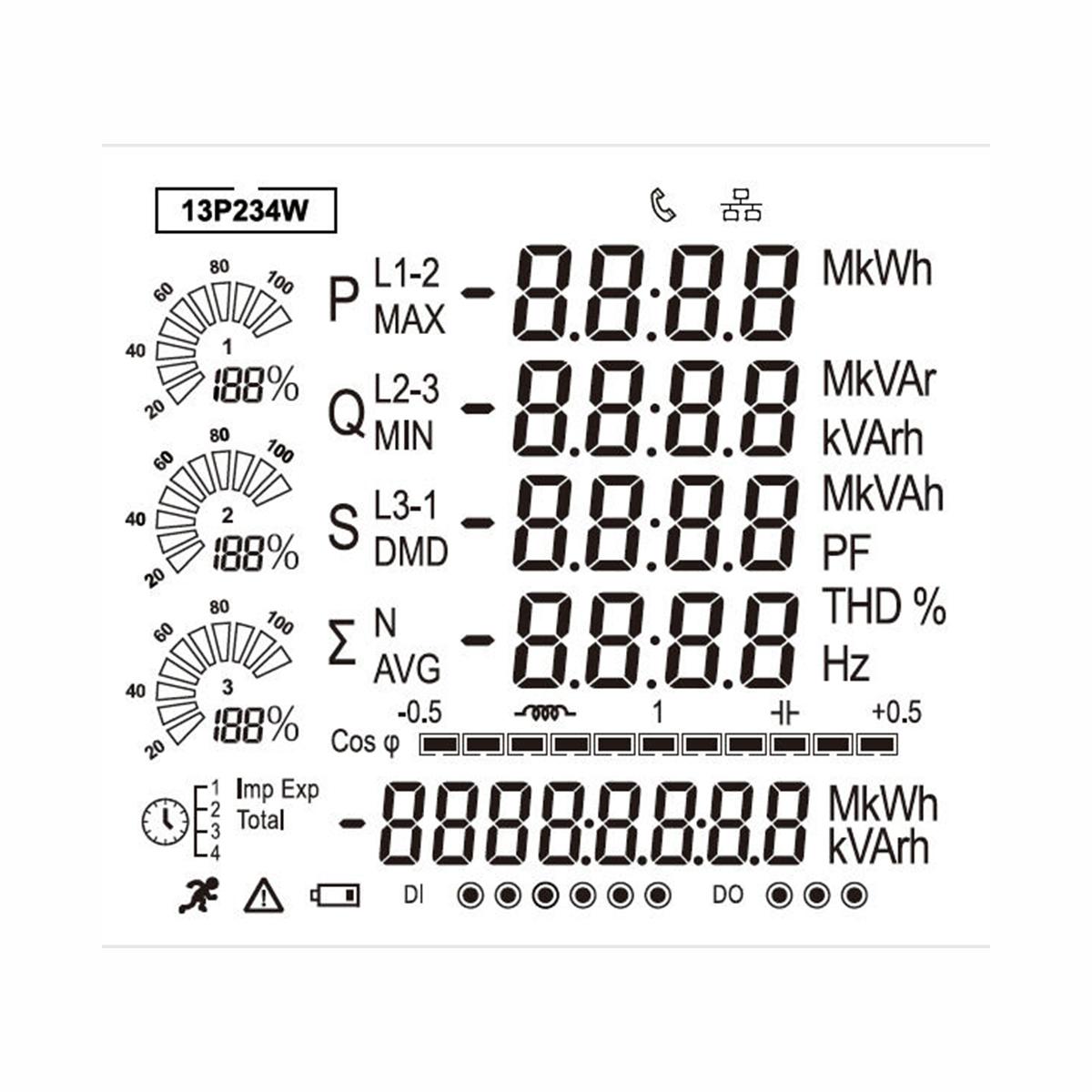

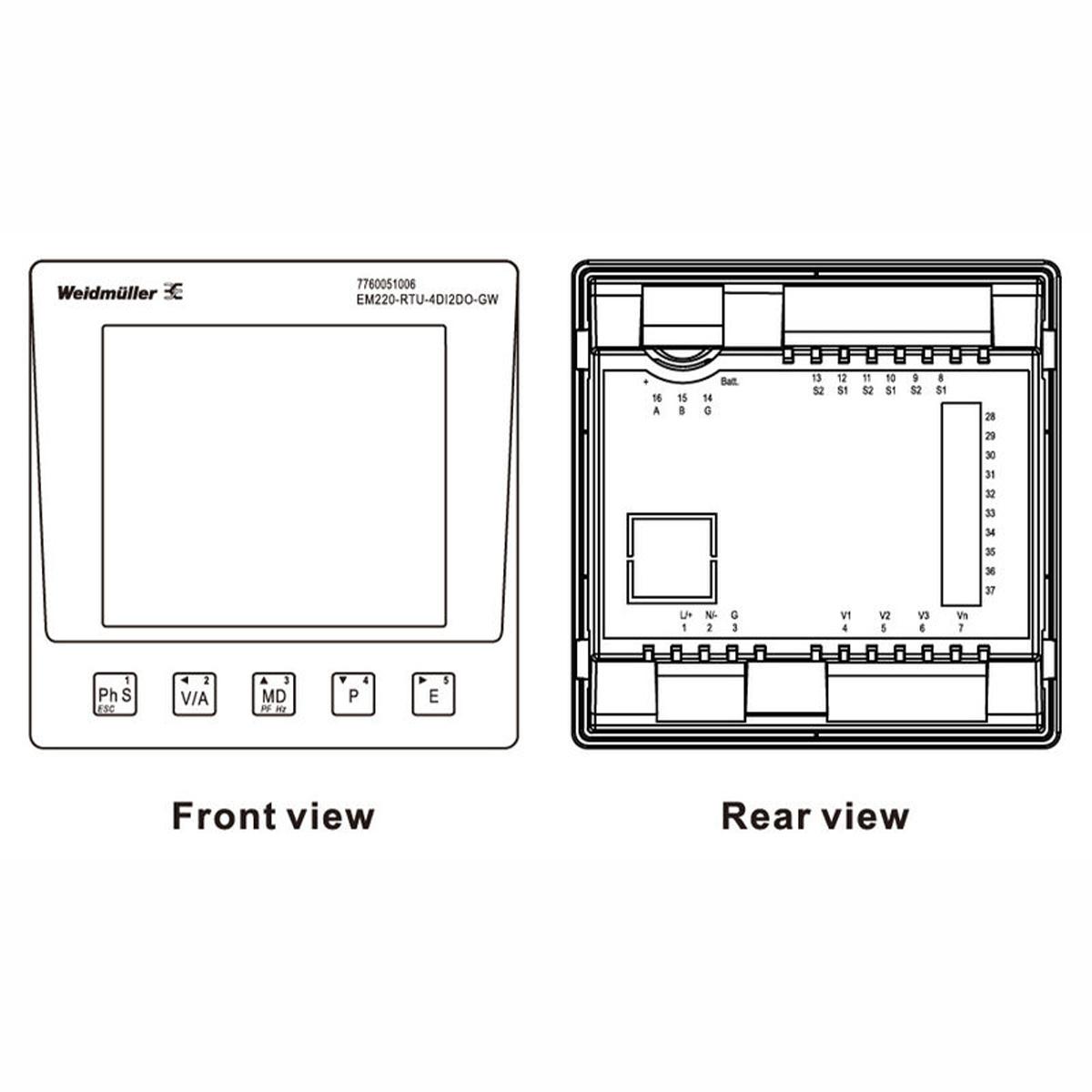

| Display | LCD — all measured parameters accessible on-unit |
| Update Rate | 1 second |
| Supply Voltage | 75–270 V AC / 100–380 V DC |
| Frequency Range | 45–65 Hz |
| Protection Degree | Front panel IP51 / Rear IP20 |
| Mounting | Front panel mount (DIN rail adapter available — EM220 BRACKET, 3068970000) |

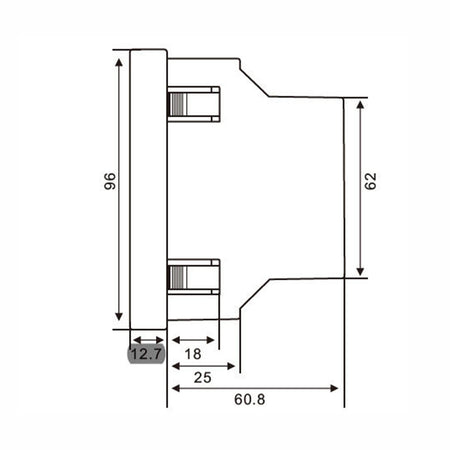

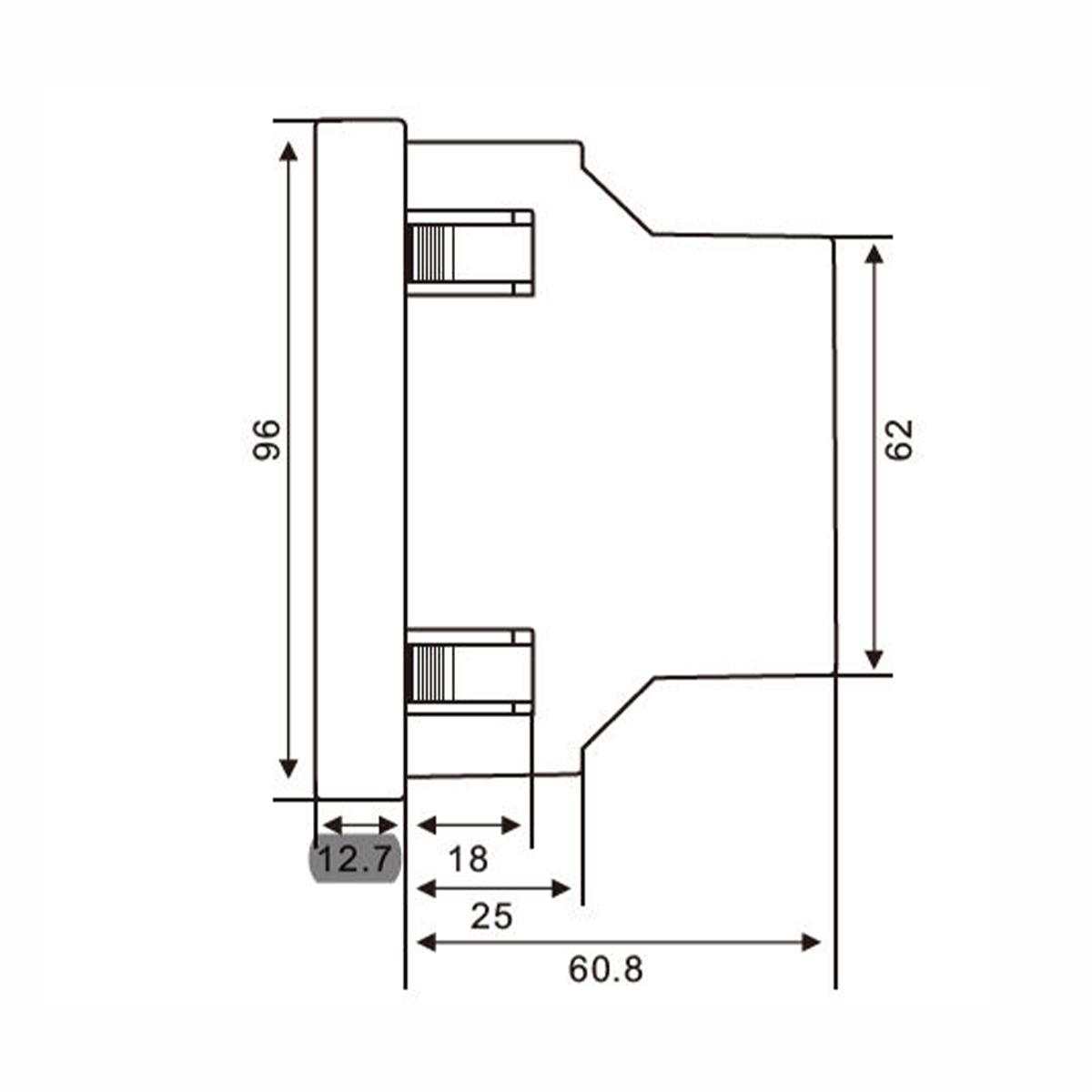

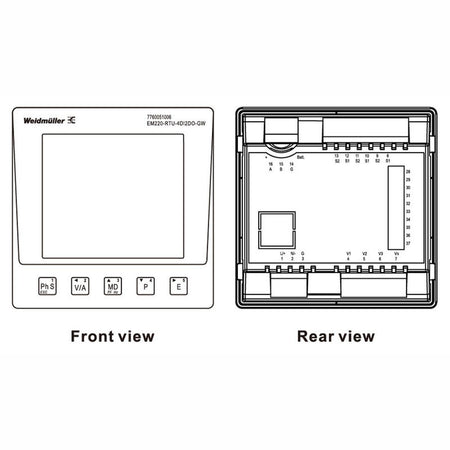

| Dimensions (H × W × D) | 96 × 96 × 74 mm |
| Weight | 380 g |
| Operating Temperature | -25 °C to +55 °C |
| Housing Material | Plastic |
| Connection | Screw terminal — 0.5–2.5 mm² solid or stranded |
| Compliance | RoHS compliant (with exemption 7a, 7cI) |
| Part Number | 7760051006 |
- Dual-protocol communication — Modbus RTU over RS485 and Modbus TCP/IP over Ethernet in a single unit, eliminating the need for a separate protocol converter
- Built-in Modbus Gateway function bridges existing RS485 devices onto the Ethernet network, simplifying mixed-protocol installations
- Class 0.5S active energy accuracy per IEC 62053-22 — suitable for utility-grade sub-metering and billing-quality energy data
- CT connection supports primary currents up to 5000 A with standard 1 A or 5 A secondaries
- 96 × 96 mm front-panel form factor compatible with standard switchboard cutouts — DIN rail bracket also available (3068970000)
