Remote I/O module, Analog signals, Temperature, TC - UR20-4AI-TC-DIAG

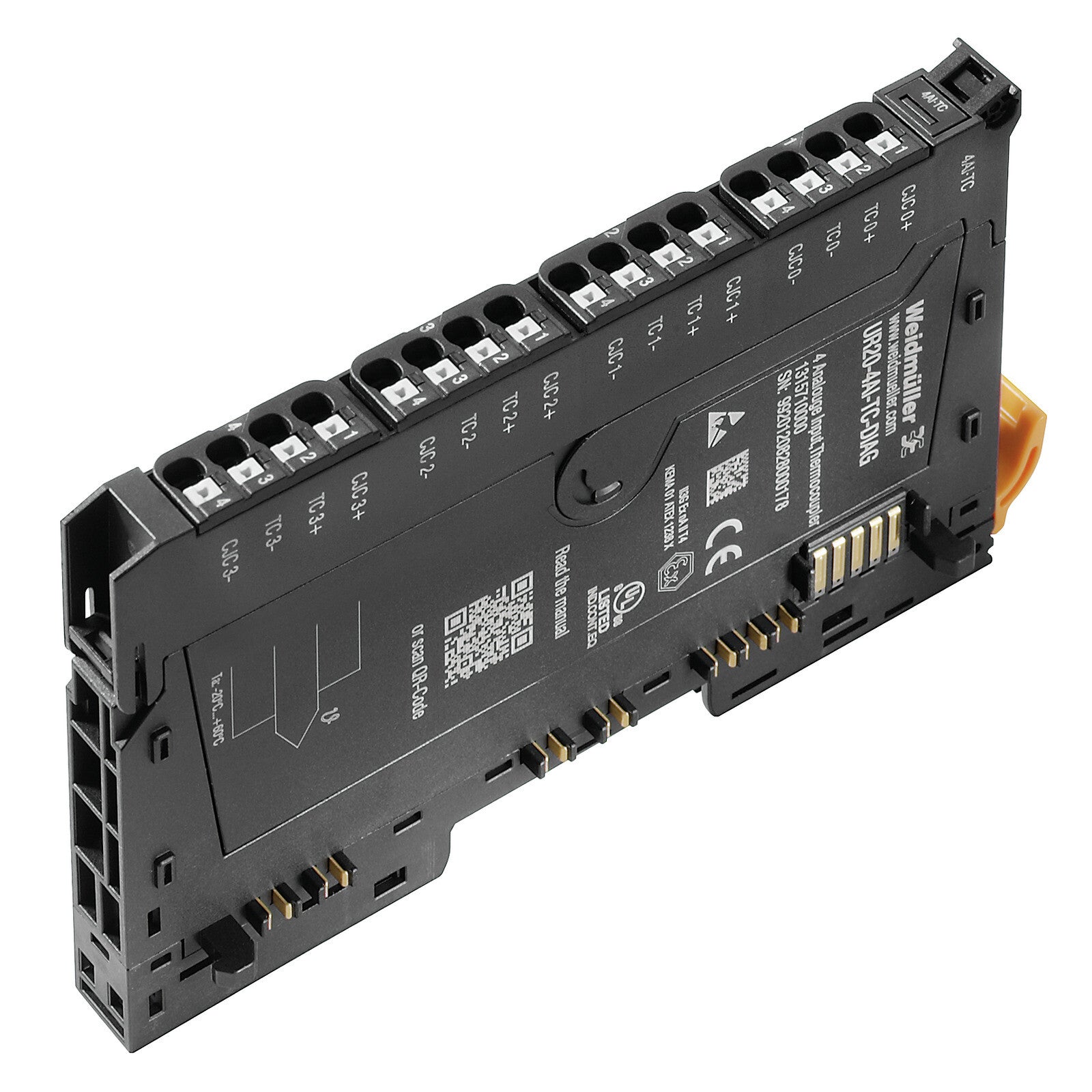

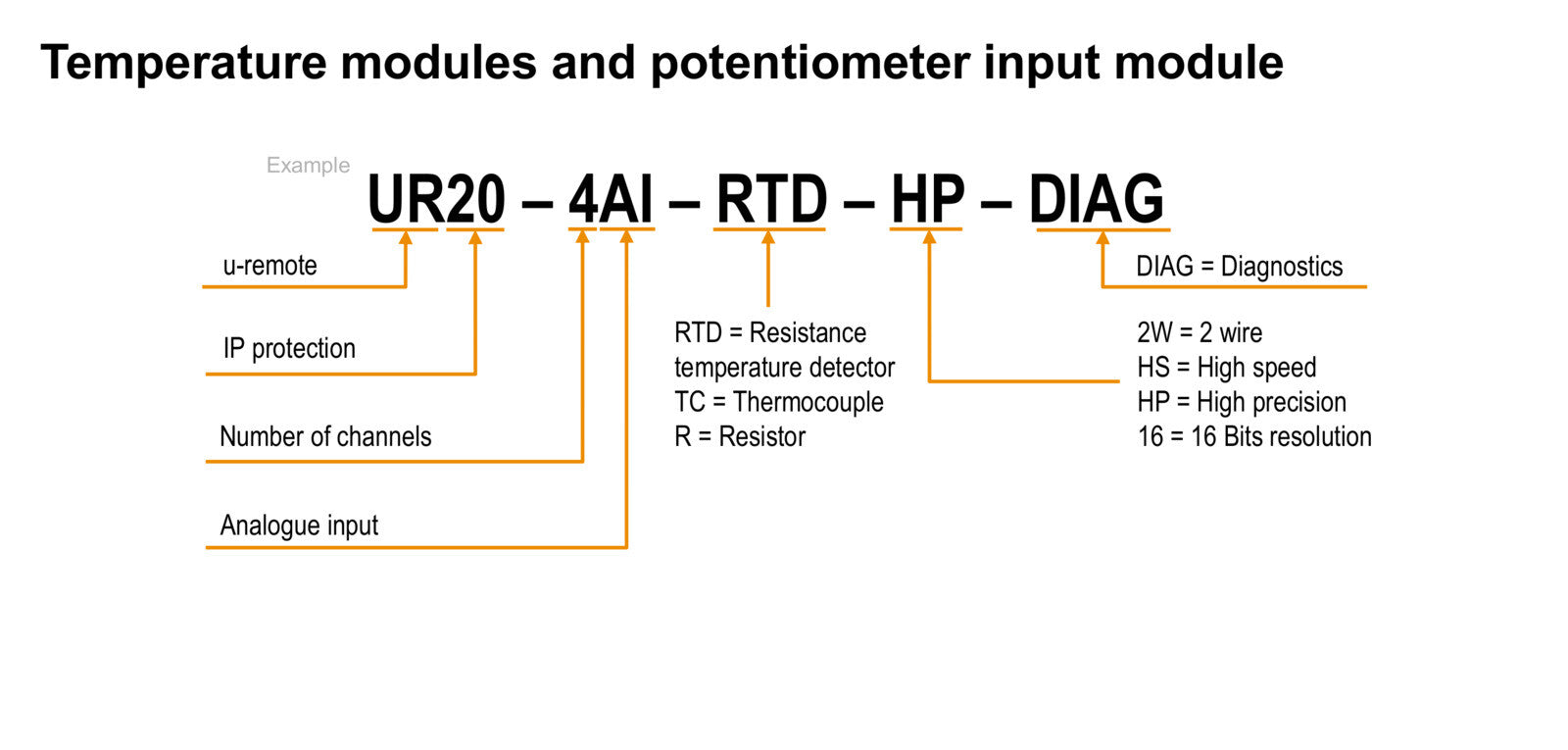

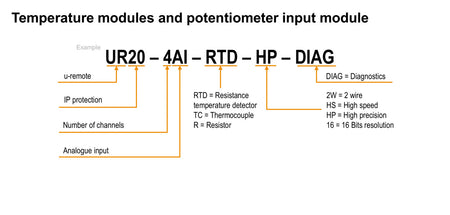

Weidmüller UR20-4AI-TC-DIAG is a four-channel thermocouple input module for the u-remote system, covering types J, K, T, B, N, E, R, S, L, U and C plus a direct mV range, at 16 bit resolution and 0.2 % FSR accuracy. DIAG provides per-channel diagnosis, which on a thermocouple card is the practical way to spot an open sensor or broken compensating cable on a single measuring point. Conversion time is parameterisable between 36 ms and 240 ms, letting you trade measurement speed against mains-frequency noise rejection.

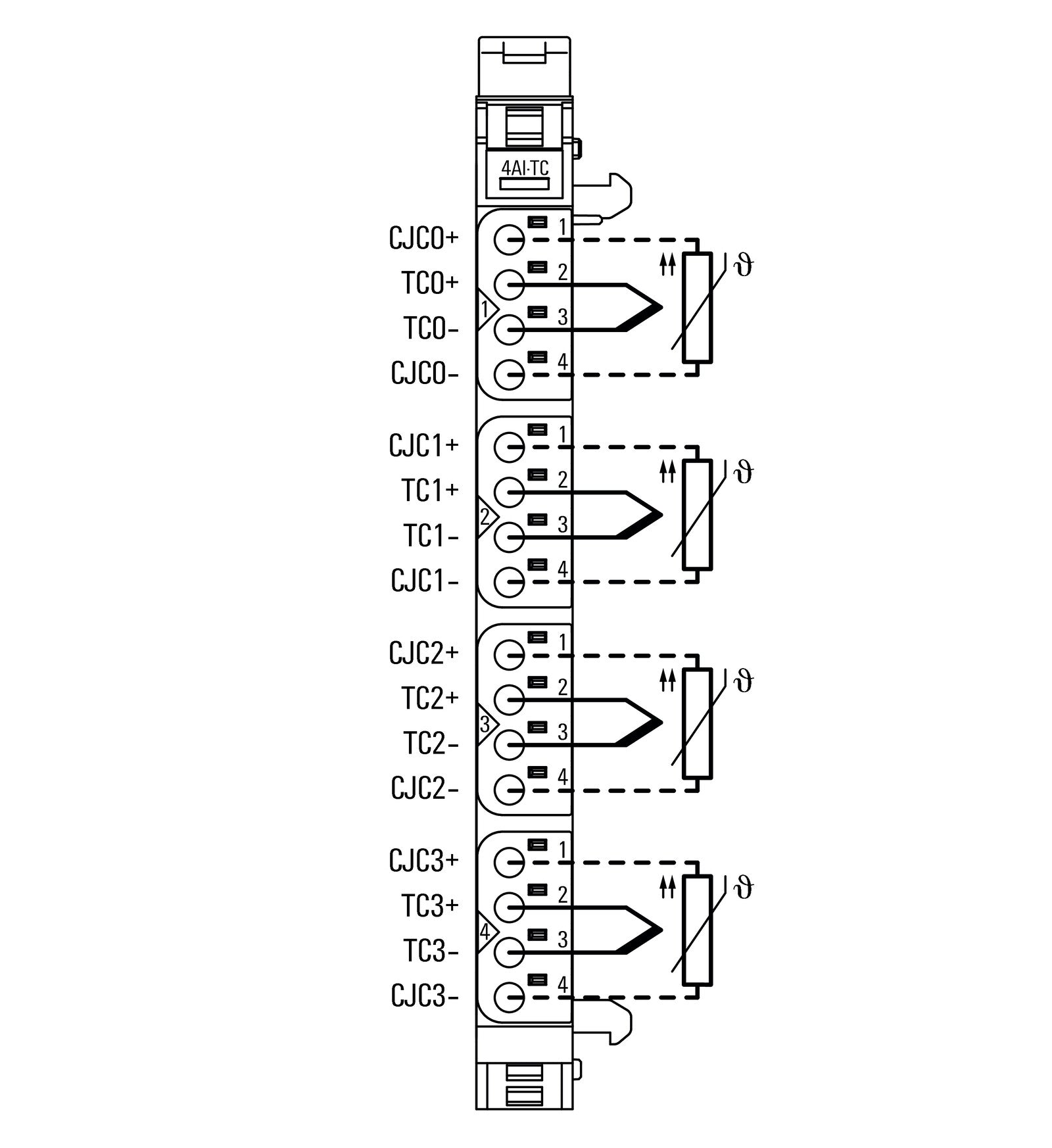

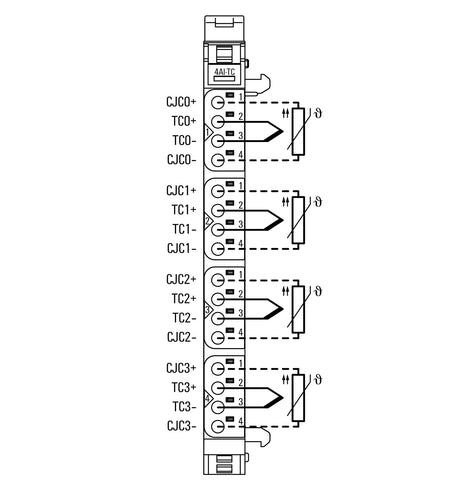

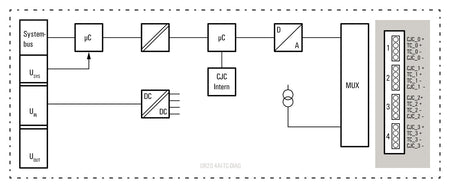

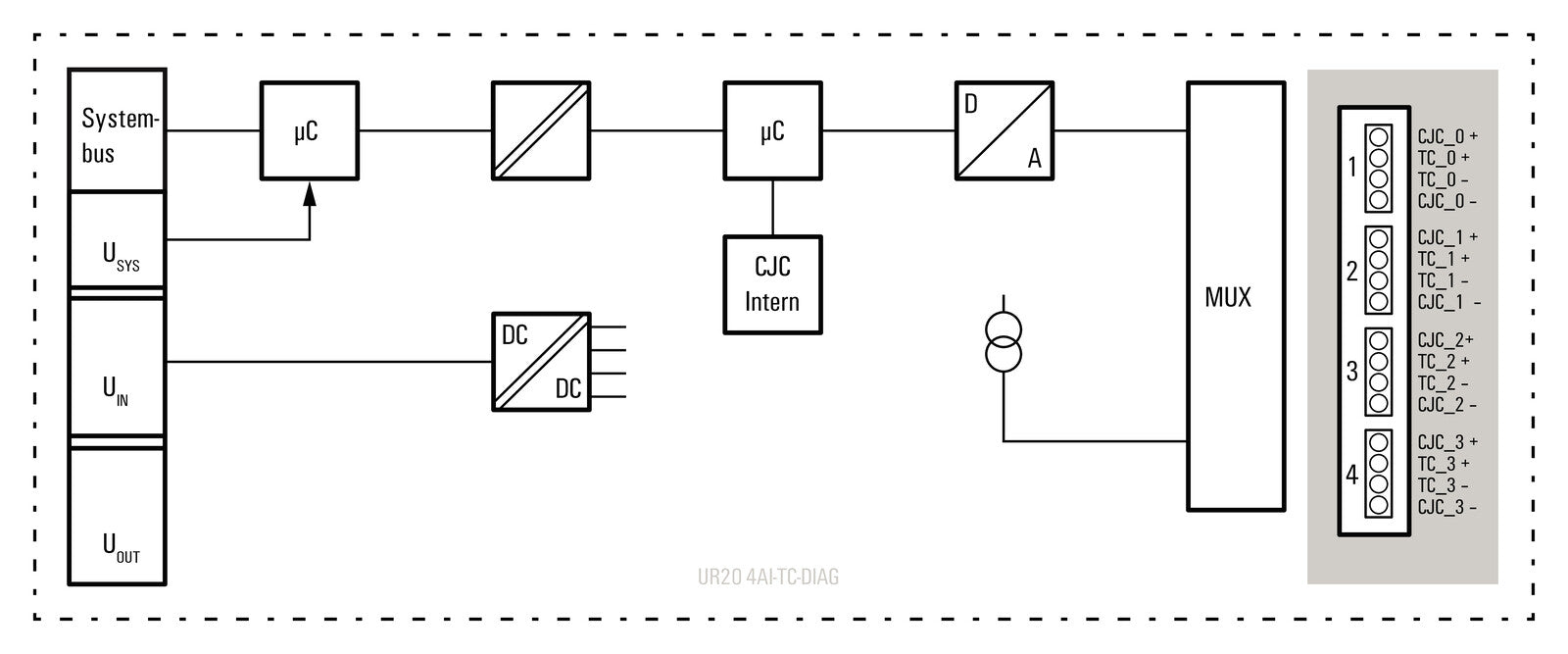

• Channels: 4 analogue inputs
• Signal range: Thermocouple types J, K, T, B, N, E, R, S, L, U, C and mV
• Resolution: 16 bit
• Accuracy: 0.2 % FSR
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typ. from the system bus; <20 mA from the input segment
• Isolation: 500 V DC between the current paths
• Connection: PUSH IN, 0.14 mm² to 1.5 mm²
• Conversion time: Adjustable 36 ms to 240 ms
• Diagnostics: Individual channel diagnosis and module diagnosis; status LED at the top of the module
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 11.5 x 120 x 76 mm (128 mm high with the lever)
• Protection degree: IP20
• Approvals: RoHS, UL E141197 (cULus), E223527 (cULusEX)
