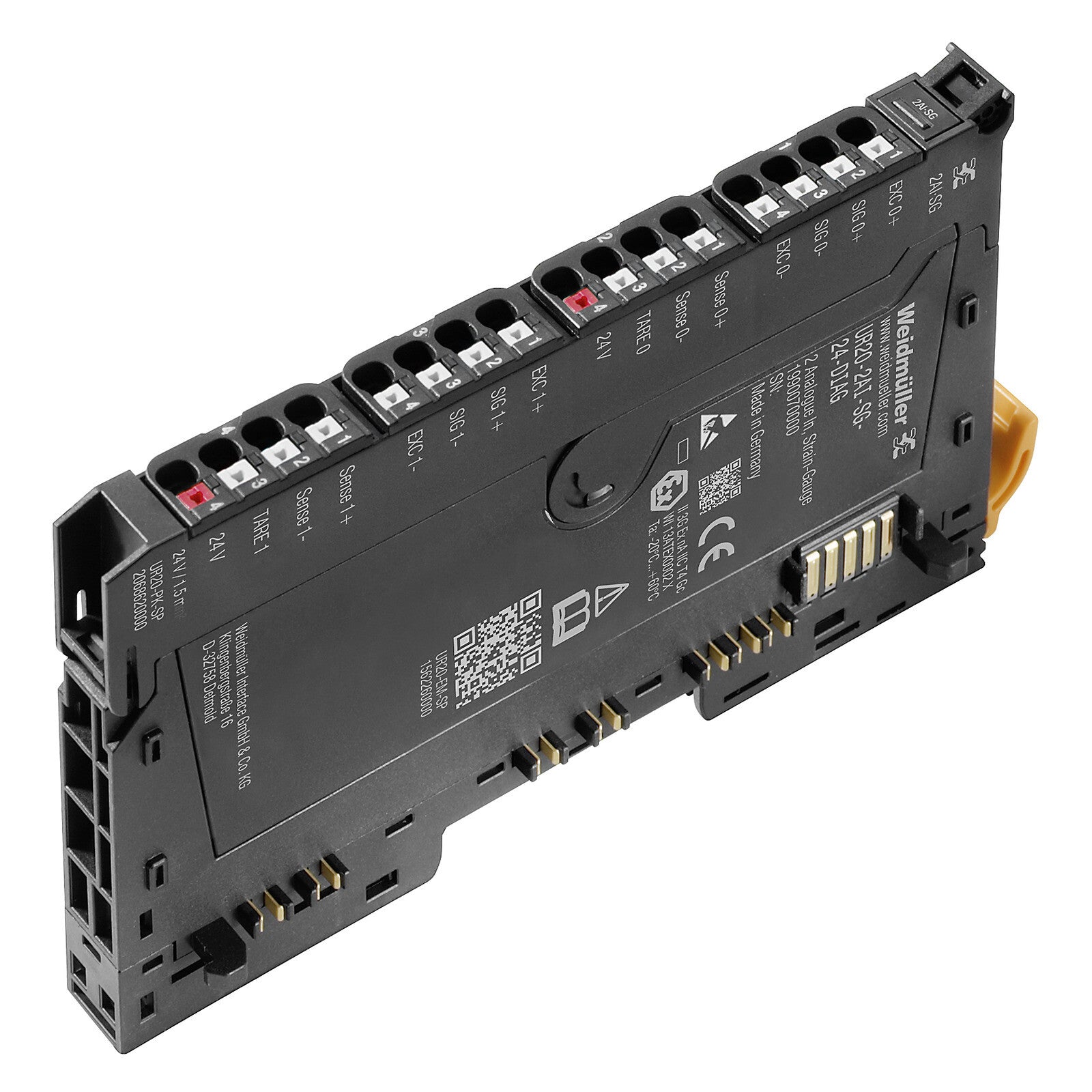

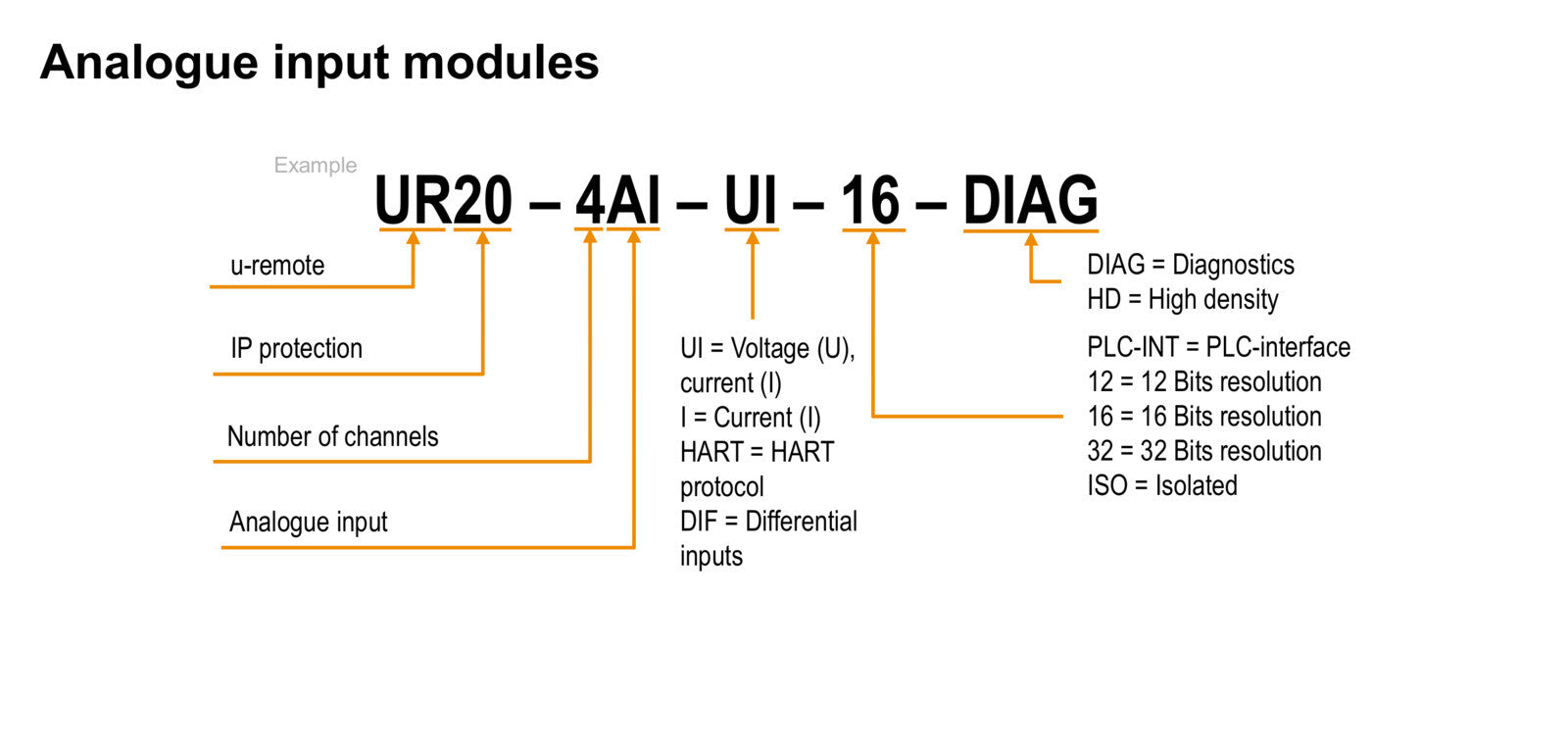

Remote I/O module, Analog signals, Input, PUSH IN connection - UR20-2AI-SG-24-DIAG

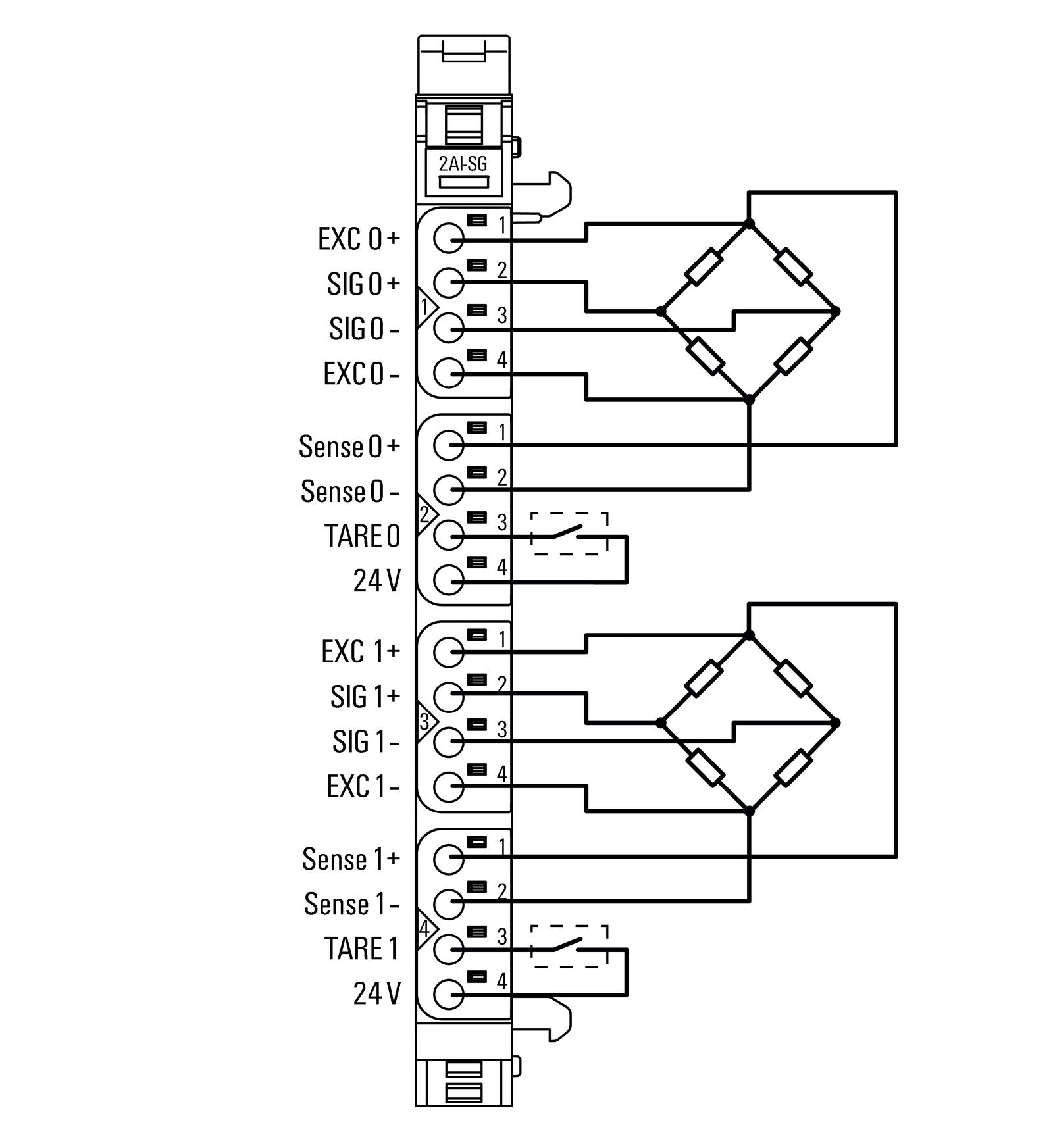

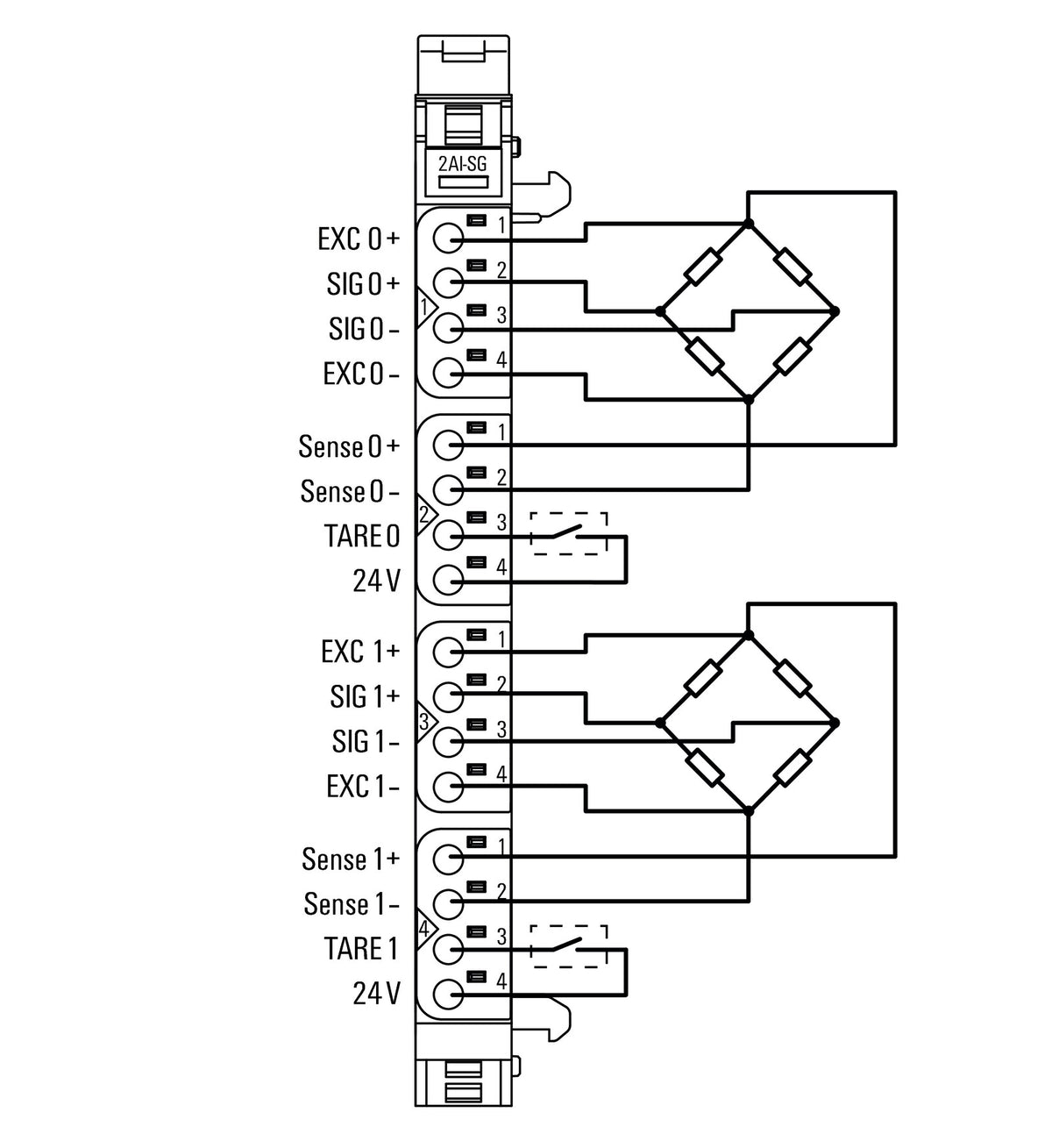

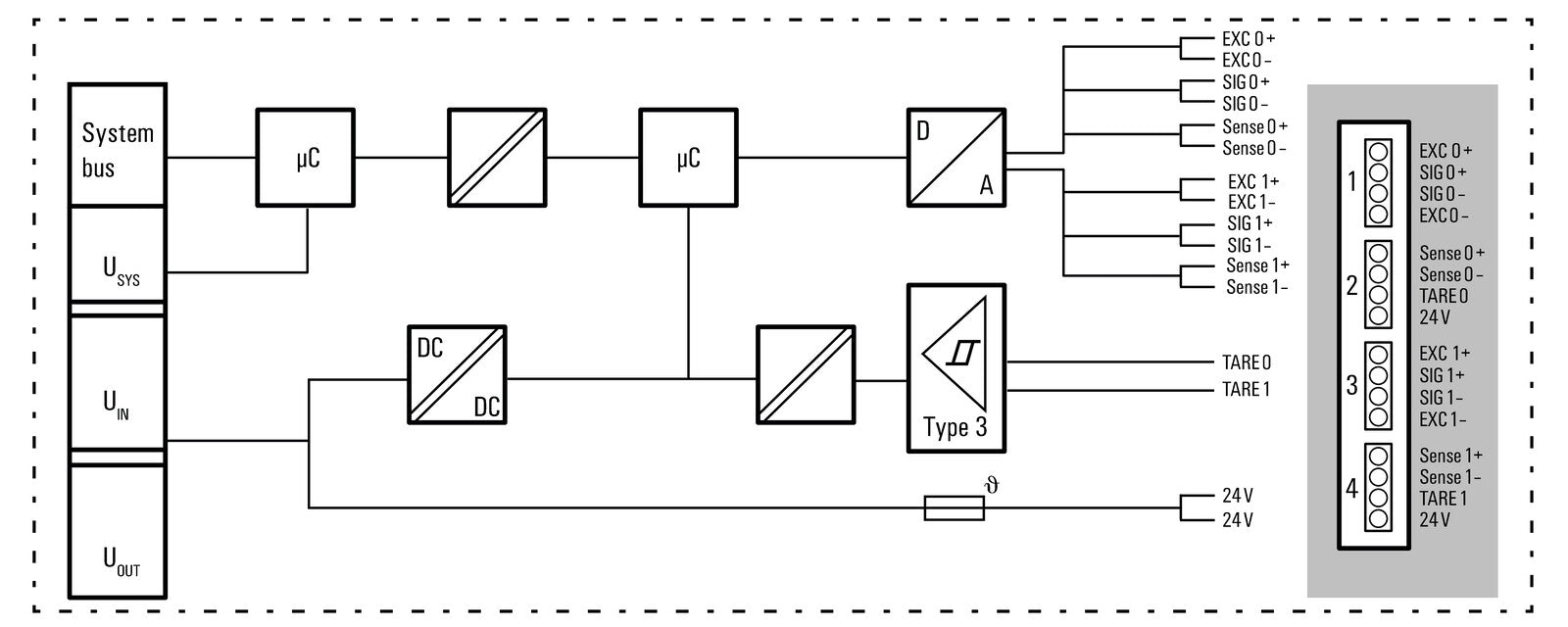

Weidmüller UR20-2AI-SG-24-DIAG is a two-channel strain gauge input module for the u-remote system, reading a full-bridge differentially over a ±150 mV range at 24 bit per channel. That resolution, together with ±0.01 % FSR (100 ppm) accuracy after customer calibration, is what separates it from a general analogue input card used with an external transducer amplifier — the bridge connects directly to the module. Conversion time is parameterisable from 5 ms to 800 ms, and per-channel diagnosis covers the bridge circuit.

• Channels: 2 analogue inputs
• Signal range: Differential strain gauge full-bridge, ±150 mV
• Resolution: 24 bit per channel
• Accuracy: ±0.01 % FSR (100 ppm) with customer calibration; ±1 % FSR under interference
• Supply voltage: 24 V DC +20 % / −15 % via the system bus
• Current consumption: 8 mA typ. from the system bus; 35 mA from the power segment
• Isolation: 500 V DC between the current paths
• Connection: PUSH IN, 0.14 mm² to 1.5 mm²
• Conversion time: 5 ms to 800 ms, parameterisable
• Diagnostics: Individual channel diagnosis and module diagnosis
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 11.5 x 120 x 76 mm
• Protection degree: IP20
• Approvals: RoHS, UL E141197 (cULus), E223527 (cULusEX)
