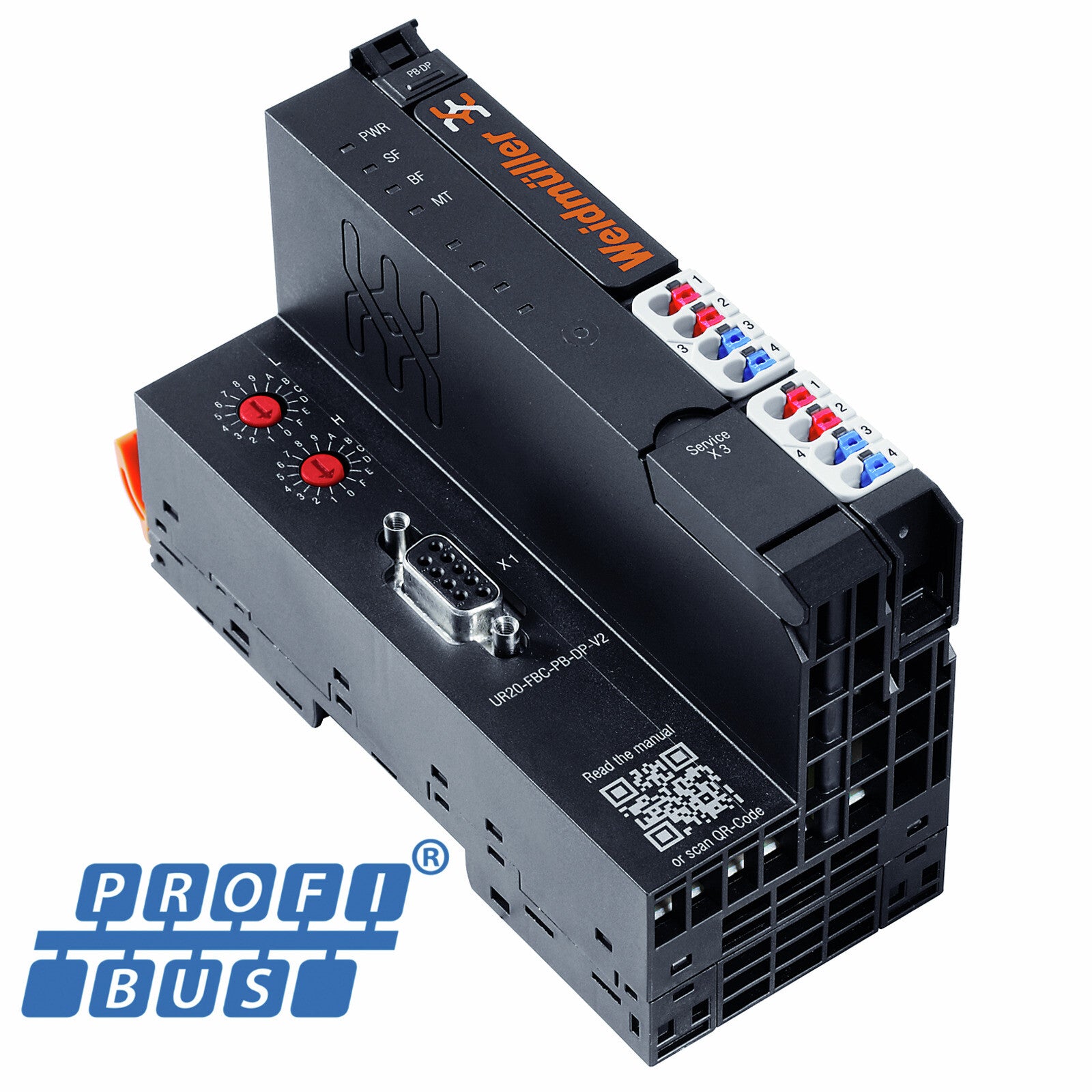

REMOTE I/O FIELDBUS COUPLER, IP20, PROFIBUS DP-V1 - UR20-FBC-PB-DP-V2

Weidmüller UR20-FBC-PB-DP-V2 is the V2 generation PROFIBUS fieldbus coupler for the u-remote IP20 remote I/O system, supporting PROFIBUS DP-V1 at up to 12 Mbit/s over a 9-pole SUB-D female socket. It handles up to 64 modules and 488 byte of process data per station, with galvanic isolation between the fieldbus and the internal system bus.

• Fieldbus: PROFIBUS DP-V1, up to 12 Mbit/s

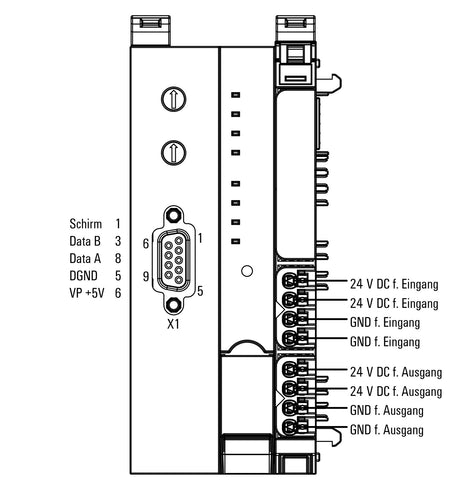

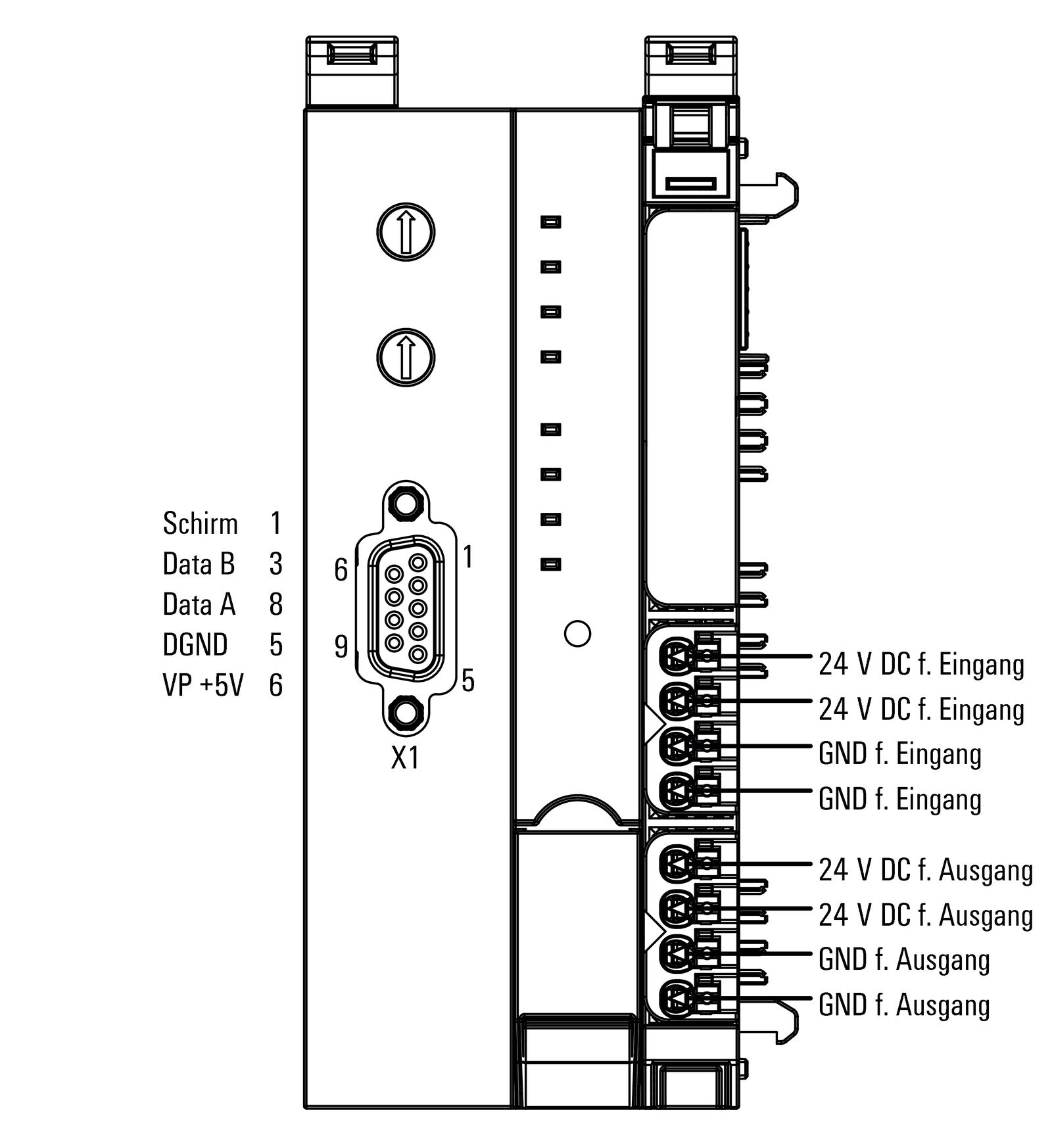

• Fieldbus connection: 9-pole SUB-D socket (female)
• System bus: up to 48 Mbit/s
• Max. modules per station: 64
• Process data per station: 488 byte
• Diagnostic and parameter data: 244 byte
• Service interface: Micro USB 2.0

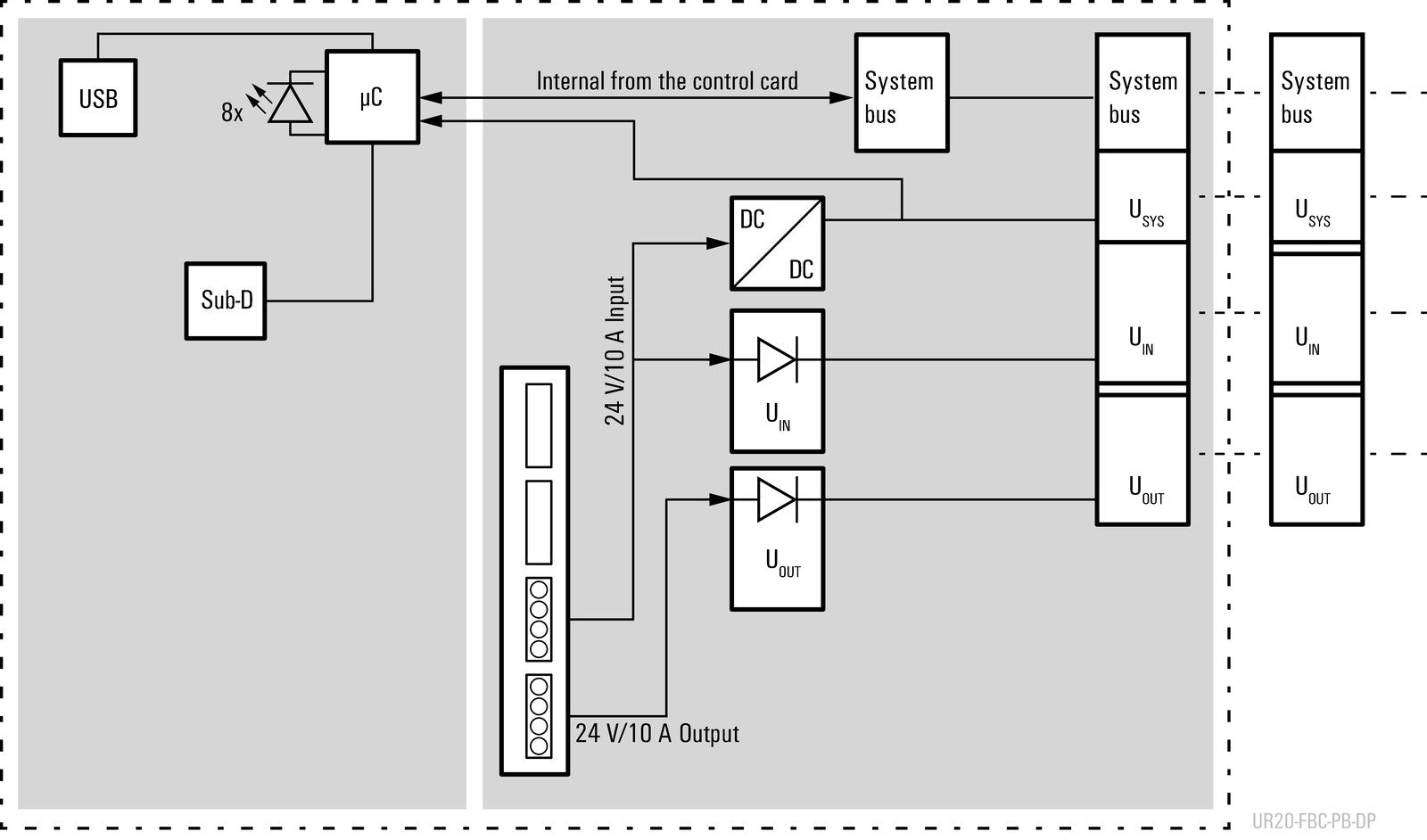

• Isolation: galvanic isolation between fieldbus and system bus
• Supply voltage: 24 V DC +20 % / −15 %
• Current consumption: 90 mA typical from the system supply
• System supply available to modules: 4 A max.
• Connection system: PUSH IN, 0.14 to 1.5 mm²
• Operating temperature: −20 °C to +60 °C
• Dimensions (W x H x D): 52 x 120 x 76 mm
• Protection degree: IP20
• Approvals: UL (E141197), cULusEX (E223527), RoHS compliant
• Order number: 2614380000
