PROmax Switch-Mode Power Supply 480W 24V 20A

The Weidmüller PRO MAX 480W 24V 20A is a single-phase DIN rail switch-mode power supply delivering 480 W on a 24 V DC rail. PRO MAX is the performance tier of the range, so it is the variant to pick over a PRO BAS or PRO ECO when the load draws heavy inrush from contactor banks, solenoids or motor starters and needs short-term current well above the nominal rating.

• Output: 24 V DC ± 1 %, 20 A at 60 °C, adjustable 22.5-29.5 V

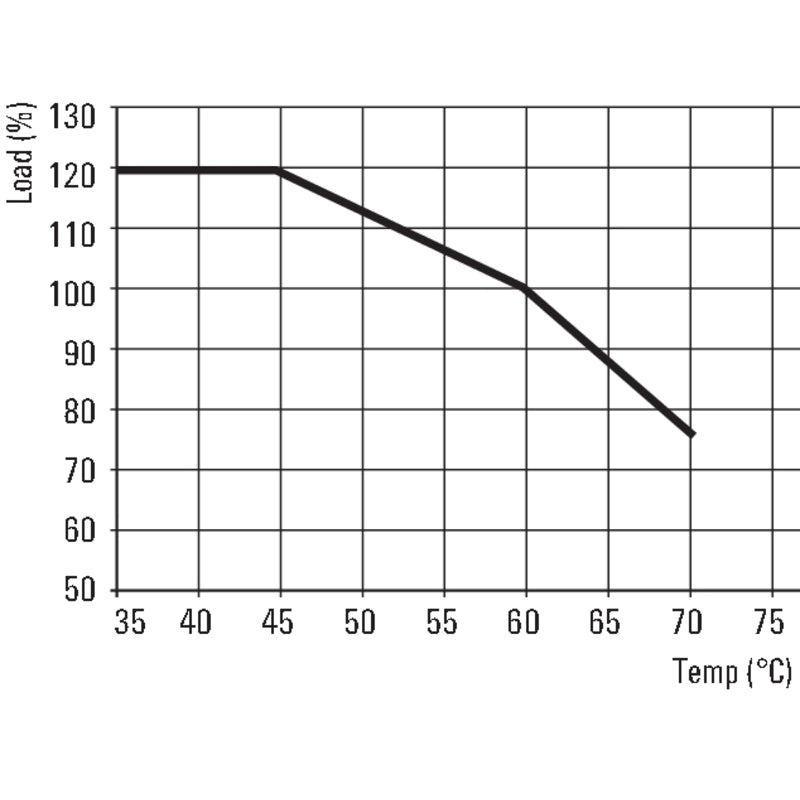

• Continuous power: 480 W (24 A at 45 °C, 15 A at 70 °C)
• Power boost: 300 % peak, 20 % continuous overload
• Input: 85-277 V AC single phase, 45-65 Hz, or 80-370 V DC
• Efficiency: 92 %, power factor typically 0.95
• Connection: screw terminals, horizontal TS 35 DIN rail mounting
• Operating temperature: -25 °C to 70 °C, 75 % derating at 70 °C
• Approvals: cULus E258476, cURus E255651, cULusEX E470829, RoHS
• Dimensions: 90 x 130 x 150 mm (W x H x D)
