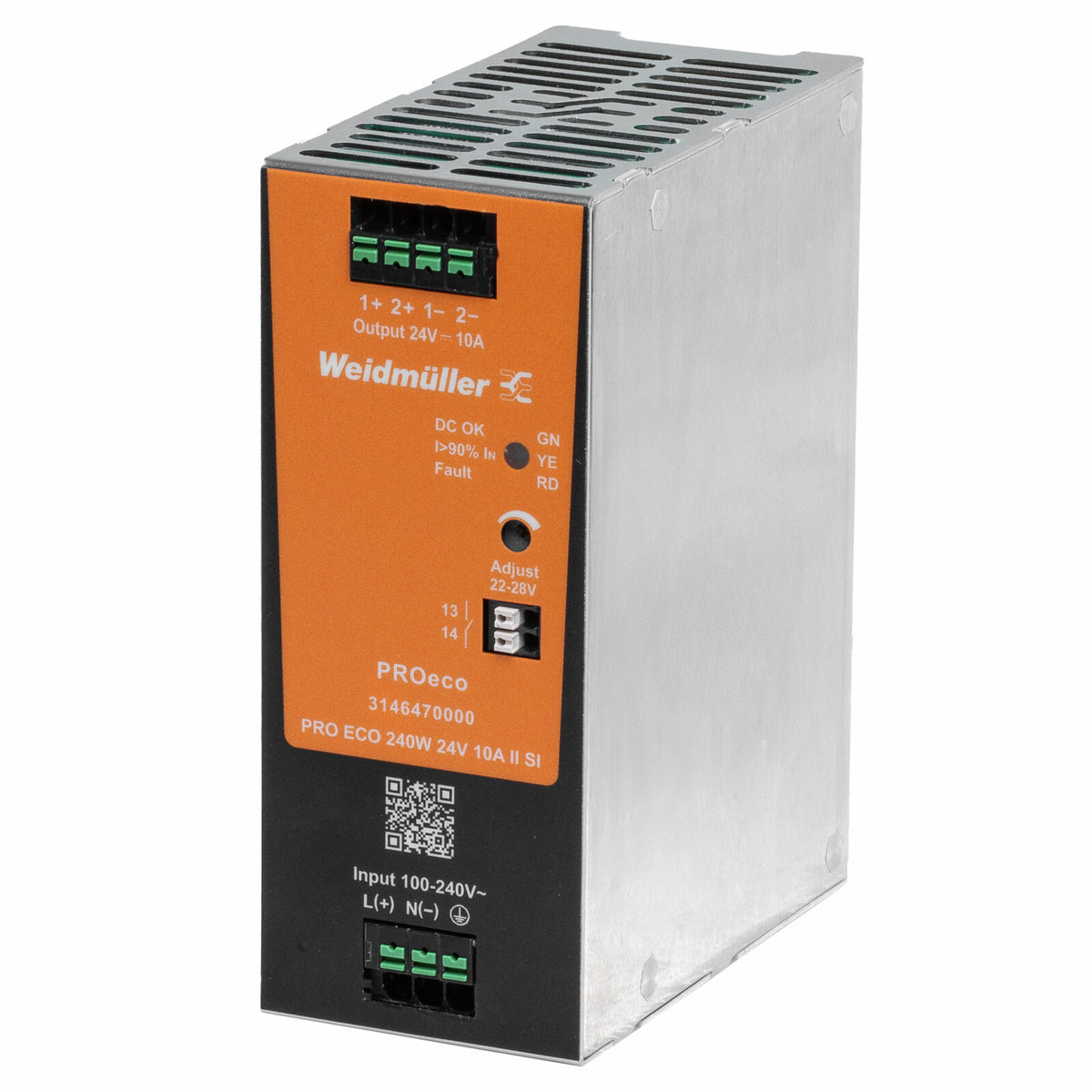

PROECO SWITCH-MODE POWER SUPPLY 240W 24V 10A II SI

Weidmüller PRO ECO 240 W 24 V single-phase switch-mode power supply with the SNAP IN connection system for tool-free wiring. At 94.5 % efficiency on a 230 V supply it is the most efficient unit in the PRO ECO single-phase line.

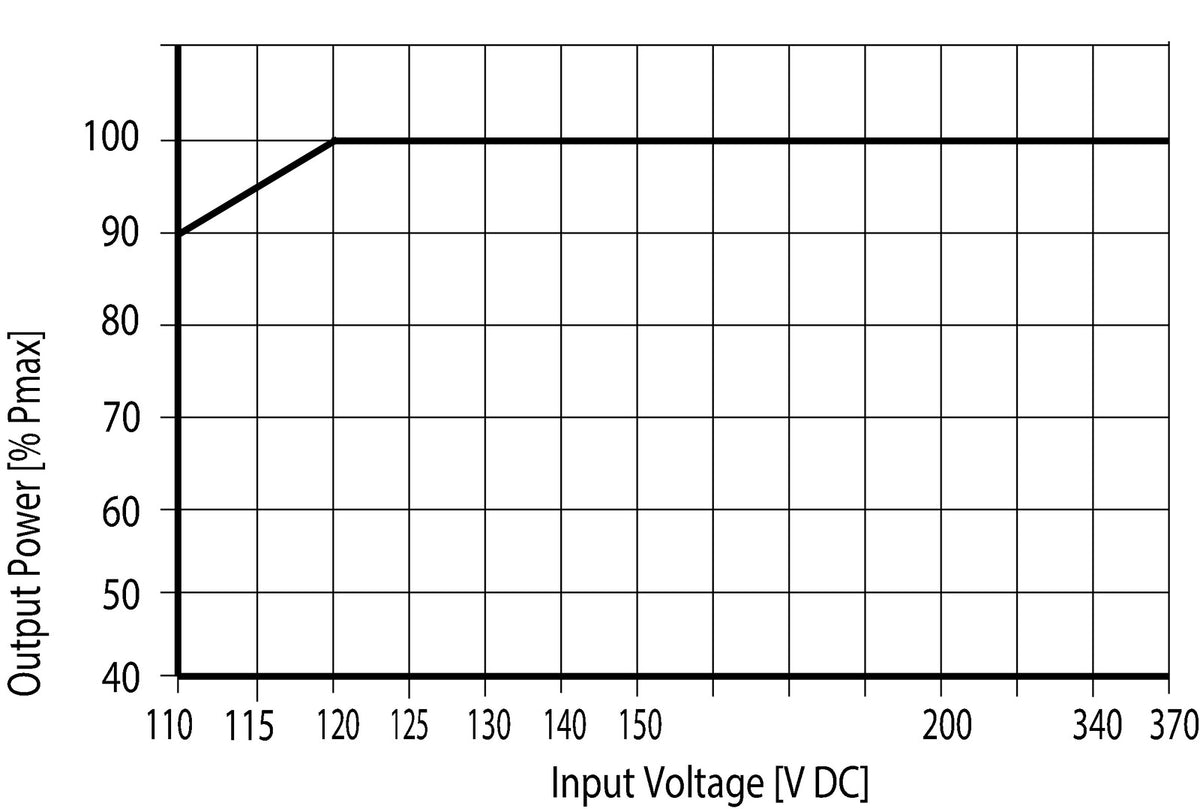

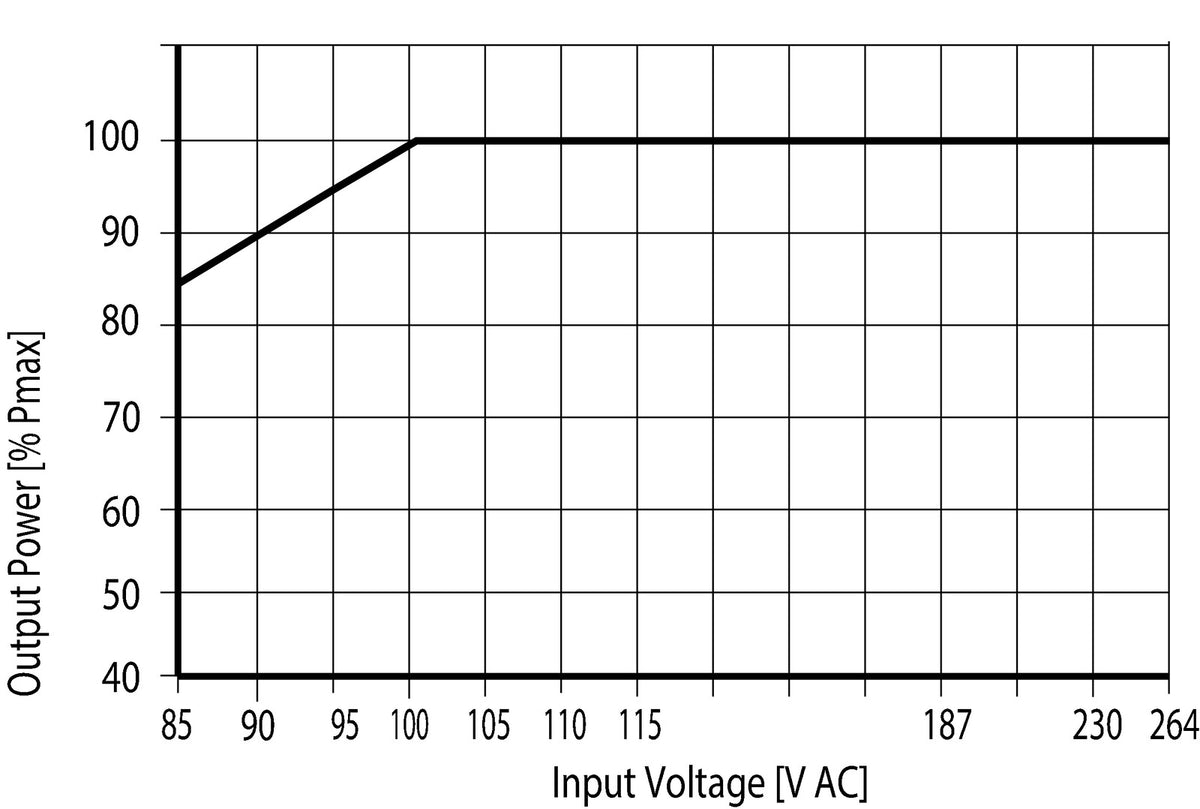

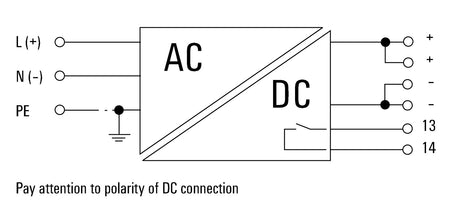

• Input: 100…240 V AC single-phase, or 120…370 V DC
• Output voltage: 24 V DC, adjustable 22–28 V by potentiometer

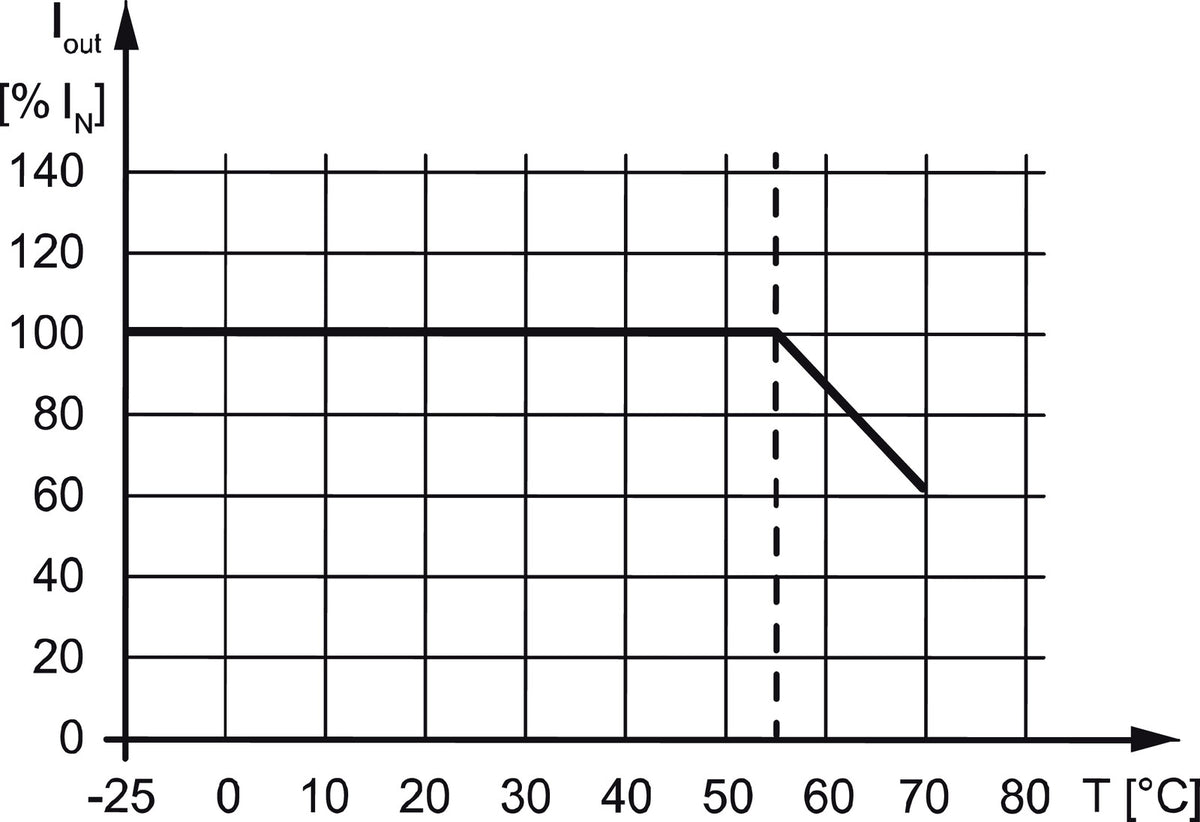

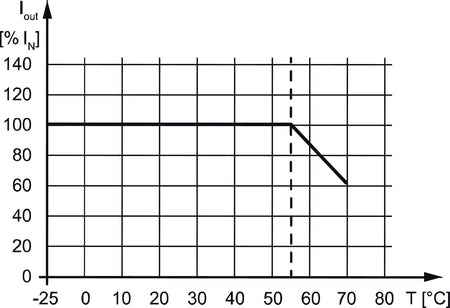

• Output current: 10 A @ 55 °C, 6.25 A continuous @ 70 °C
• Output power: 240 W
• Efficiency: approx. 92.7 % @ 120 V AC, 94.5 % @ 230 V AC

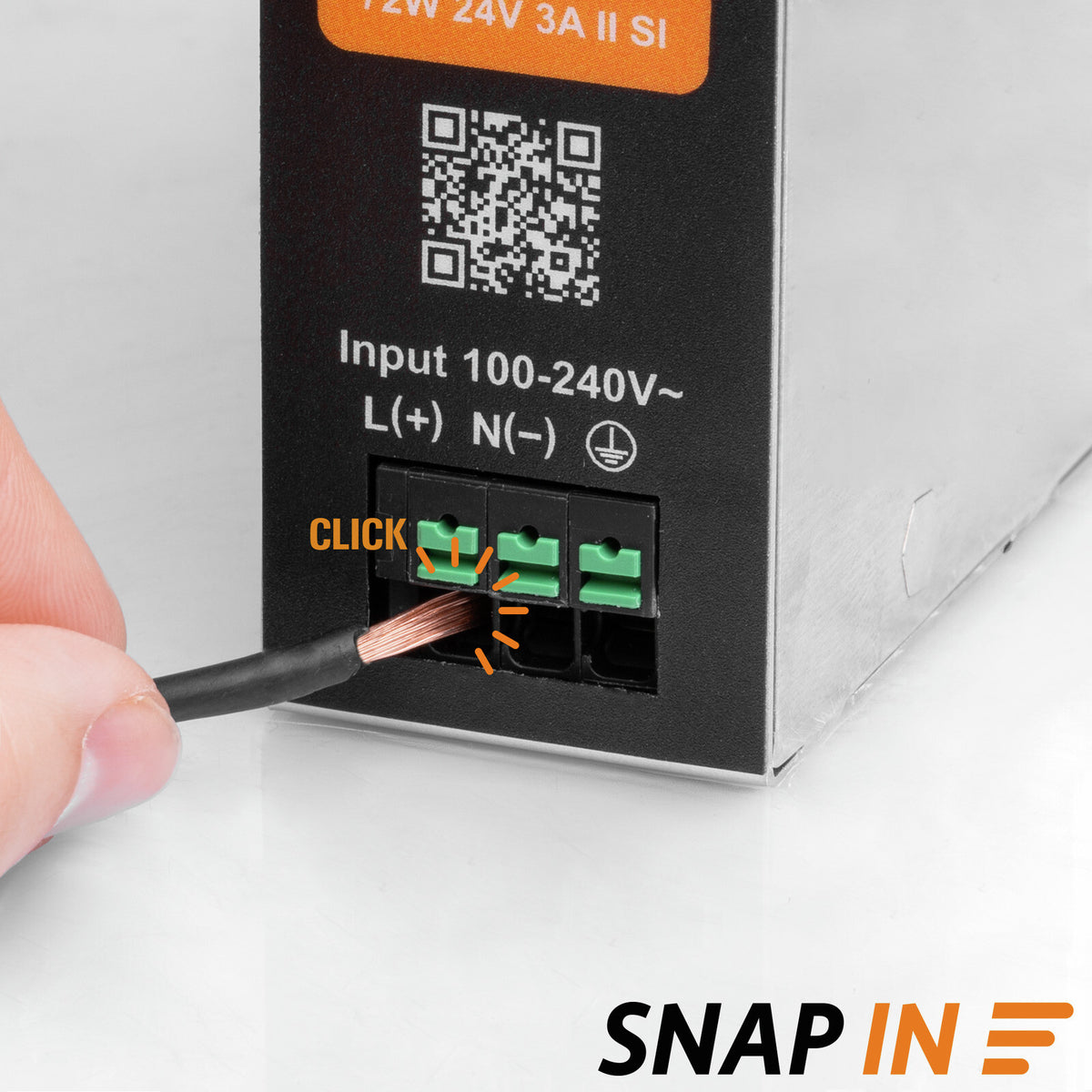

• Connection: SNAP IN, tool-free
• Operating temperature: −25 °C to +70 °C
• Dimensions (W x H x D): 52 x 130 x 100 mm
• Mounting: DIN rail TS 35
• Protection degree: IP20
