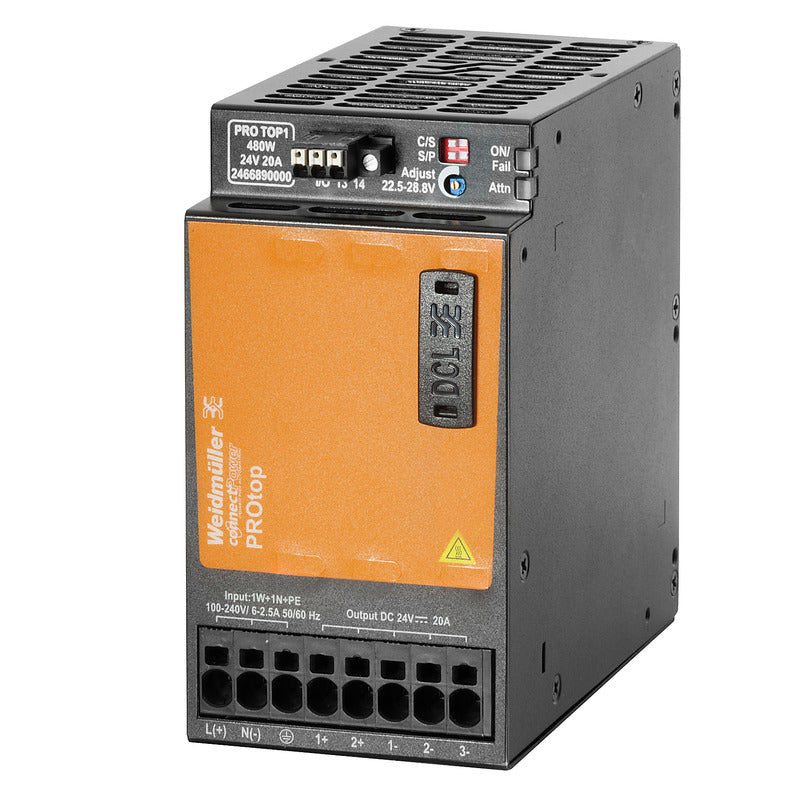

PRO TOP1 480W 24V 20A Switch-Mode Power Supply Unit with Comms Port

The Weidmüller PRO TOP1 480W 24V 20A is a single-phase switch-mode power supply for TS 35 DIN rail, feeding a 24 V DC rail at up to 20 A. PRO TOP is the top-end family: it adds a floating status contact, PUSH IN terminals and a slot for plug-in CANopen, IO-Link or display modules, so it suits panels where supply health has to be reported back to the PLC or SCADA.

• Output: 24 V DC ± 1 %, 20 A at 60 °C, adjustable 22.5-28.8 V
• Continuous power: 480 W
• Peak capability: 150 % of rated current for 5 s, 500 % for 15 ms
• Input: 85-277 V AC single phase, 45-65 Hz, or 120-340 V DC
• Efficiency: 93 %, power factor > 0.9
• Signalling: Floating status contact and green/red status LEDs; optional plug-in CANopen, IO-Link or display module
• Connection: PUSH IN, 0.2-6 mm² flexible / 0.2-10 mm² rigid

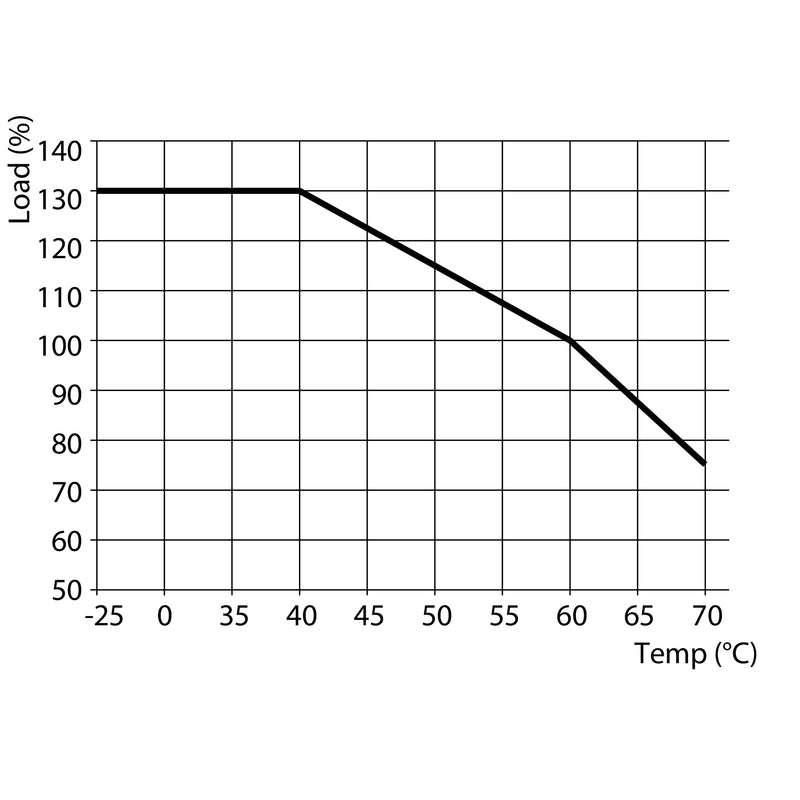

• Operating temperature: -25 °C to +70 °C, derating 2.5 % per °C above 60 °C
• Dimensions: 68 x 130 x 125 mm (W x H x D), 1520 g
