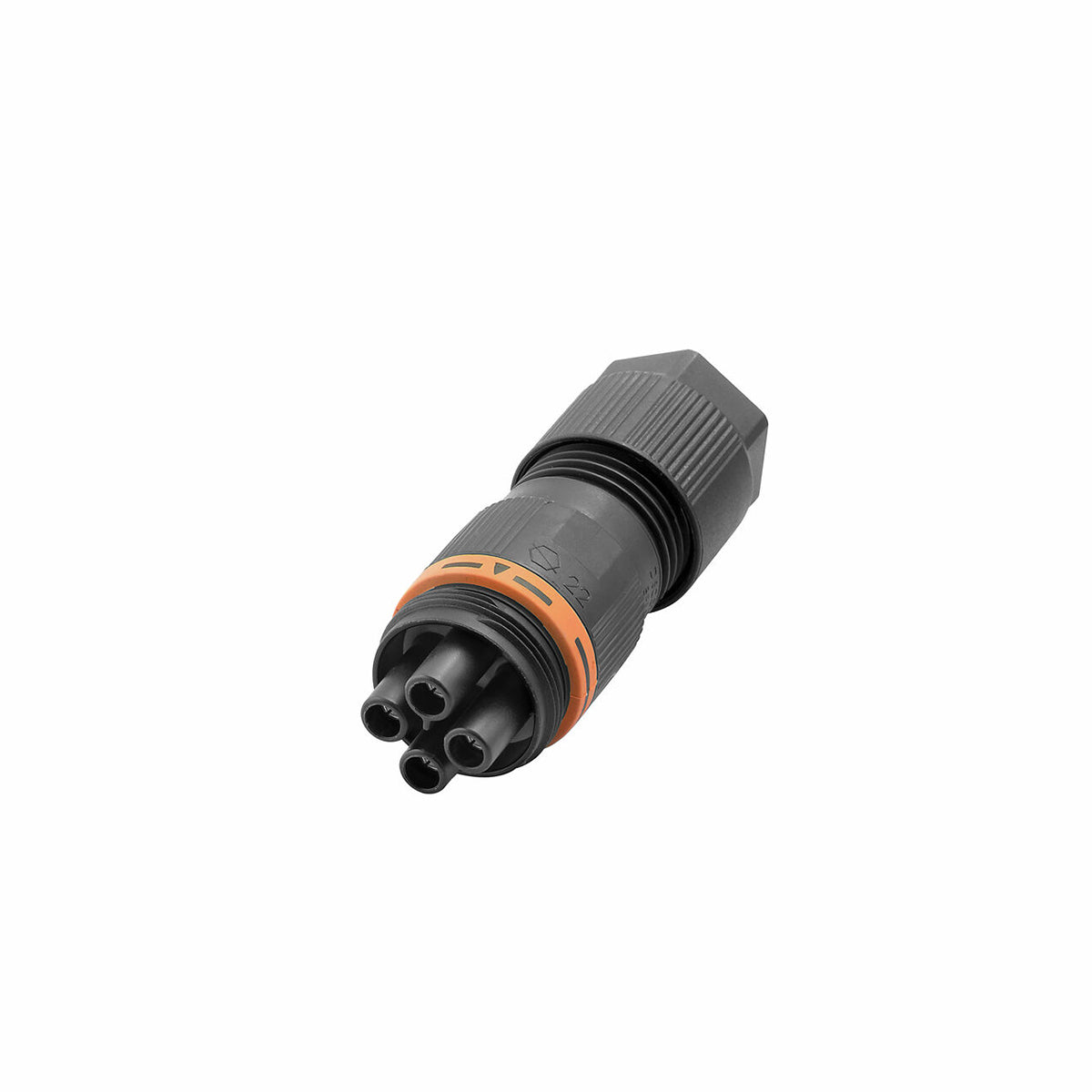

IP68 Inline Cable Connector 4-Pole Female Socket
Ask an expert!
The Weidmüller 3136940000 (RC F P4) is a 4-pole inline cable connector female socket with screw terminal connection, rated at 17.5A and 500V with IP68 ingress protection. Designed for cable-to-cable connections in outdoor, wet area, and industrial environments. The M20 screw terminal connection accommodates conductor cross-sections from 0.5 to 4 mm², providing a secure and vibration-resistant termination. Features reverse polarity protection and PA 66 housing. Pairs with the Weidmüller 3136930000 male plug to form a complete inline connector set. Protective cap (2833850000) available separately to maintain IP68 rating when disconnected.
| Article Number | 3136940000 |
| Weidmüller Type | connector |
| Configuration | Inline — Female Socket |
| Number of Poles | 4 |
| Connection Type | Screw connection |
| Rated Current | 17.5 A |
| Rated Voltage | 500 V |
| IP Rating | IP68 |
| Connection Thread | M20 |
| Cable Diameter | 7–13 mm |
| Conductor Cross-Section | 0.5–4 mm² |
| Housing Material | PA 66 |
| Operating Temperature | -40 °C to +60 °C |
| Reverse Polarity Protection | Yes |
| Approvals | cULus (E307231) · RoHS |
