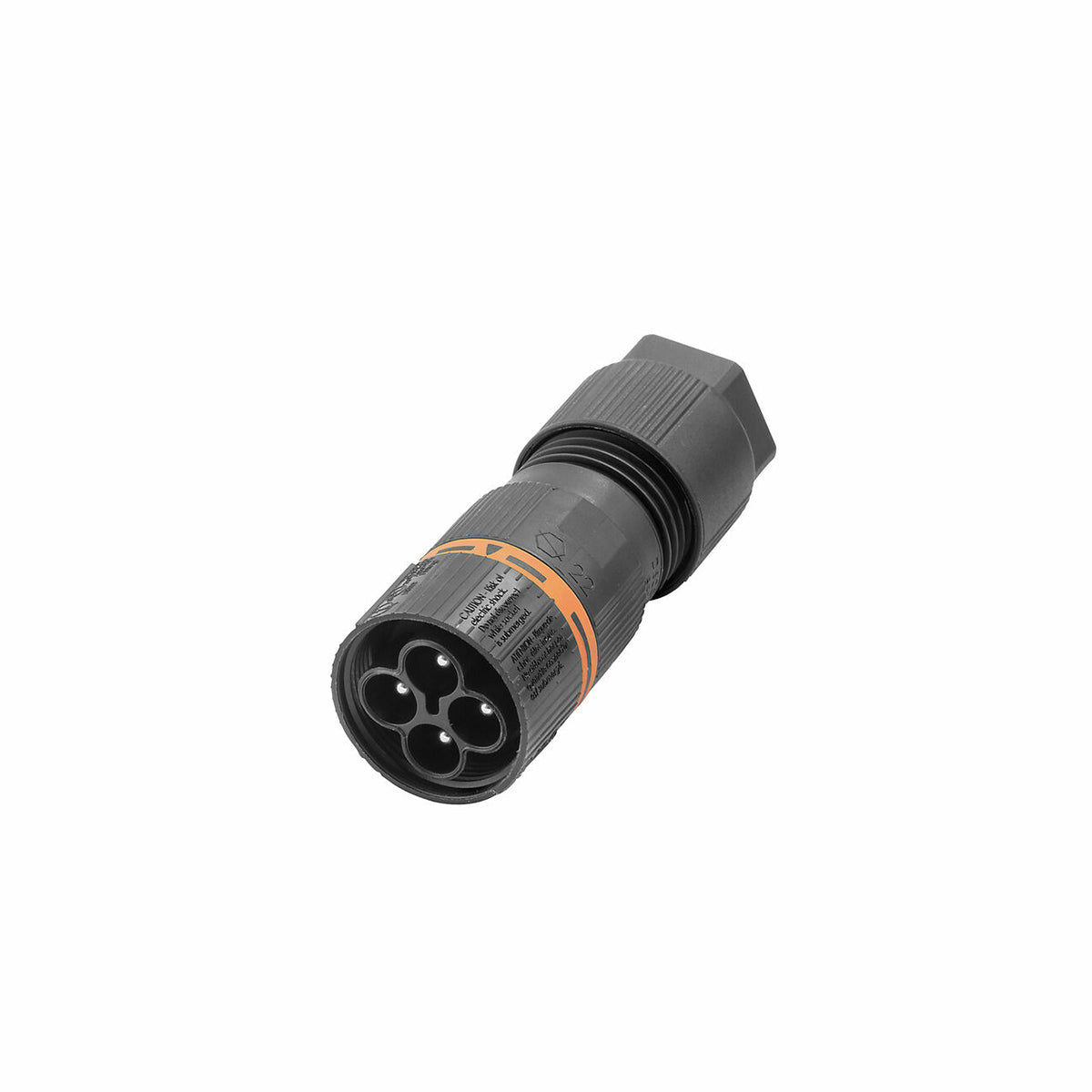

IP68 Inline Cable Connector 4-Pole Male Plug
Ask an expert!
The Weidmüller 3136930000 (RC M P4) is a 4-pole inline cable connector male plug with screw terminal connection, rated at 17.5A and 500V with IP68 ingress protection. Designed for cable-to-cable connections in outdoor, industrial, and wet-area applications where a high-integrity, submersion-rated connection is required. The M20 screw terminal connection accommodates conductor cross-sections from 0.5 to 4 mm² and cable diameters from 7 to 13 mm, providing secure and vibration-resistant termination. Features reverse polarity protection and PA 66 housing. Pairs with the Weidmüller 3136940000 female socket to form a complete inline connector system. Protective cap (2820090000) available separately to maintain IP68 rating when disconnected.
| Article Number | 3136930000 |
| Weidmüller Type | connector |
| Configuration | Inline — Male Plug |
| Number of Poles | 4 |
| Connection Type | Screw connection |
| Rated Current | 17.5 A |
| Rated Voltage | 500 V |
| IP Rating | IP68 |
| Connection Thread | M20 |
| Cable Diameter | 7–13 mm |
| Conductor Cross-Section | 0.5–4 mm² |
| Housing Material | PA 66 |
| Operating Temperature | -40 °C to +60 °C |
| Reverse Polarity Protection | Yes |
| Approvals | cULus (E307231) · RoHS |
