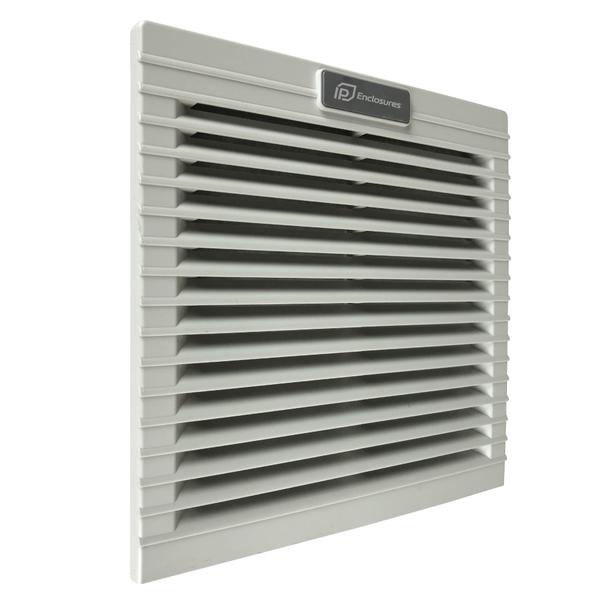

IP-V3200 - image 2

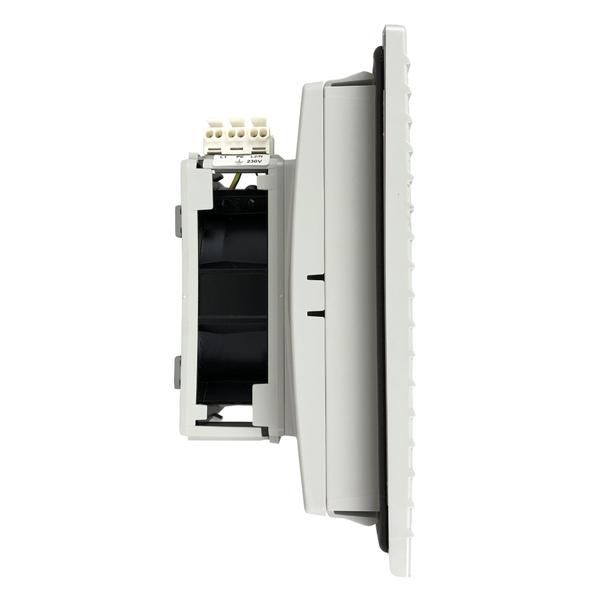

IP-V3200 - image 3

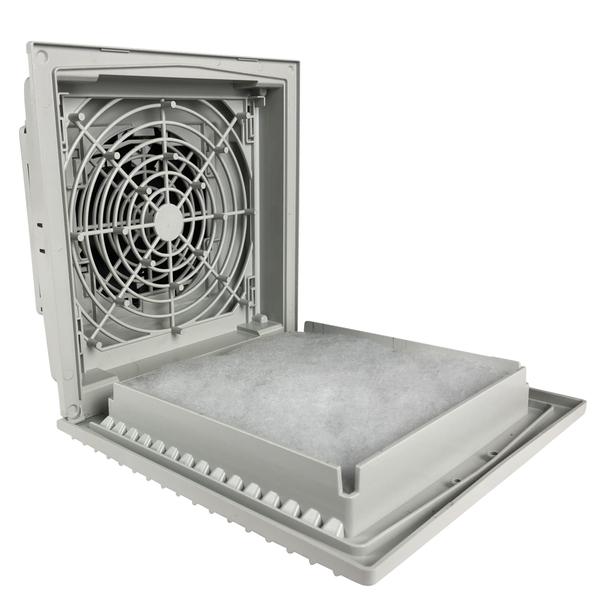

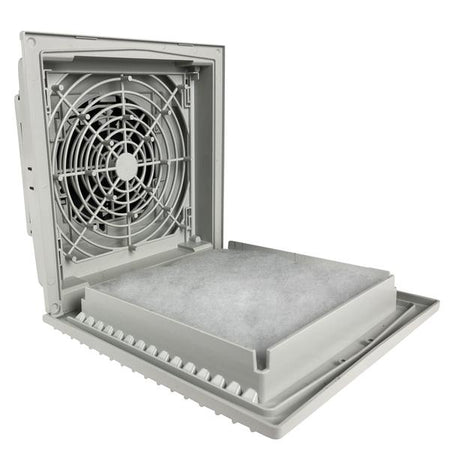

IP-V3200 - image 4

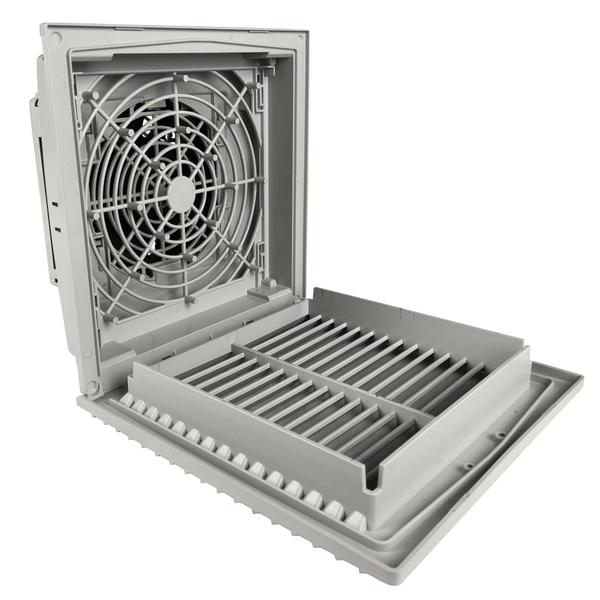

IP-V3200 - image 5

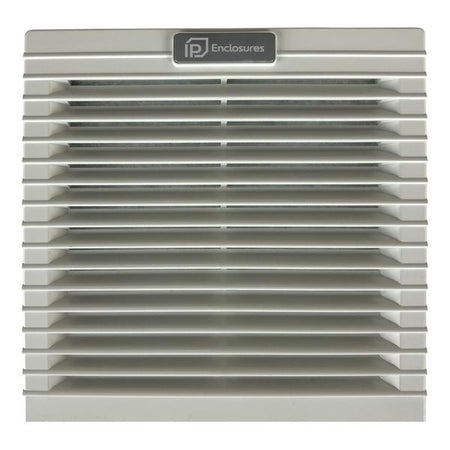

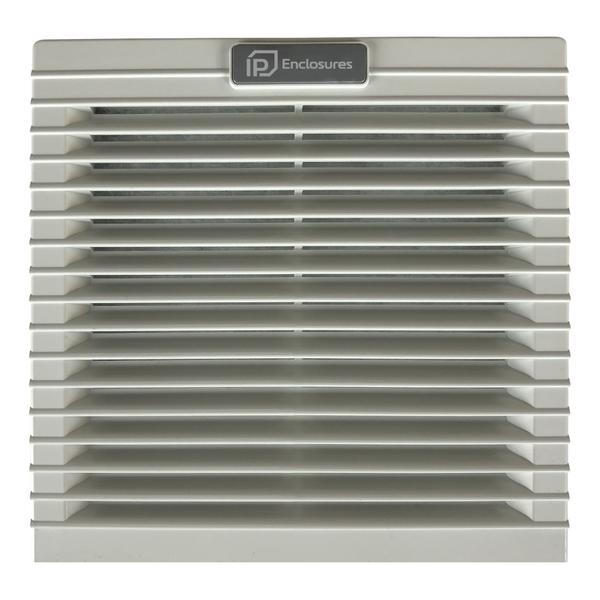

Filter Fan 204 x 204 115m3/hr 230V — IP Enclosures
IP-V3200 - image 2
IP-V3200 - image 3
IP-V3200 - image 4
IP-V3200 - image 5

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Filter Fan 204 x 204 115m3/hr 230V

SKU
In stock
Stock on hand
NSW WarehouseAuburn, NSW 2144
56 in stock
QLD WarehouseBells Creek, QLD 4551
71 in stock
VIC WarehouseEpping, VIC 3076
12 in stock
Updated 2 minutes ago
Shipping & pickup →
$170.22 ex. GST $187.24 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 204
  • Width (mm) 204
  • Colour / Finish Grey
  • IP Rating IP54

Filter Fan 204 x 204 115m3/hr 230V

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features Unit IP-V3200
Air flow rate (free blow) m³/h 115 (125)
Flow rate with exit filter m³/h 84 (97)
Power supply V/Hz 230 / 50-60
Dimensions HxLxP mm 204x204x104
Power consumption W 22 (21)
Current consumption A 0.14 (0.12)
Overcurrent consumption – impedance
Electric connection – 3-poles spring terminals
Duty cycle – 100%
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54/Class I
Noise level dB(A) 43 (49)
Flow direction – reversible: default factory setting outside-in
Bearing – ball
Filter mat (Eurovent) – G3
Service life (at 40°C) hr 50 000
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 0.98 (1.18)
Package dimensions mm 220x220x110
Montaggio – fast clip-on
Cut-Out dimensions mm 177×177
Conformity/Approvals – CE

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
