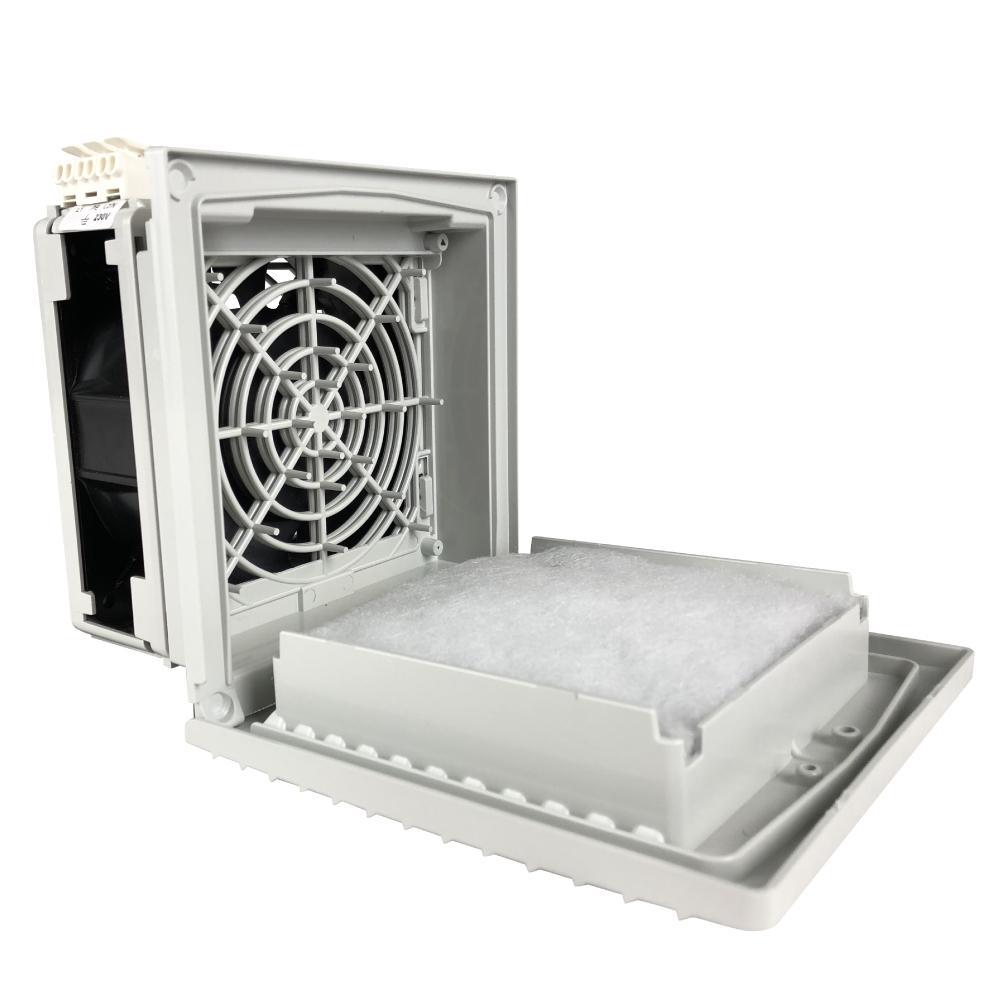

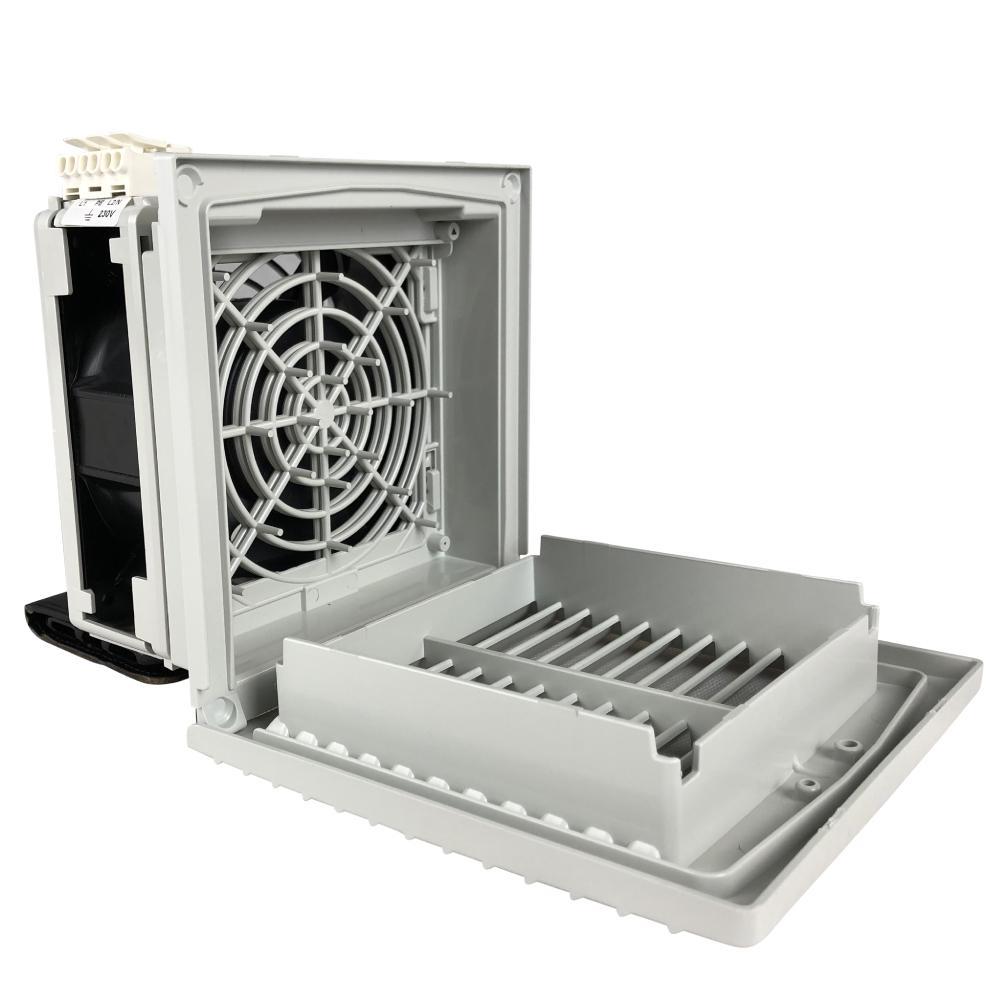

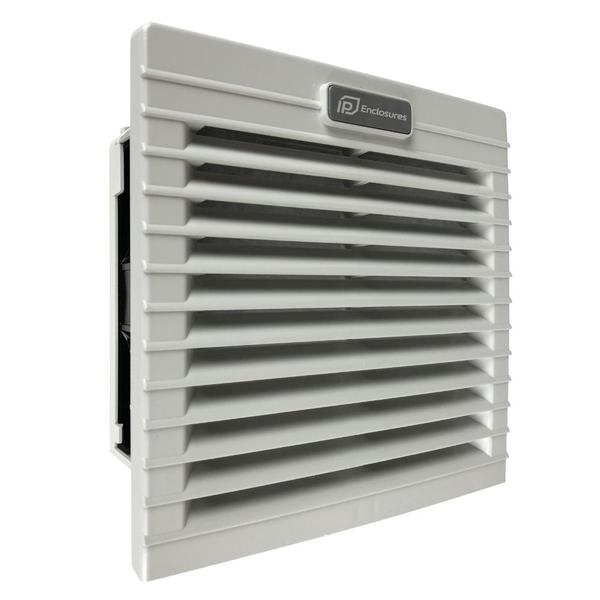

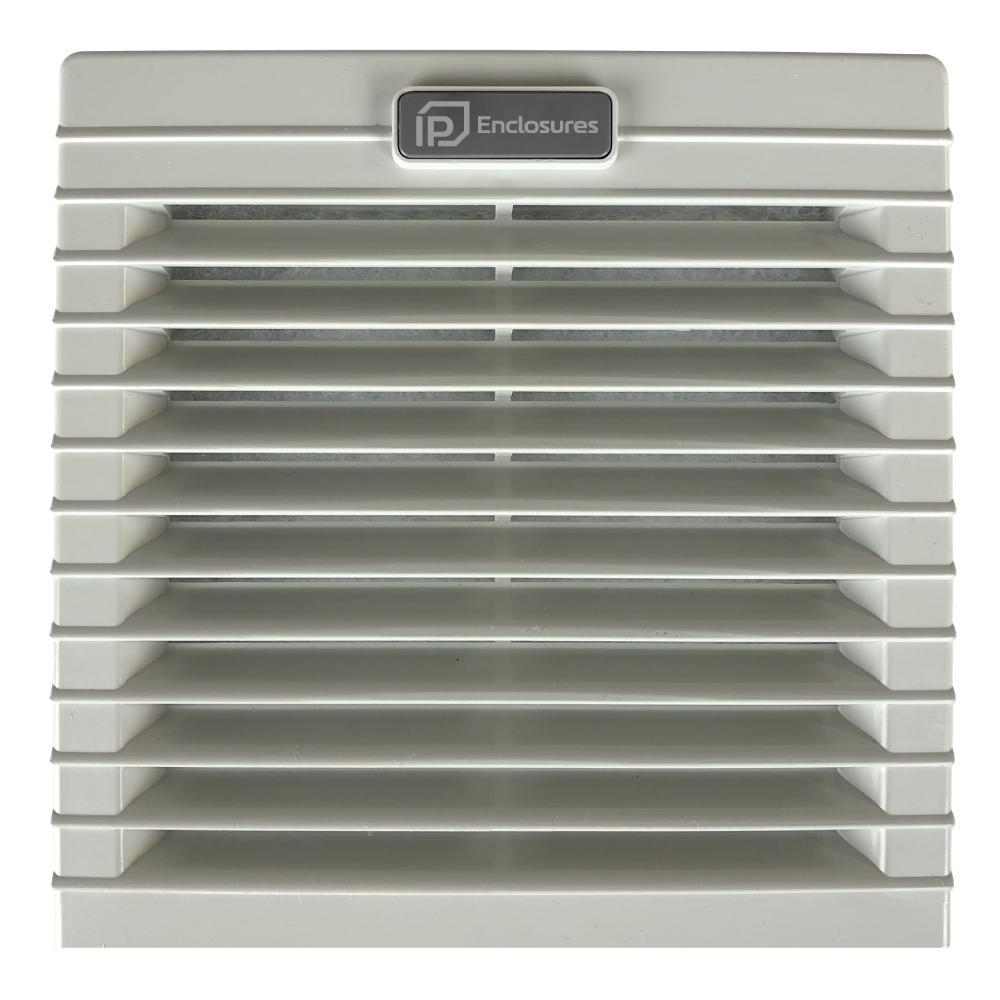

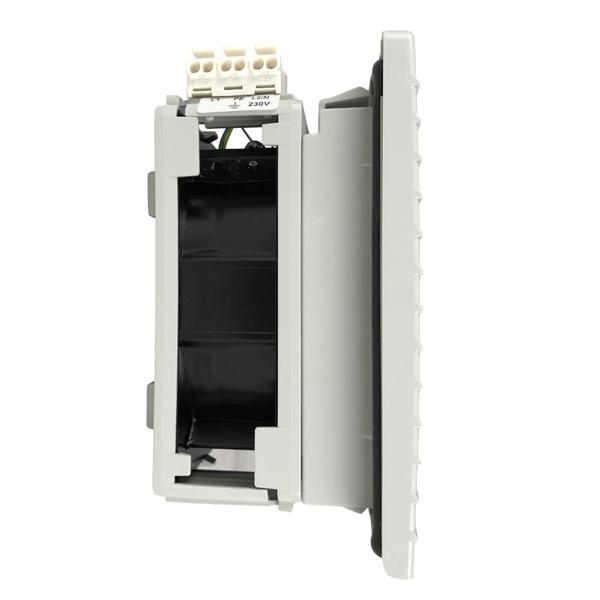

Filter Fan 150 x 150 58m3/hr 48VDC
High quality Italian filter fan unit for electrical enclosures.
G3 Filter Mat Included.
| Features | Unit | IP-V2248 |
|---|---|---|
| Air flow rate (free blow) | m3/h | 58 |
| Flow rate with exit filter | m3/h | 43 |
| Power supply | V/Hz | DC48 |
| Dimensions HxLxP | mm | 150x150x86 |
| Power consumption | W | 9 |
| Current consumption | A | 0.27 |
| Overcurrent consumption | - | impedance |
| Electric connection | - | 2-poles spring terminals |
| Duty cycle | - | 100% |
| Operating temperature | °C (°F) | - 10 / +70 (+14 / +158) |
| Protection degree/class | - | IP54/Class I |
| Noise level | dB(A) | 45 |
| Flow direction | - | reversible: default factory setting outside-in |
| Bearing | - | ball |
| Filter mat (Eurovent) | - | G3 |
| Service life (at 40°C) | hr | 50 000 |
| Material | - | ABS UL94V-0 Color RAL7035 |
| Wall thickness | mm | 1.2-2.4 |
| Gasket | - | foam seal gasket |
| Weight (with packaging) | kg | 0.48 (0.55) |
| Package dimensions | mm | 165x165x90 |
| Mounting | - | fast clip-on |
| Conformity/Approvals | - | CE |
Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
