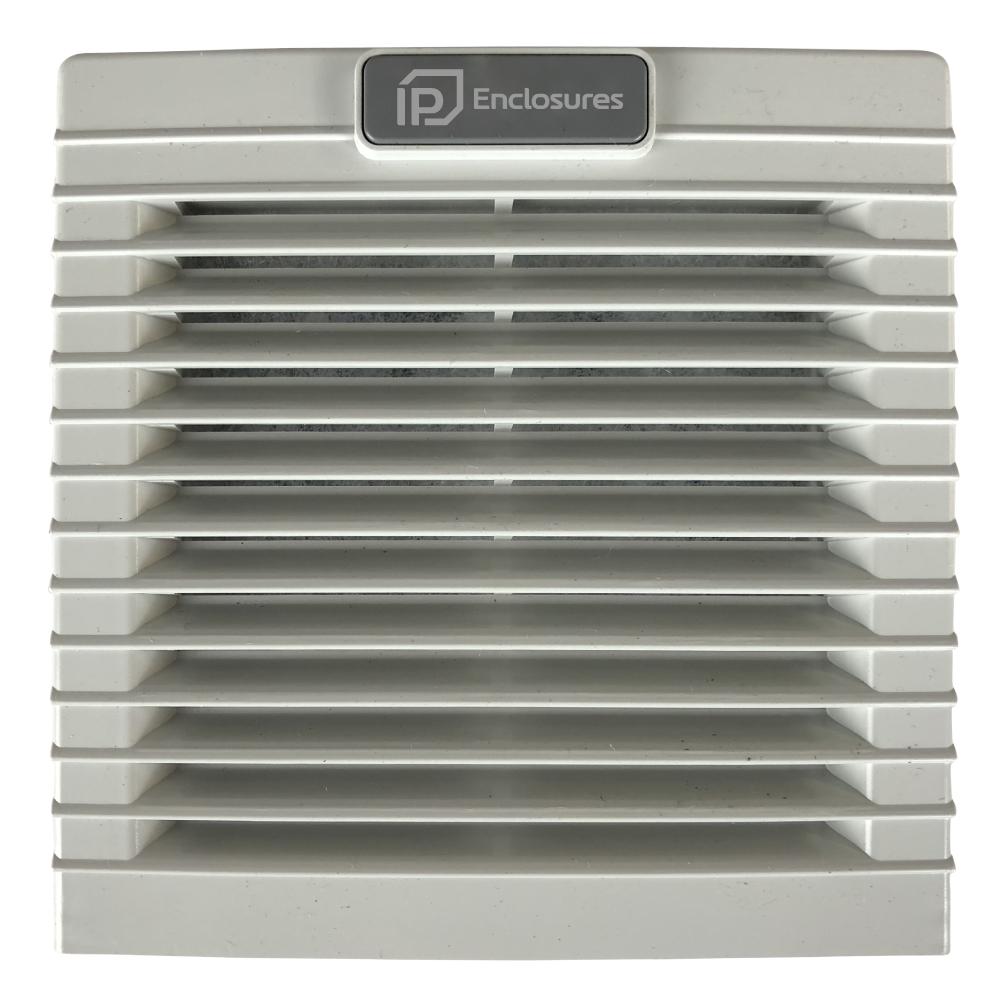

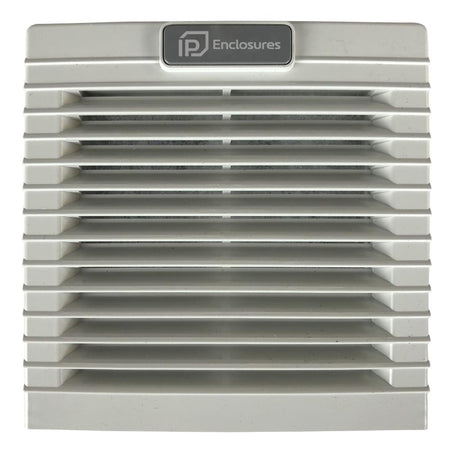

Filter Fan 114 x 114 25m3/hr 24VDC — IP Enclosures

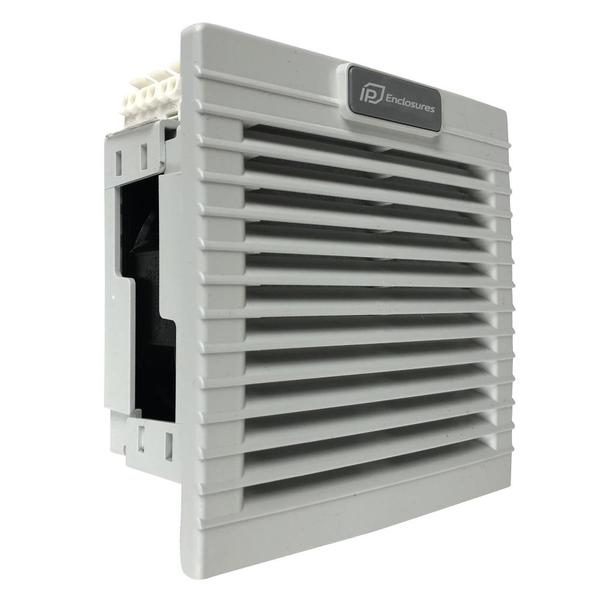

IP-V1124 - image 2

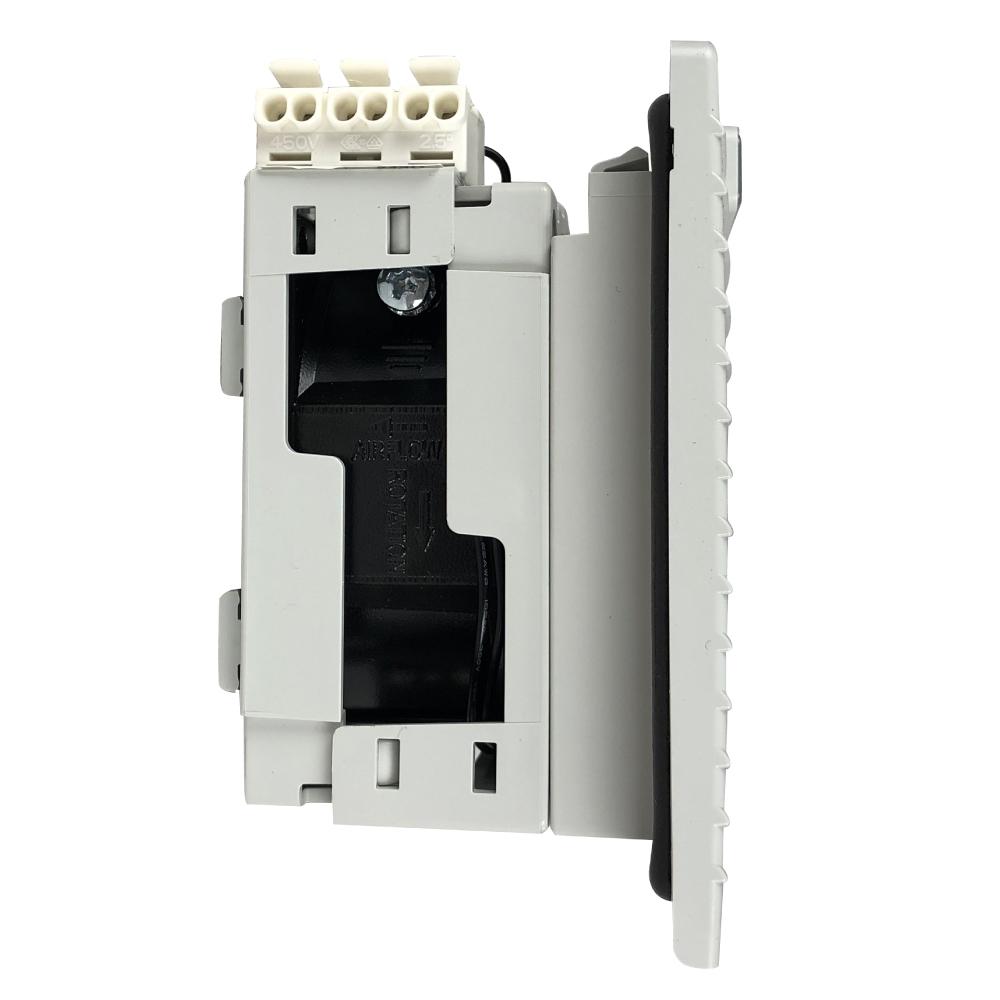

IP-V1124 - image 3

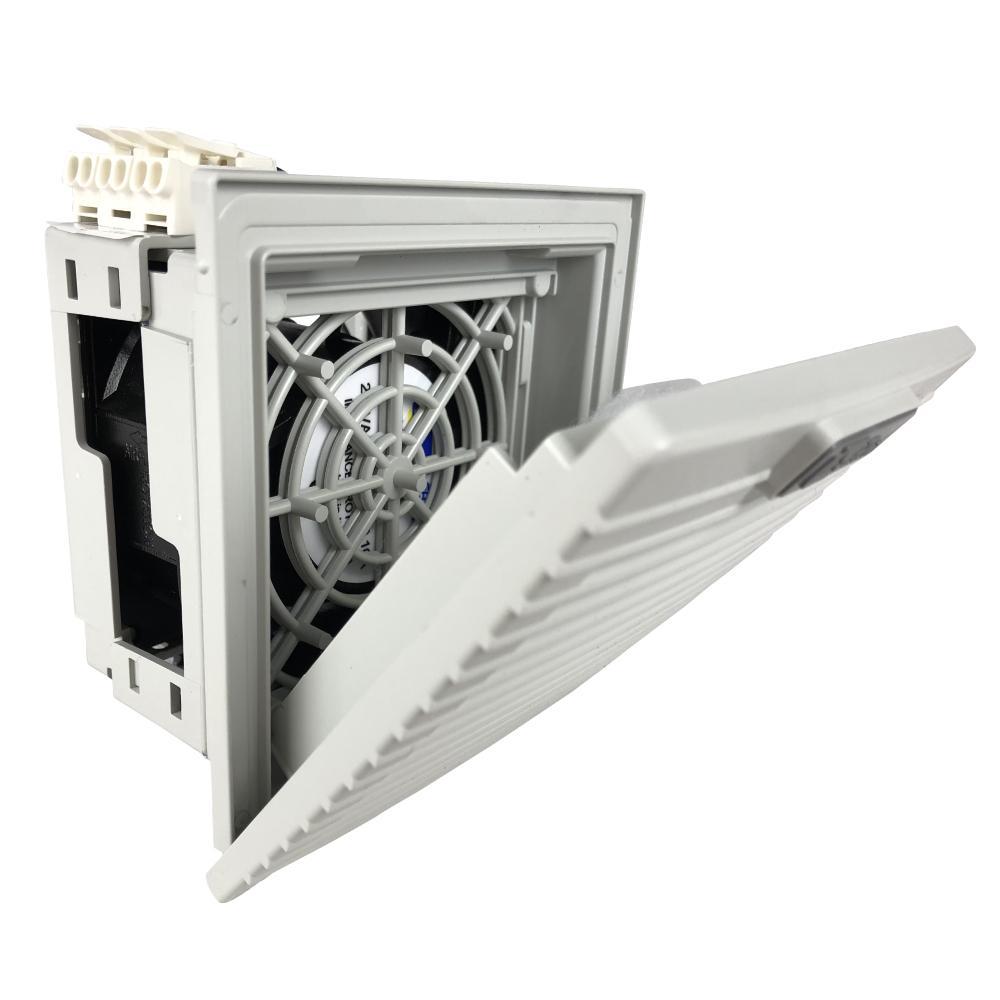

IP-V1124 - image 4
Filter Fan 114 x 114 25m3/hr 24VDC — IP Enclosures
IP-V1124 - image 2
IP-V1124 - image 3
IP-V1124 - image 4

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Filter Fan 114 x 114 25m3/hr 24VDC

SKU
In stock
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
30 in stock
VIC WarehouseEpping, VIC 3076
2 in stock
Updated 3 minutes ago
Shipping & pickup →
$129.67 ex. GST $142.64 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 114
  • Width (mm) 114
  • Colour / Finish Grey
  • IP Rating IP54

Filter Fan 114 x 114 25m3/hr 24VDC

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features Unit IP-V1124
Air flow rate (free blow) m³/h 26 (30)
Flow rate with exit filter m³/h 15 (18)
Power supply V/Hz DC 24V
Dimensions HxLxP mm 114x114x73
Power consumption W 4
Current consumption A 0.16
Overcurrent consumption – impedance
Electric connection – 2-poles spring terminals
Duty cycle – 100%
Operating temperature °C – 10 / +70 (+14 / +158)
Protection degree/class – IP54/Class I
Noise level dB(A) 35
Flow direction – reversible: default factory setting outside-in
Bearing – ball
Filter mat (Eurovent) – G2
Service life (at 40°C) hr 50 000
Material – ABS UL94V-0 Color RAL7035
Wall thickness mm 1.2-2.4
Gasket – foam seal gasket
Weight (with packaging) kg 0.41 (0.46)
Package dimensions mm 125x125x80
Montaggio – fast clip-on
Cut-out dimensions mm 92×92
Conformity/Approvals – CE
