FIBOX ARCA Transparent Electrical Enclosure 400H x 300W x 210D IP66
Ask an expert!
- Height (mm)
- Width (mm)
- Depth (mm)
- Material
- Colour
- IP Rating
- Lock Type
- Door Type
- Transparent Door
Standards & certifications
IP66Dust-tight · powerful jets
IEC/EN/AS60529Ingress protection
NEMA 1, 4, 4X, 12, 13US enclosure rating
IEC/EN 62208 · 61439
Tested standards
FIBOX ARCA TRANSPARENT ELECTRICAL ENCLOSURE 400H x 300W x 210D IP66

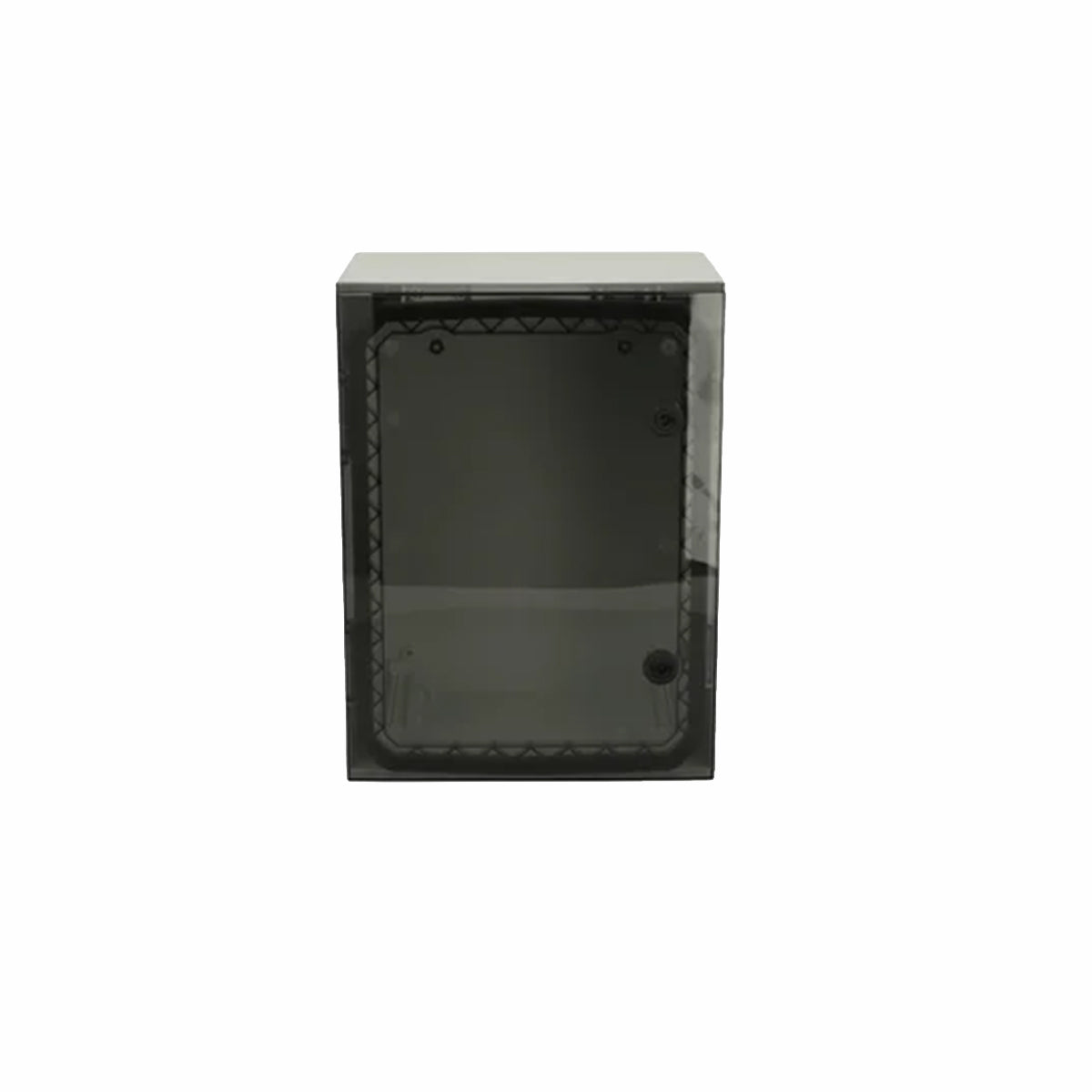

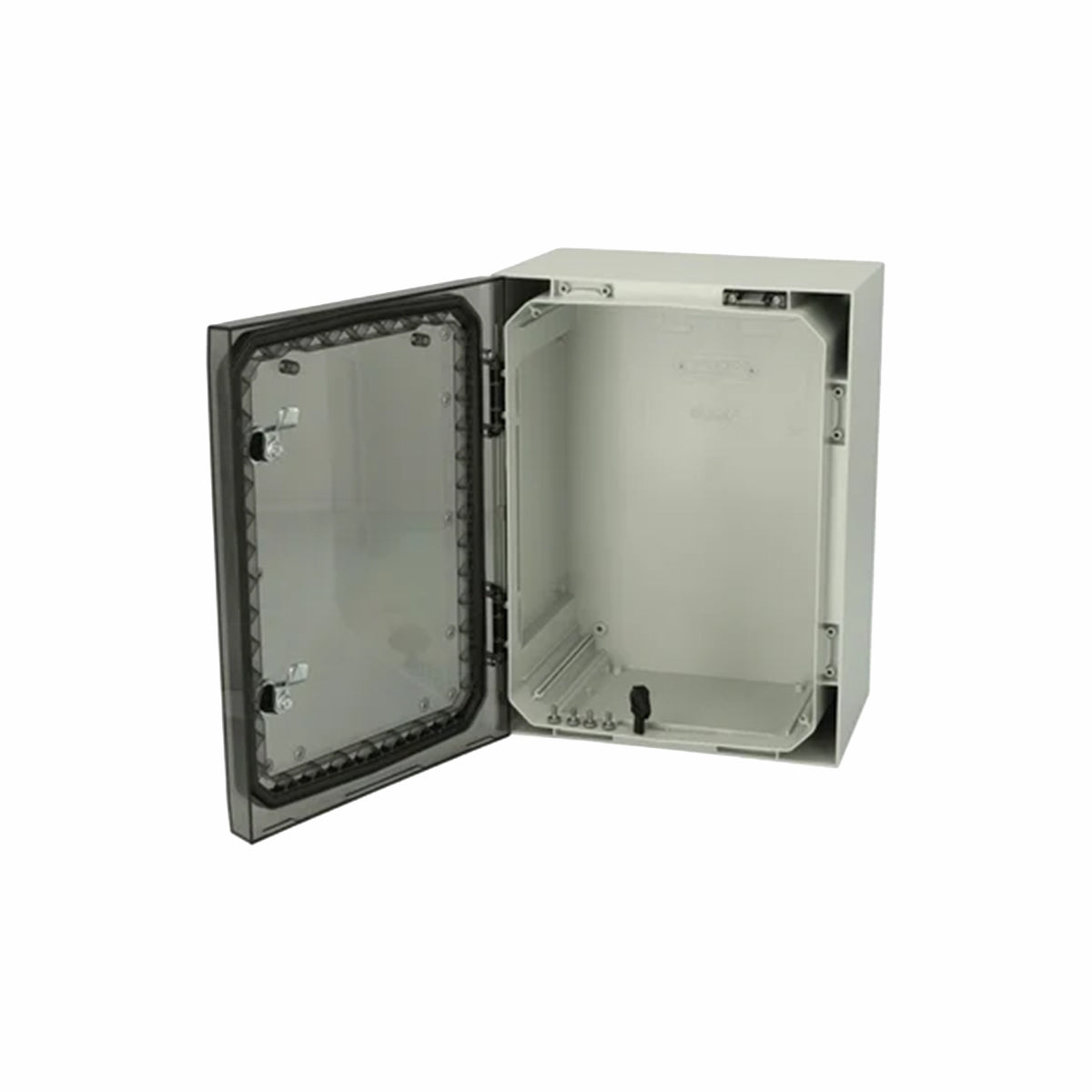

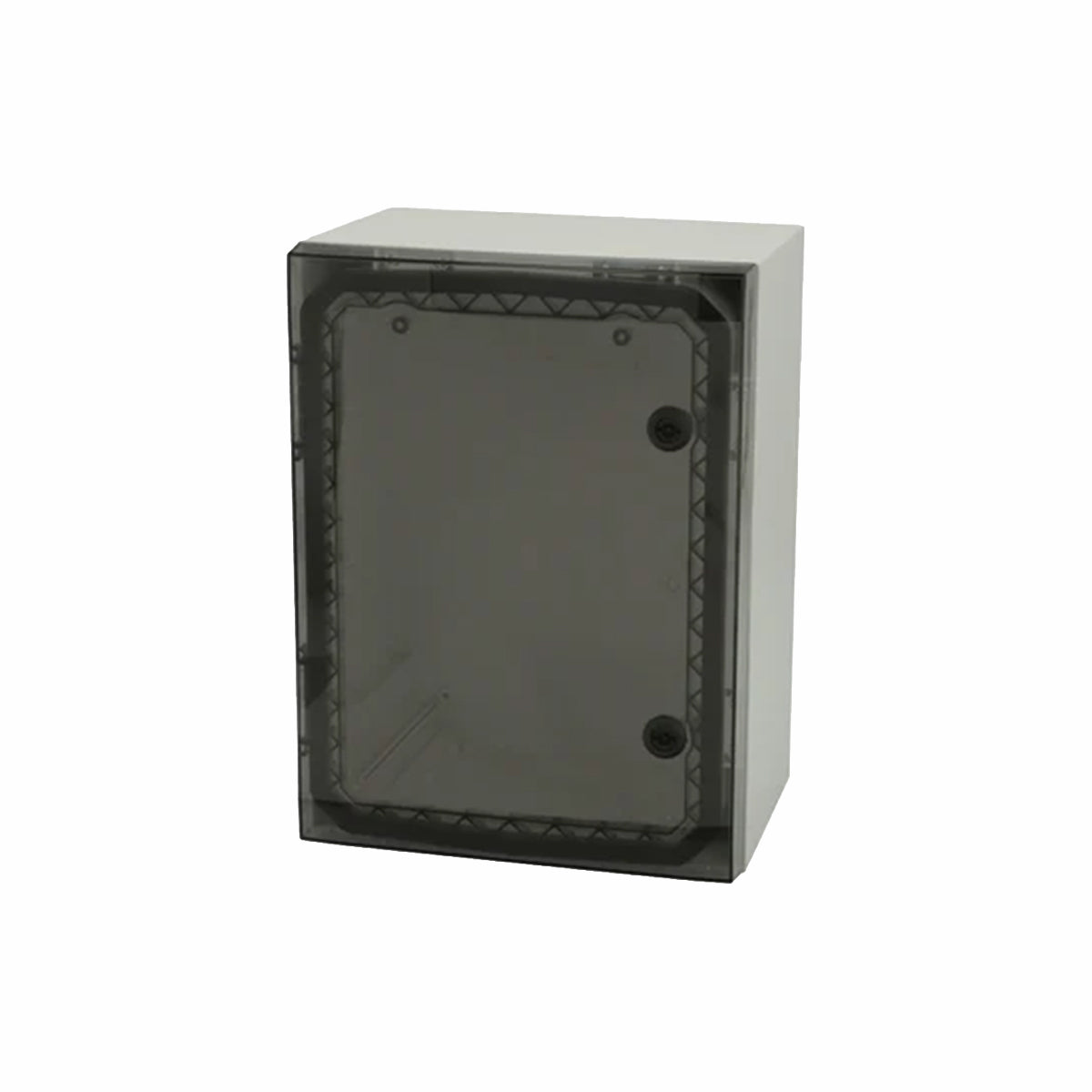

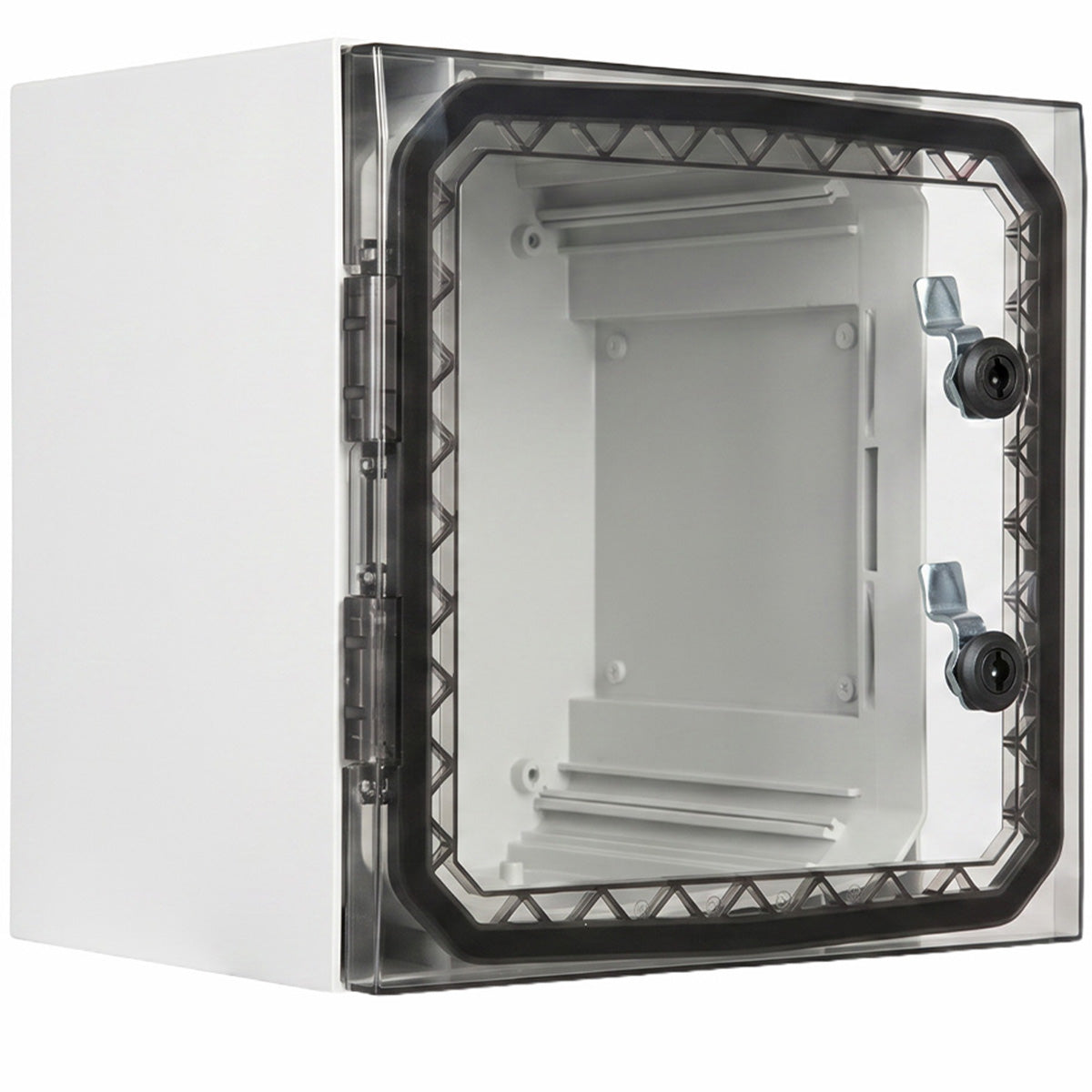

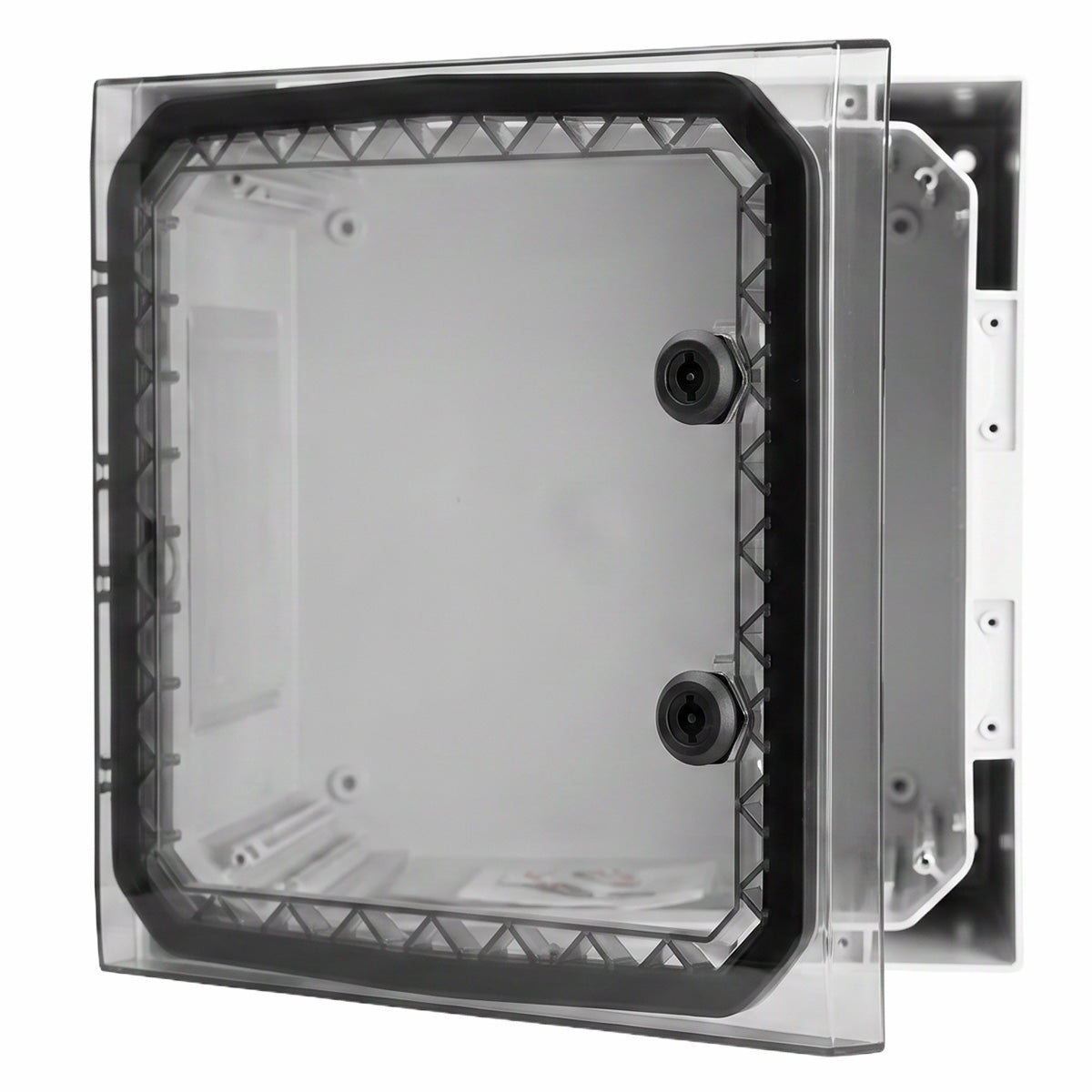

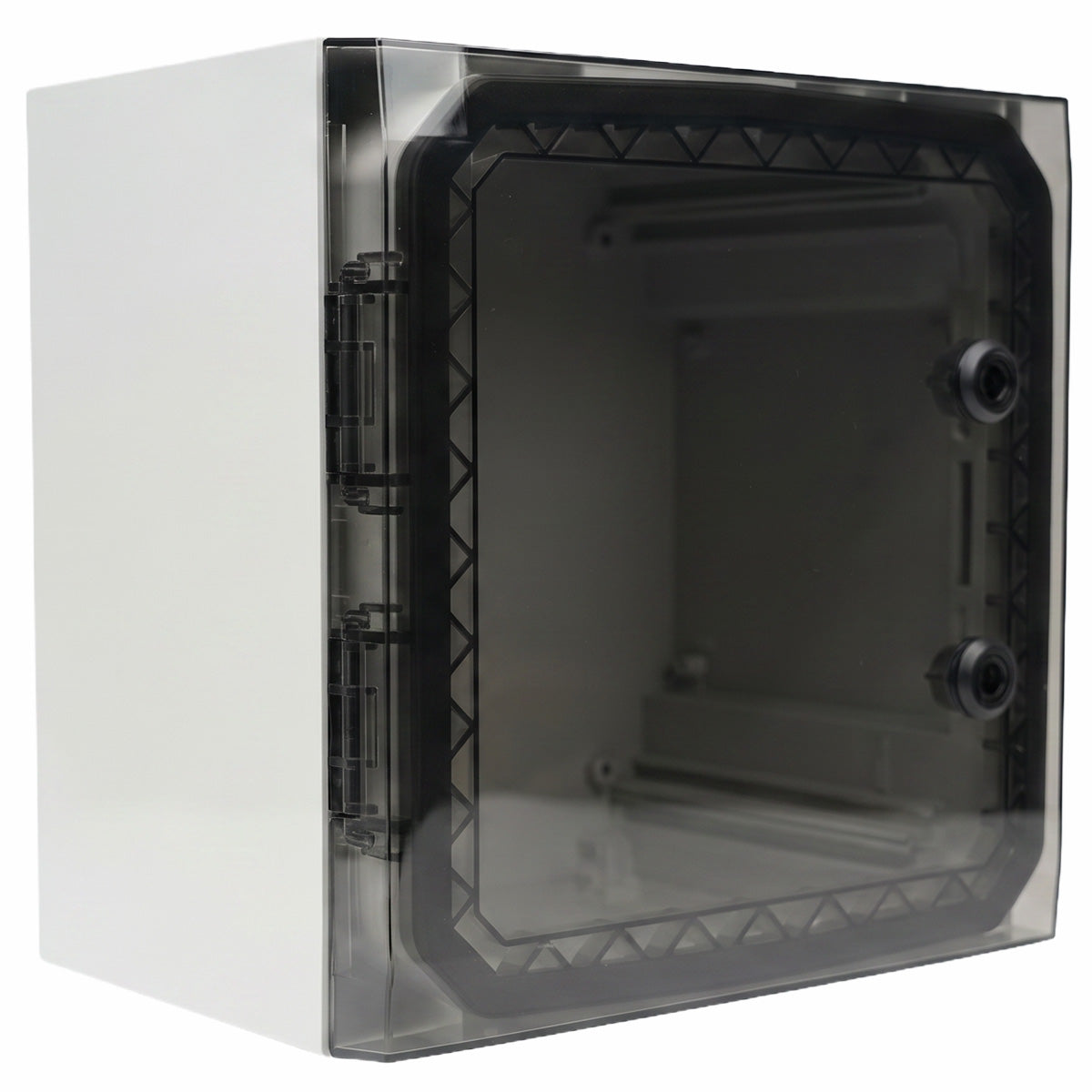

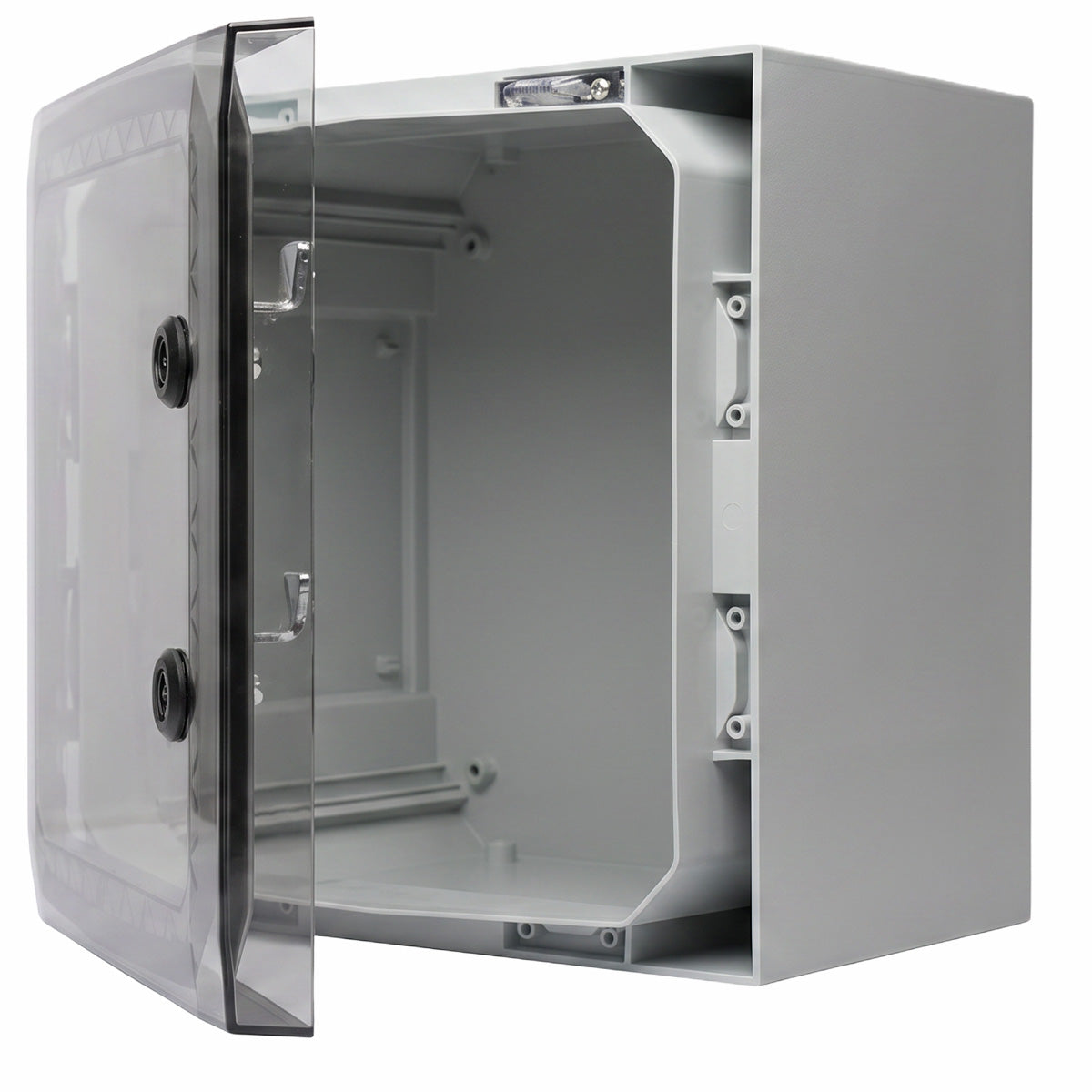

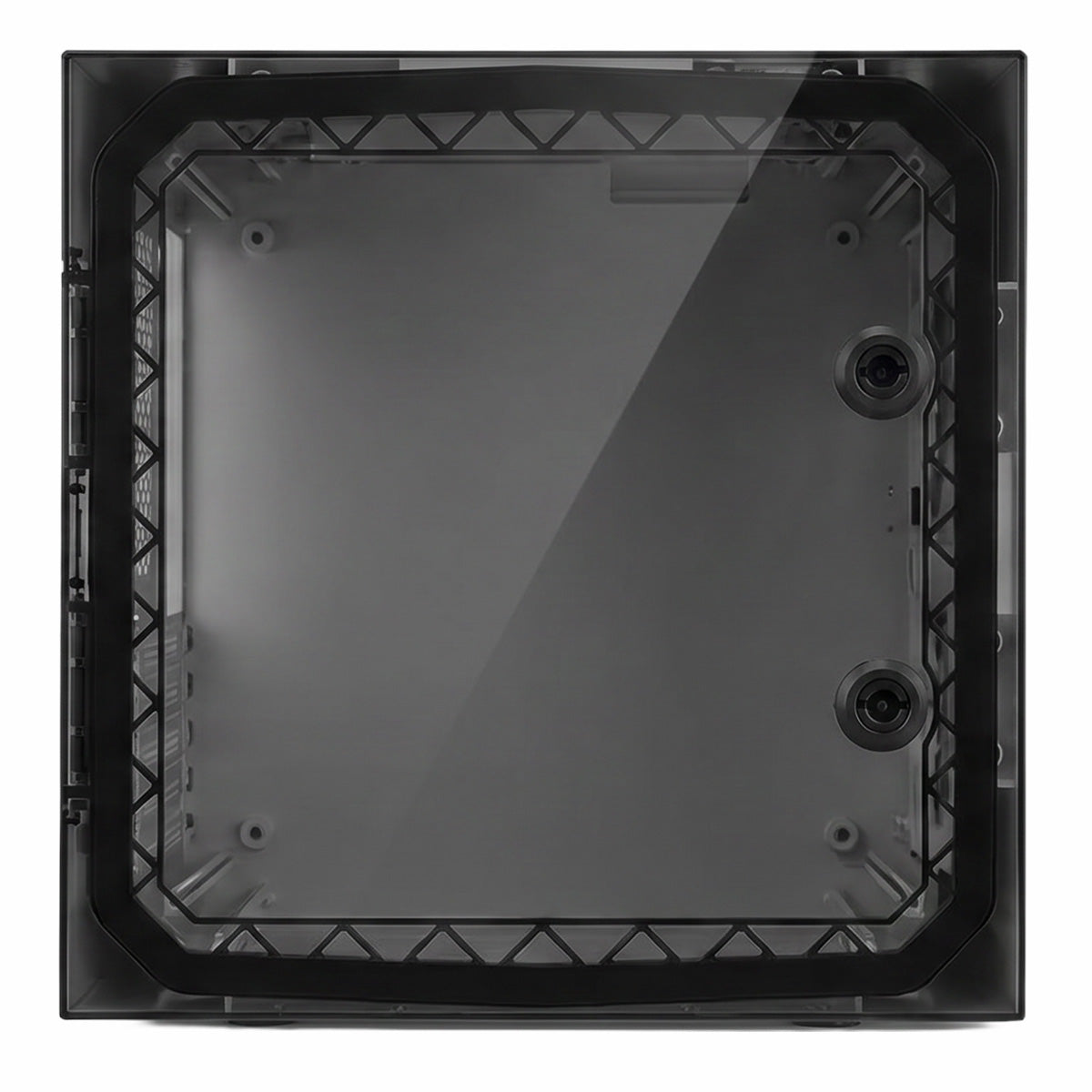

The Fibox ARCA 403021T (Part No. 8121007N) is a robust polycarbonate electrical cabinet designed for demanding environments. This totally insulated unit features a transparent cover with a two point locking mechanism, hinges on the long side, and no mounting plate. With an ingress protection rating of IP66 and impact resistance of IK09, it offers excellent durability. The enclosure is halogen free, UV resistant to UL 746C standards, and meets flammability rating UL 94 5VA. It is verified through a third party EPD registration, ensuring environmentally conscious manufacturing.
Technical Specifications
| Dimensions (H x W x D) | 400 x 300 x 210 mm (15.75 x 11.81 x 8.27 inch) |
| Material & Colors | Polycarbonate body (RAL 7035), Smoked grey cover, Polyurethane gasket |
| Operating Temperatures | Minus 40 to 80 °C (Minus 40 to 175 °F) |
| Key Ratings | IP66, IK09, Totally Insulated, Halogen Free, UL Type 1, 4, 4X, 12, 13, Glow Wire 960°C |
| Standards | EN 62208:2011, IEC 62208:2011, EN 61439-1:2011, IEC 61439-1:2011, EN 61439-4:2013, IEC 61439-4:2012 |
| Environmental Data | A1-A3 GWP [INSERT kgCO2e] (Standard EN15804:2012 + A2:2019), EPD HUB-4865 Verified |
| Packaging | 1 Piece (ETIM: EC000261) |
| Identifiers | EAN 6418074317957, SSTL 3425129, Denmark 8212056446, Sweden 2507047, Norway [2504669] |
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
