Fibox ARCA Polycarbonate Enclosure 800H x 600W x 300D IP66 with Swinghandle to Suit Standard Half Euro Barrel — FIBOX
Fibox ARCA Polycarbonate Enclosure 800H x 600W x 300D IP66 with Swinghandle to Suit Standard Half Euro Barrel — FIBOX

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

FIBOX

Fibox ARCA Polycarbonate Enclosure 800H x 600W x 300D IP66 with Swinghandle to Suit Standard Half Euro Barrel

SKU
$930.72 ex. GST $1,023.79 inc. GST
In stock
51 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 800
  • Width (mm) 600
  • Depth (mm) 300
  • Material Polycarbonate
  • Colour Grey
  • IP Rating IP66
  • Lock Type Swinghandle
  • Door Type Single Door
  • Flammability Rating UL 94 5VA

Standards & certifications

IP66Dust-tight · powerful jets IK10Impact rated NEMAUS enclosure rating IEC/EN 62208 · 614391 · 614394 Tested standards
Product Datasheet PDF Dimensional Drawing PDF CAD File STEP Declaration of Conformity PDF

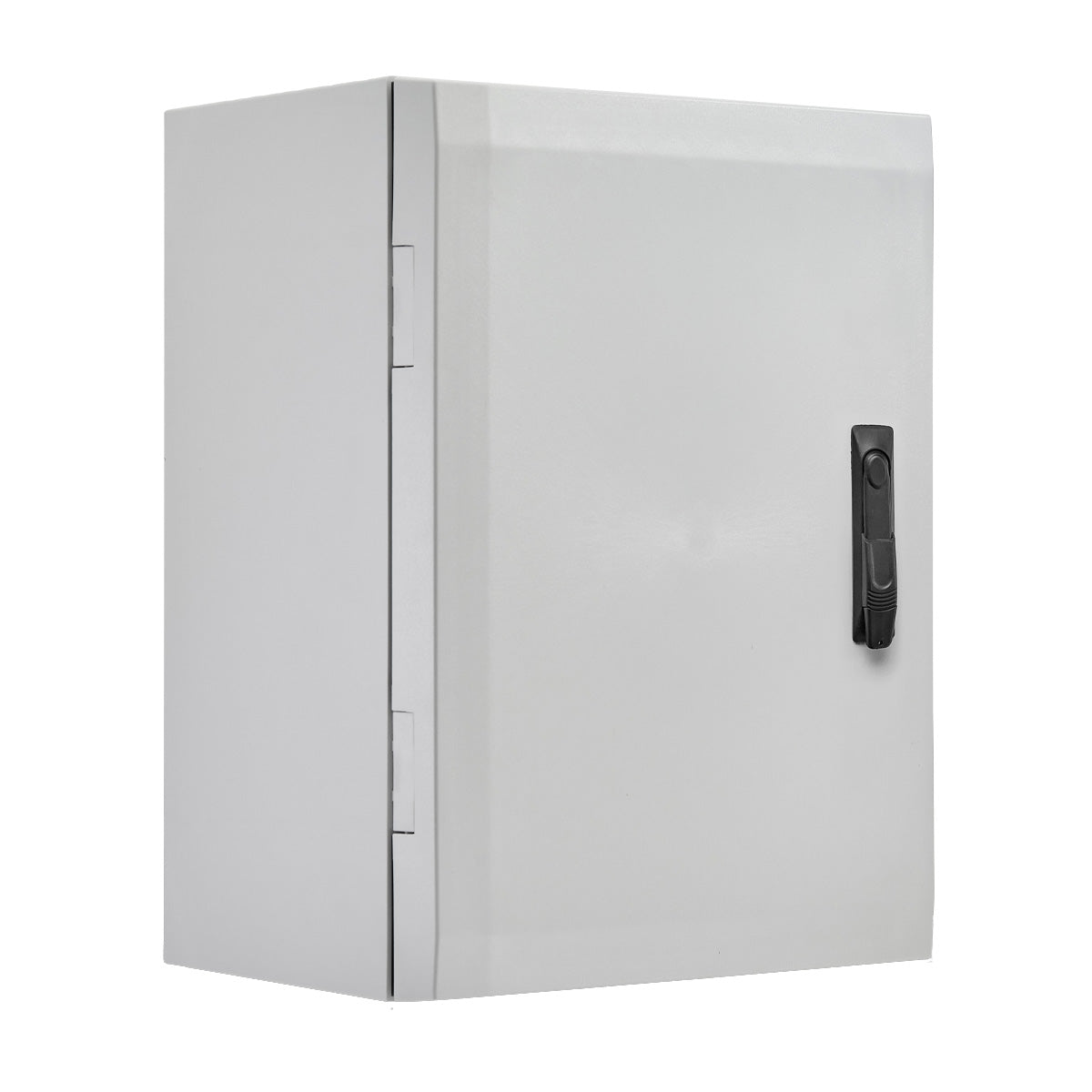

The FIBOX ARCA-806030S is a polycarbonate wall-mount enclosure with a swinghandle locking mechanism to suit a standard half-euro barrel cylinder — designed for applications requiring tool-free access or cylinder lock security without additional hardware.

Rated IP66 and IK10, with a polyurethane FIP foam-in-place gasket, UV-stabilised body, and supplied with an internal mounting plate and stainless steel grounding stud.

  • IP Rating: IP66
  • IK Rating: IK10
  • Material: Polycarbonate
  • Colour: Grey (RAL 7035)
  • Seal: Polyurethane FIP
  • Lock: Swinghandle (half-euro barrel)
  • Dimensions: 800H × 600W × 300D mm
  • Operating Temp: -40°C to 80°C
  • Flammability: UL 94 5VA
  • Country of Origin: Finland

Certifications: IP66 · IK10 · NEMA. Standards: IEC 62208 · IEC 61439-1 · IEC 61439-4.
