Home » Enclosures» Fibox ARCA Polycarbonate Enclosure 500H x 500W x 210D IP66 with Swinghandle to Suit Standard Half Euro Barrel
Fibox ARCA Polycarbonate Enclosure 500H x 500W x 210D IP66 with Swinghandle to Suit Standard Half Euro Barrel — FIBOX
Fibox ARCA Polycarbonate Enclosure 500H x 500W x 210D IP66 with Swinghandle to Suit Standard Half Euro Barrel — FIBOX

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

FIBOX

Fibox ARCA Polycarbonate Enclosure 500H x 500W x 210D IP66 with Swinghandle to Suit Standard Half Euro Barrel

SKU
$427.12 ex. GST $469.83 inc. GST
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated 4 minutes ago
Shipping & pickup →
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 500
  • Width (mm) 500
  • Depth (mm) 210
  • Material Polycarbonate
  • Colour Grey
  • IP Rating IP66
  • Lock Type Swinghandle
  • Door Type Single Door
  • Flammability Rating UL 94 5VA

Standards & certifications

IP66Dust-tight · powerful jets IK10Impact rated NEMAUS enclosure rating IEC/EN 62208 · 614391 · 614394 Tested standards
Product Datasheet PDF Dimensional Drawing PDF CAD File STEP Declaration of Conformity PDF

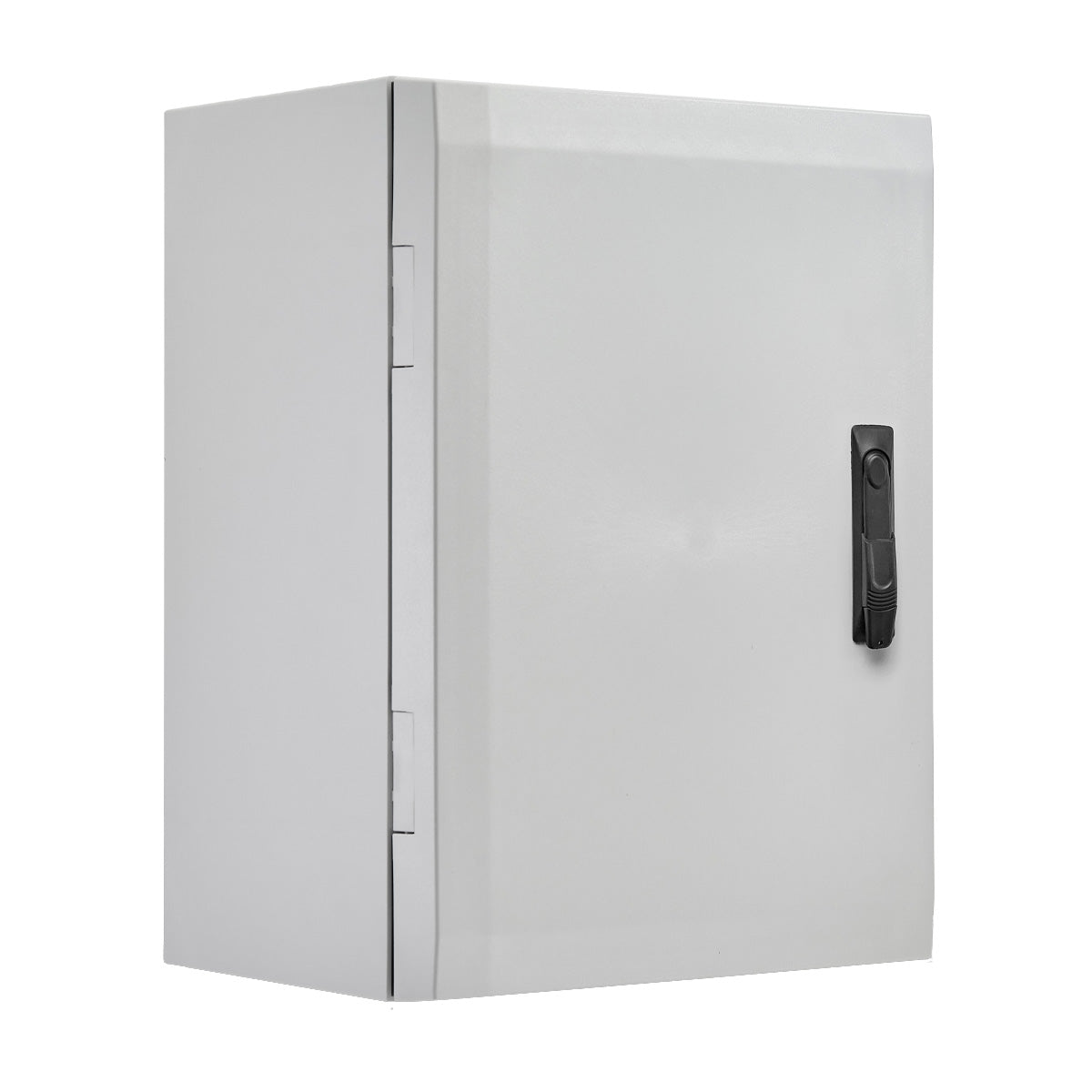

The FIBOX ARCA-505021S is a polycarbonate wall-mount enclosure with a swinghandle locking mechanism to suit a standard half-euro barrel cylinder — designed for applications requiring tool-free access or cylinder lock security without additional hardware.

Rated IP66 and IK10, with a polyurethane FIP foam-in-place gasket, UV-stabilised body, and supplied with an internal mounting plate and stainless steel grounding stud.

  • IP Rating: IP66
  • IK Rating: IK10
  • Material: Polycarbonate
  • Colour: Grey (RAL 7035)
  • Seal: Polyurethane FIP
  • Lock: Swinghandle (half-euro barrel)
  • Dimensions: 500H × 500W × 210D mm
  • Operating Temp: -40°C to 80°C
  • Flammability: UL 94 5VA
  • Country of Origin: Finland

Certifications: IP66 · IK10 · NEMA. Standards: IEC 62208 · IEC 61439-1 · IEC 61439-4.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
