Home » Enclosures» Fibox ARCA Polycarbonate Enclosure 400H x 600W x 210D IP66 with 2 Quarter Turn Locks, Including Mounting Plate

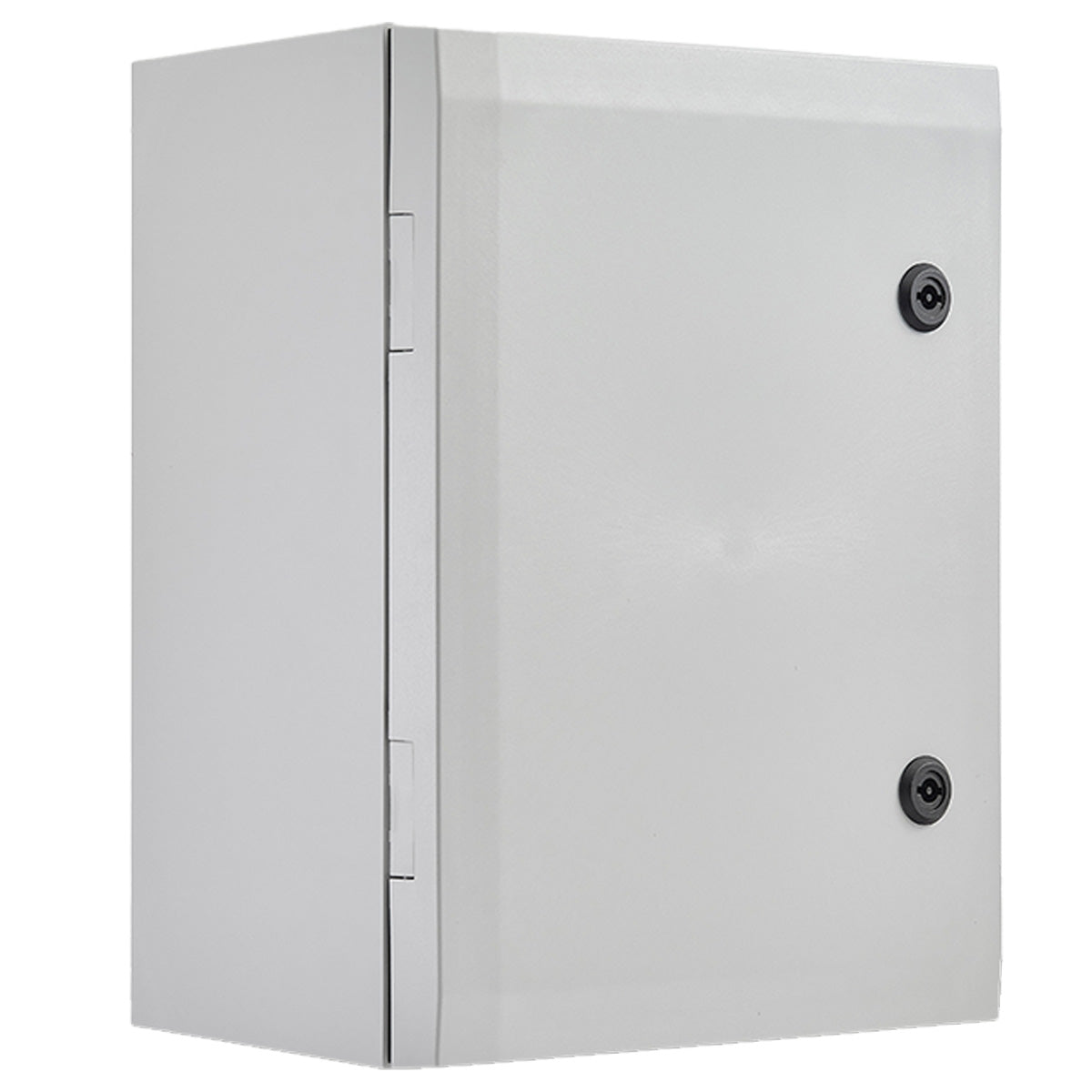

Fibox ARCA Polycarbonate Enclosure 400H x 600W x 210D IP66 with 2 Quarter Turn Locks, Including Mounting Plate — FIBOX

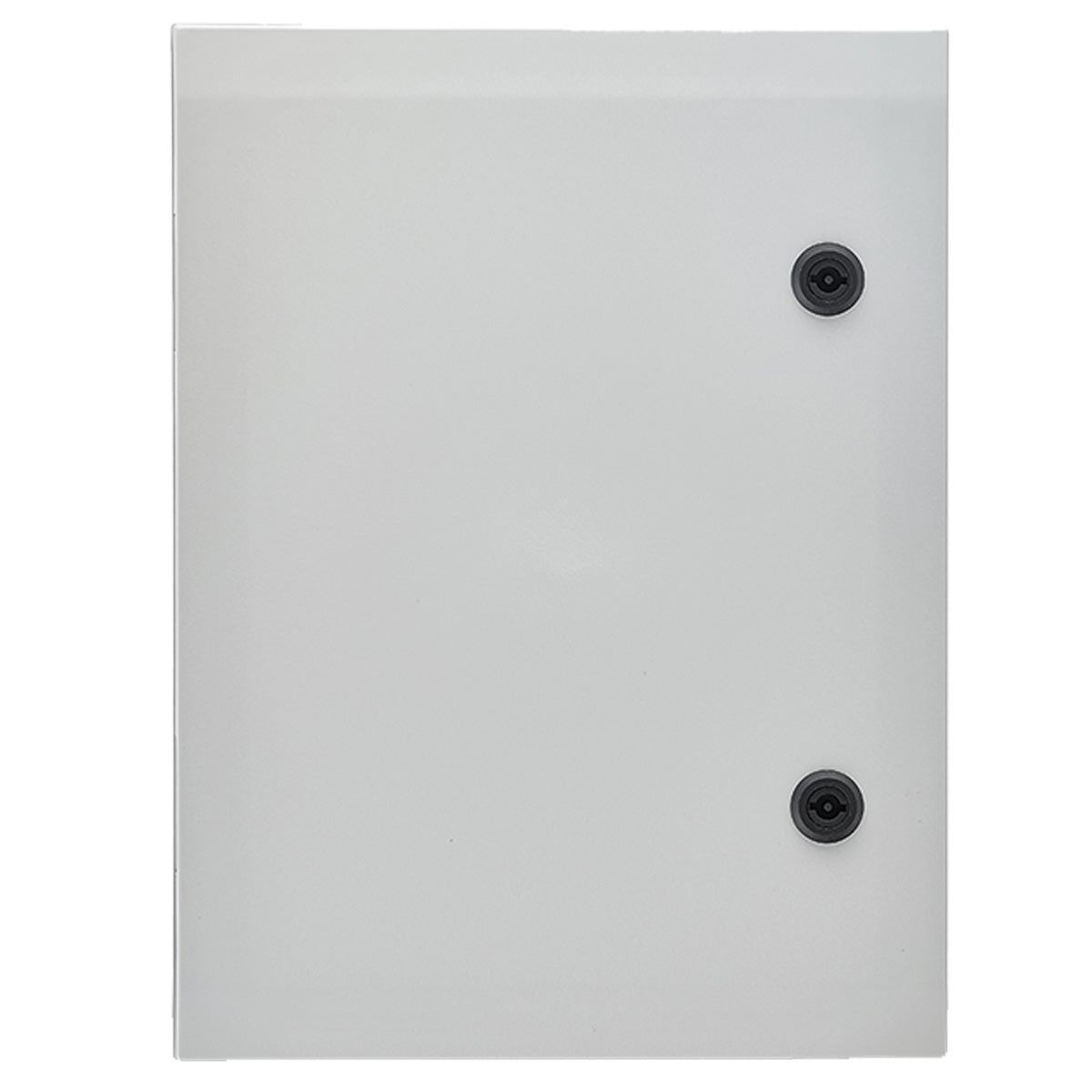

ARCA-406021 - image 2
Fibox ARCA Polycarbonate Enclosure 400H x 600W x 210D IP66 with 2 Quarter Turn Locks, Including Mounting Plate — FIBOX
ARCA-406021 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

FIBOX

Fibox ARCA Polycarbonate Enclosure 400H x 600W x 210D IP66 with 2 Quarter Turn Locks, Including Mounting Plate

SKU
$390.41 ex. GST $429.45 inc. GST
In stock
73 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 400
  • Width (mm) 600
  • Depth (mm) 210
  • Material Polycarbonate
  • Colour Grey
  • IP Rating IP66
  • Lock Type 3mm Double Bit 2-Point
  • Door Type Single Door
  • Flammability Rating UL 94 5VA

Standards & certifications

IP66Dust-tight · powerful jets IK10Impact rated NEMAUS enclosure rating IEC/EN 62208 · 614391 · 614394 Tested standards
Product Datasheet PDF Dimensional Drawing PDF CAD File STEP Declaration of Conformity PDF

The Fibox ARCA 406021 is a 400H × 600W × 210D mm polycarbonate wall-mount enclosure rated IP66 and IK10, engineered for panel builders and electrical installations in harsh and demanding environments. The ARCA series offers the structural strength of a metal cabinet with the corrosion resistance and UV stability of high-grade polycarbonate — certified to IEC 62208, IEC 61439-1, and IEC 61439-4.

Supplied complete with PUR foam-in-place gasket, 3mm double-bit 2-point locks with key, mounting plate, and door guide. Halogen-free construction (DIN/VDE 0472), UL 94 5VA flammability rating, glow wire tested to 960°C. Suitable for continuous operation from -40°C to 80°C. NEMA Type 1, 4, 4X, 12, 13 rated.

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
