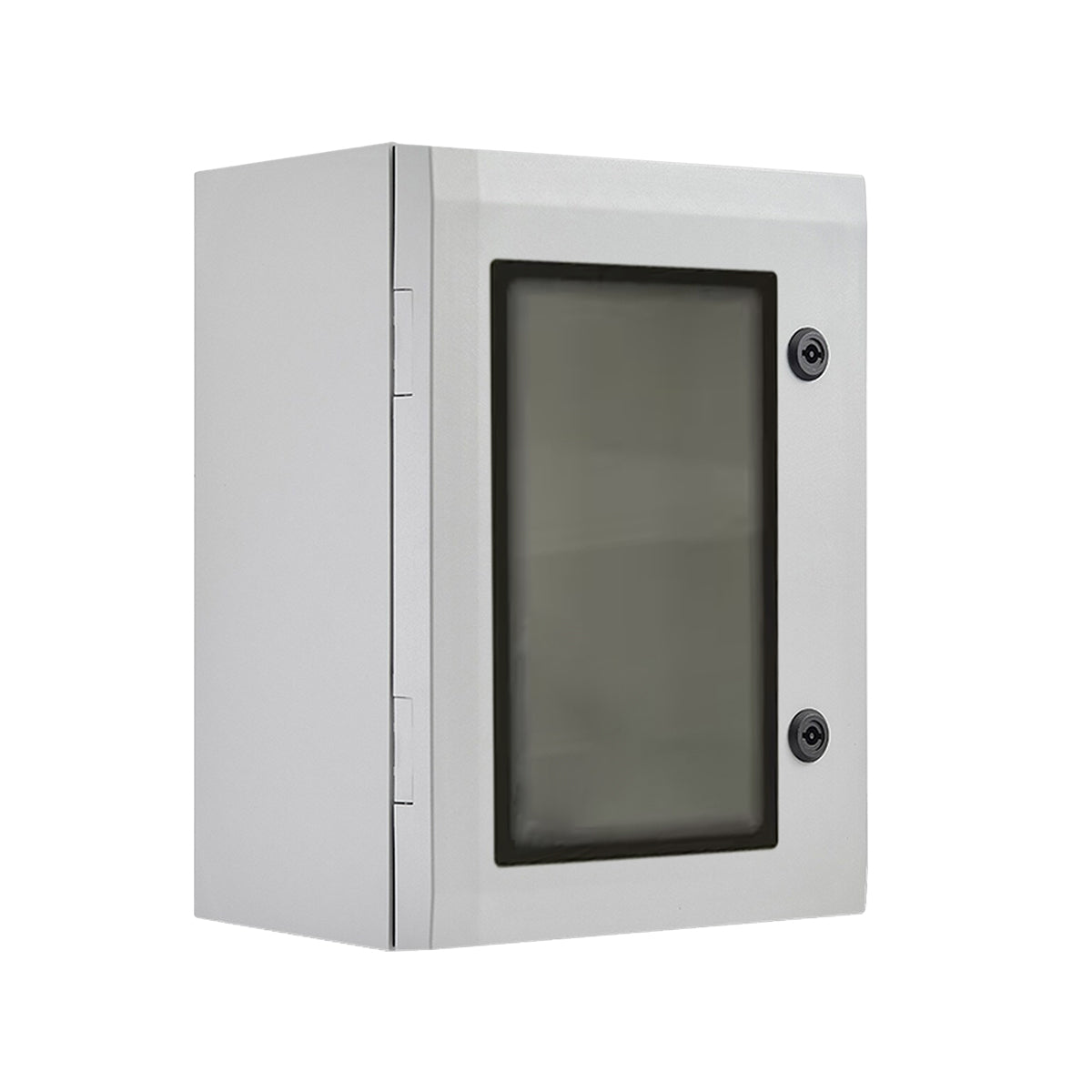

ARCA Series Polycarbonate Enclosure 400H x 300W x 210D IP65 Grey | ARCA-403021. Window & Mounting Plate Included.
Ask an expert!
- Height (mm)
- Width (mm)
- Depth (mm)
- Material
- Colour
- IP Rating
- Lock Type
- Door Type
- Transparent Door
- Flammability Rating
Standards & certifications
IP66Dust-tight · powerful jets
IK10Impact rated
NEMAUS enclosure rating
IEC/EN 62208 · 614391 · 614394
Tested standards
The FIBOX ARCA-403021W is a polycarbonate wall-mount enclosure with a transparent window lid, rated IP66 and IK10. The window panel allows visual inspection of internal components without opening the enclosure — ideal for indicator lamps, displays, and status monitoring in harsh environments.
Constructed from high-impact, UV-stabilised polycarbonate with a polyurethane FIP foam-in-place gasket for a reliable, long-life seal. Supplied with a stainless steel grounding stud, internal mounting plate, and two 3mm double-bit quarter-turn locks.
- IP Rating: IP66
- IK Rating: IK10
- Material: Polycarbonate
- Colour: Grey (RAL 7035)
- Seal: Polyurethane FIP
- Lock: 3mm Double Bit 2-Point
- Dimensions: 400H × 300W × 210D mm
- Operating Temp: -40°C to 80°C
- Flammability: UL 94 5VA
- Country of Origin: Finland
Certifications: IP66 · IK10 · NEMA. Standards: IEC 62208 · IEC 61439-1 · IEC 61439-4.
