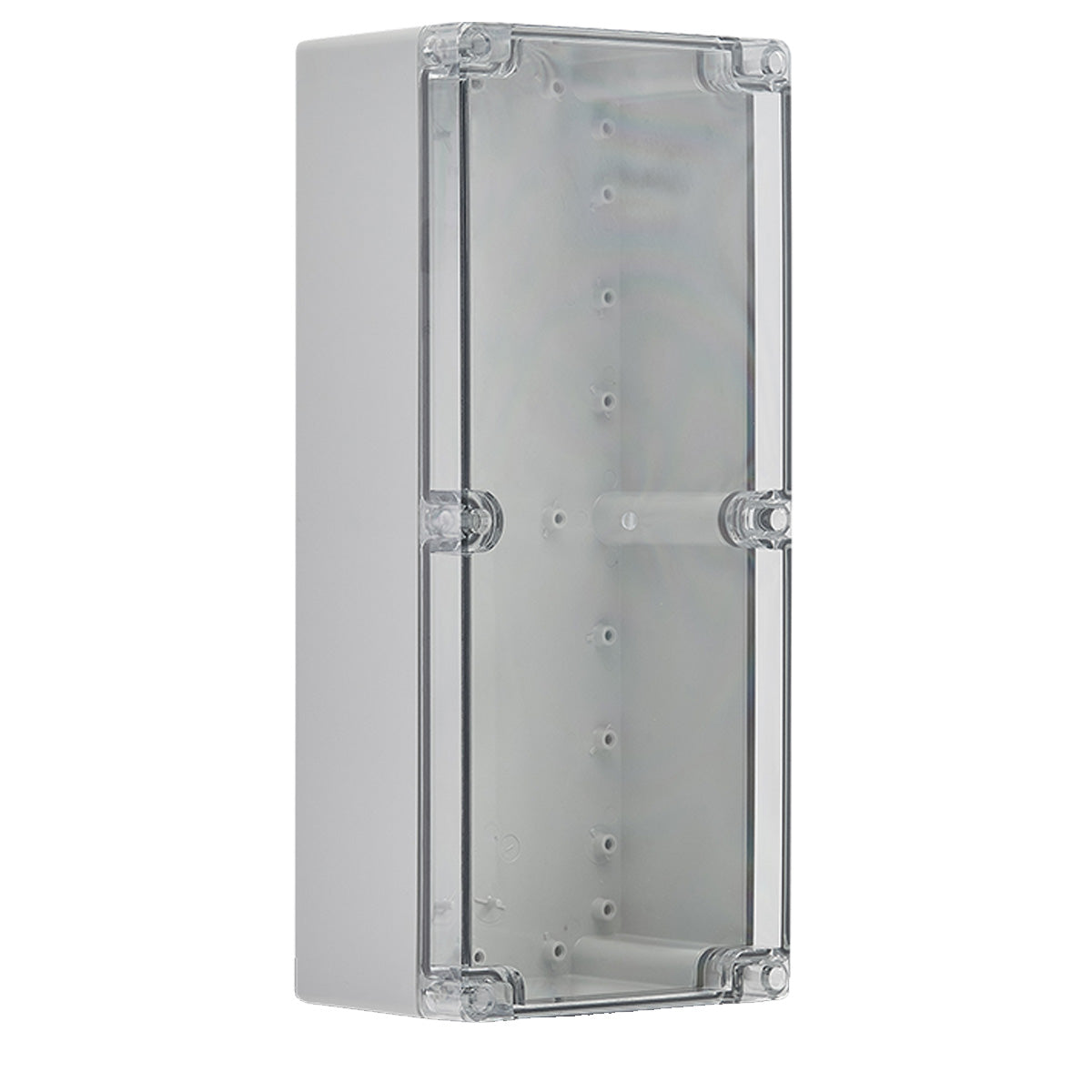

Euronord Polycarbonate Terminal Box Transparent Lid 160H x 250W x 125D IP66/67
Regular price
$65.33
ex. GST
$71.86
inc. GST
In stock
514 in stock
across 3
warehouses
Stock on hand
NSW WarehouseAuburn, NSW 2144
344 in stock
QLD WarehouseBells Creek, QLD 4551
51 in stock
VIC WarehouseEpping, VIC 3076
119 in stock
Updated
4 minutes ago
Shipping & pickup →
Free Shipping
Ask an expert!
- Height (mm)
- Width (mm)
- Depth (mm)
- Material
- Colour
- IP Rating
- Lock Type
- Door Type
- Flammability Rating
Standards & certifications
IP66Dust-tight · powerful jets
IP67Temporary immersion
IK08Impact rated
IEC 60529Ingress protection
NEMA 4XUS enclosure rating
IEC/EN 62208 · 62262
Tested standards
The FIBOX Euronord PCT-162513 is a polycarbonate wall-mount enclosure with transparent polycarbonate lid, allowing internal components to be inspected or indicator lights to be read without opening the cover. Rated IP66/IP67 and IK08, it is suited to automation panels, sensor housings, and control enclosures where visual access is required in wet or dusty environments.
Key features
- Polycarbonate body with transparent polycarbonate lid — full visual access without removing the cover
- Foam-in-place polyurethane (PUR) gasket delivers a reliable IP66/IP67 seal across the full operating range
- Ferritic stainless steel cover screws; secure, tool-required fastening
- Base accepts mounting plate and DIN-rail inserts (screws included)
- NEMA 1, 4, 4X, 12, 13 rated; SGS Fimko certified
- Halogen-free; UV-stabilised material
Technical specifications
| External dimensions (H × W × D) | 160 × 250 × 125 mm |
|---|---|
| IP rating | IP66 / IP67 |
| IK rating | IK08 |
| Operating temperature | −40°C to +80°C continuous |
| Material | Polycarbonate body, transparent polycarbonate lid |
| Gasket | Polyurethane foam-in-place (FIP) |
| Cover fastening | Stainless steel cover screws |
| Flammability | UL 746C 5V |
| Standards | IEC 62208, IEC 60529, IEC 62262 |
| NEMA | 1, 4, 4X, 12, 13 |
| EAN | 6418074003812 |
Stocked in Australia. Contact the TROPAC team for volume pricing or technical support.
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
