Euronord Polycarbonate Terminal Box Transparent Lid 120H x 240W x 100D IP66/67 — FIBOX
PCT-122410 - image 1
Euronord Polycarbonate Terminal Box Transparent Lid 120H x 240W x 100D IP66/67 — FIBOX
PCT-122410 - image 1

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

FIBOX

Euronord Polycarbonate Terminal Box Transparent Lid 120H x 240W x 100D IP66/67

SKU
$38.37 ex. GST $42.21 inc. GST
In stock
33 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 120
  • Width (mm) 240
  • Depth (mm) 100
  • Material Polycarbonate
  • Colour Clear
  • IP Rating IP66/IP67
  • Transparent Door
  • Flammability Rating UL 94 5VA

Standards & certifications

IP66Dust-tight · powerful jets IP67Temporary immersion NEMAUS enclosure rating IEC/EN 62208 · 614391 · 614394 Tested standards
Declaration of Conformity PDF

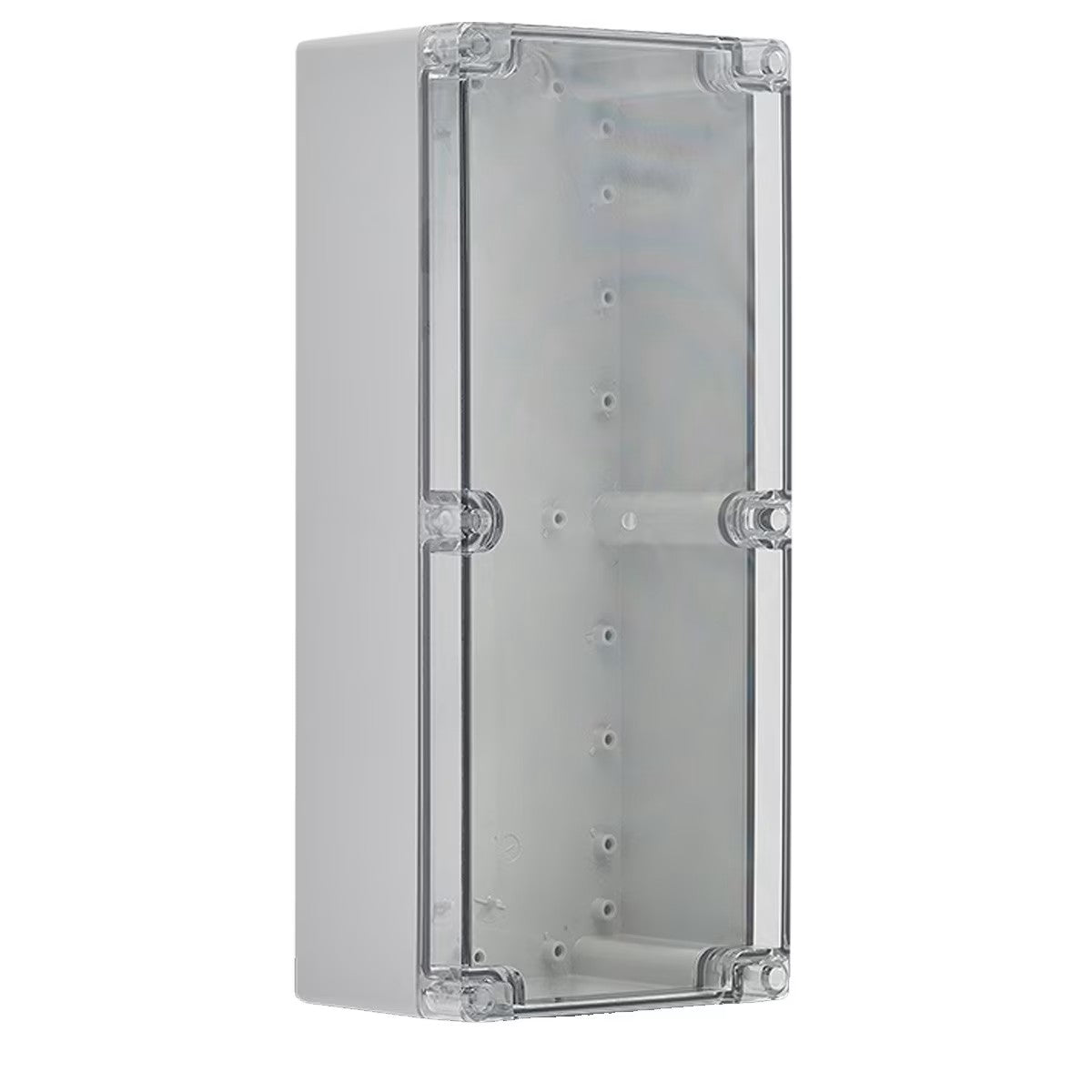

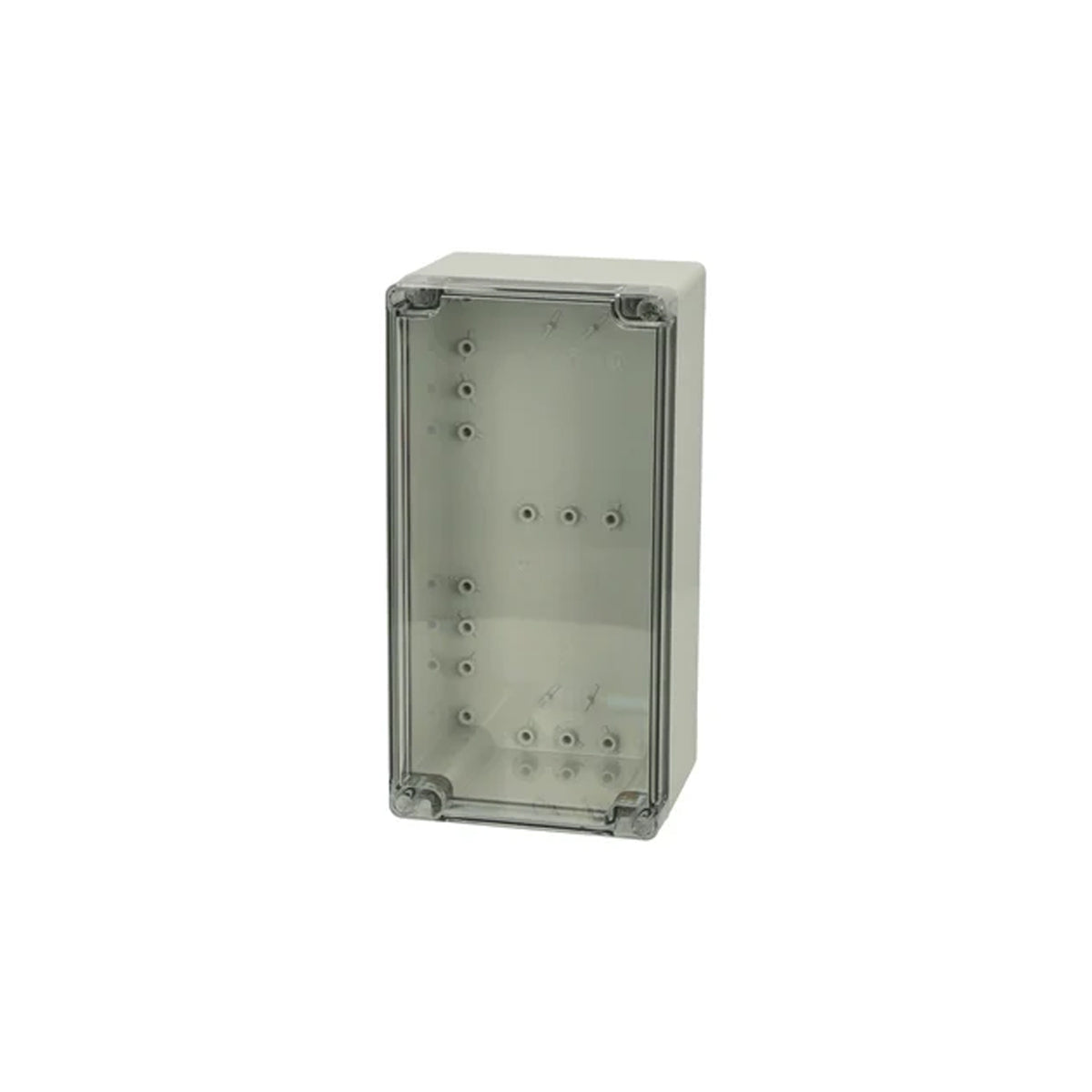

The FIBOX PCT-122410 is a polycarbonate terminal box with a transparent lid, rated IP66 and IP67. The clear cover allows visual inspection of wiring and connections without opening the enclosure, making it well-suited for junction and terminal applications in wet or outdoor environments.

Constructed from UV-stabilised polycarbonate with a polyurethane FIP foam-in-place gasket. Operating temperature range -40°C to 80°C.

  • IP Rating: IP66/IP67
  • Material: Polycarbonate
  • Lid: Transparent
  • Seal: Polyurethane FIP
  • Dimensions: 120H × 240W × 100D mm
  • Operating Temp: -40°C to 80°C
  • Flammability: UL 94 5VA
  • Country of Origin: Finland

Certifications: IP66 · IP67 · NEMA. Standards: IEC 62208 · IEC 61439-1 · IEC 61439-4.
