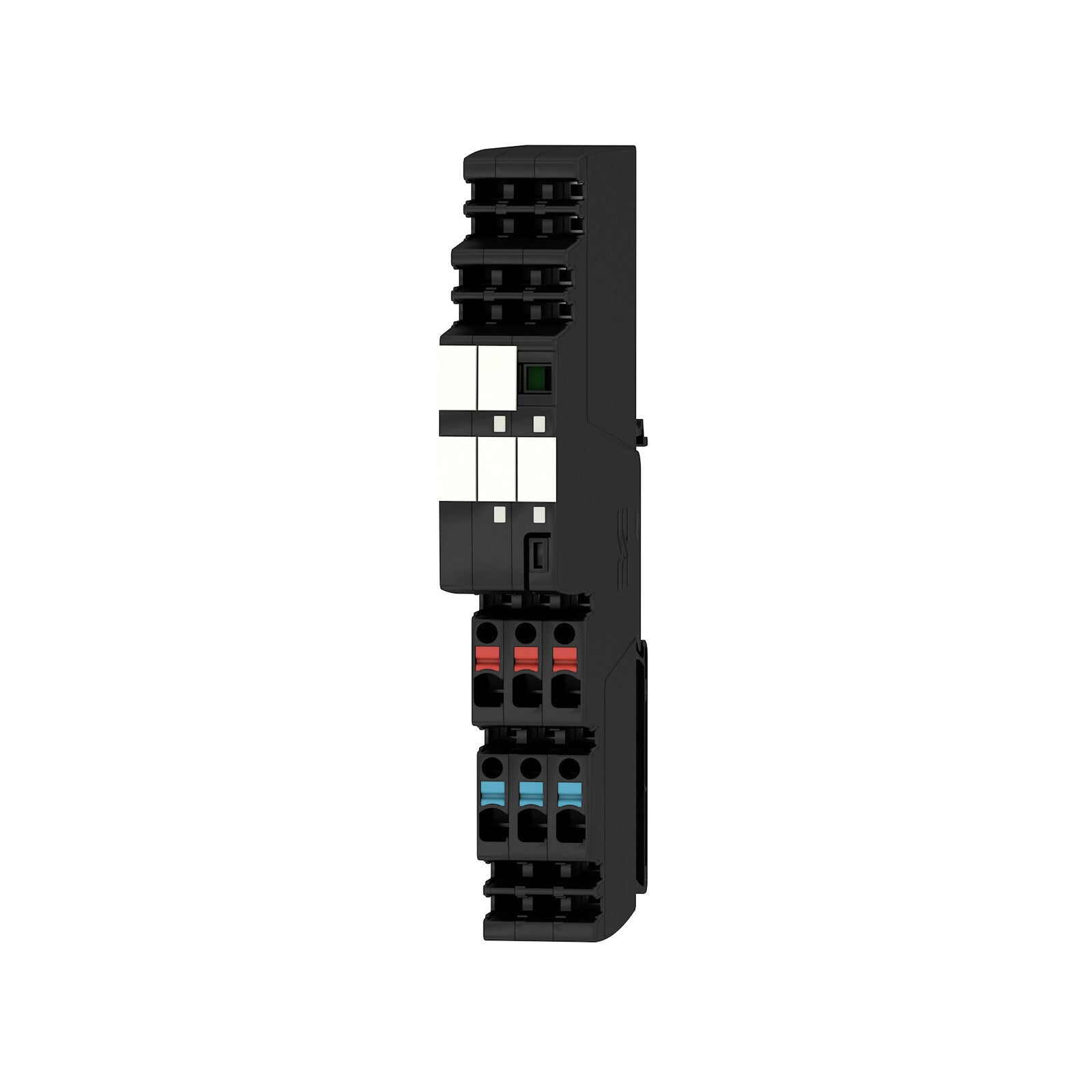

ELECTRONIC LOAD MONITORING, 6 A, 24 V DC | AMG ELM-6D CO

The Weidmüller maxGUARD AMG ELM-6D CO is a 6 A electronic load monitoring module in which the D suffix buys you a relay-switched, two-pole output: both poles of the load are disconnected on trip rather than the positive leg alone, which matters for sensor and instrument circuits that must be fully isolated. The CO variant belongs to the extended maxGUARD range for shipbuilding and Ex applications. Rated current is adjustable and the module accepts up to 15,000 µF of capacitive load, with a 1 s switch-on delay to ride through inrush.

• Function: Electronic load monitoring module with relay-switched two-pole load disconnection and integrated potential distribution

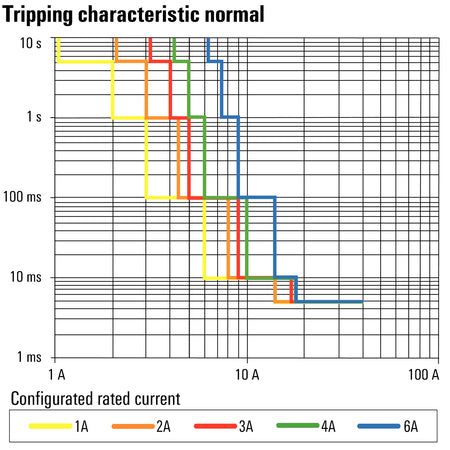

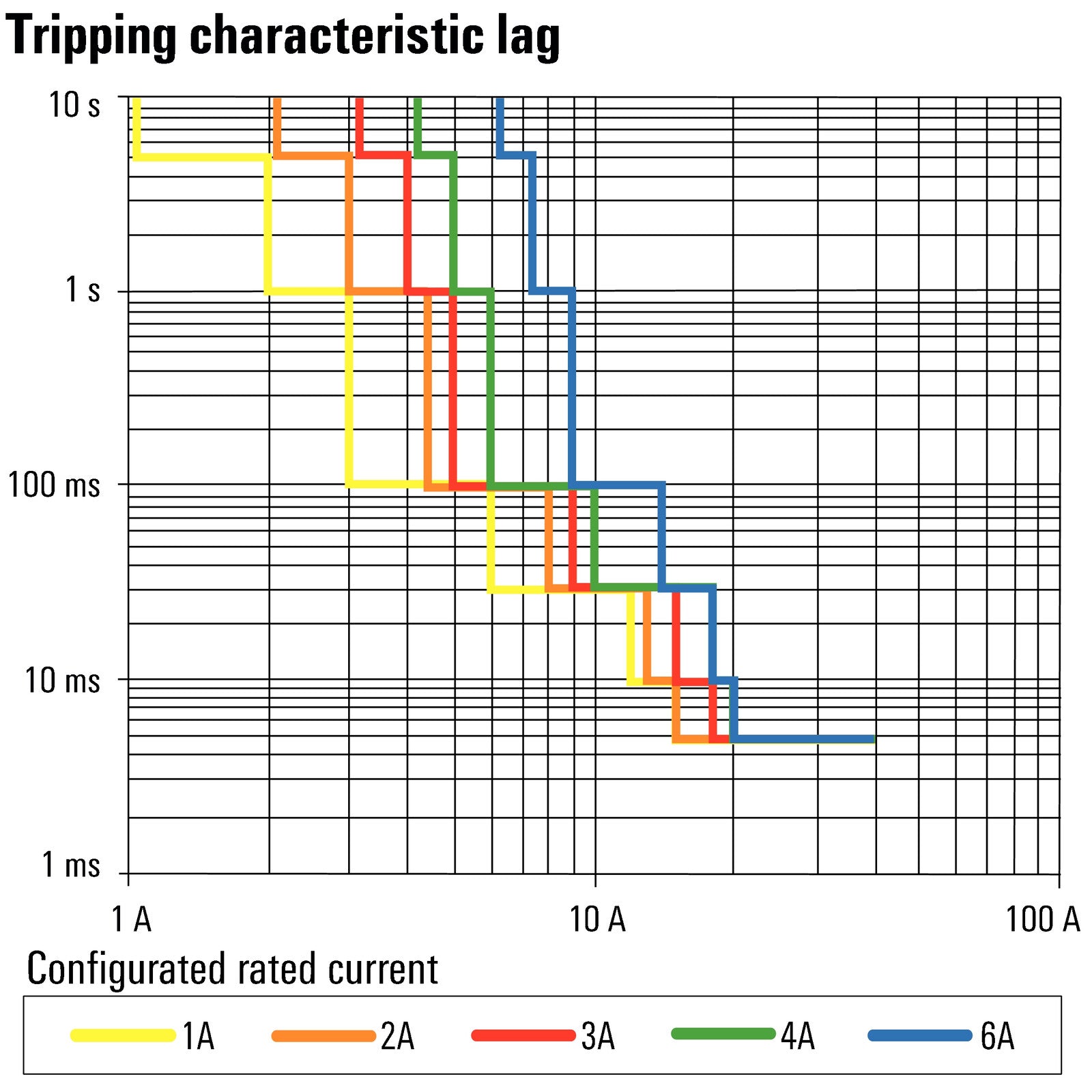

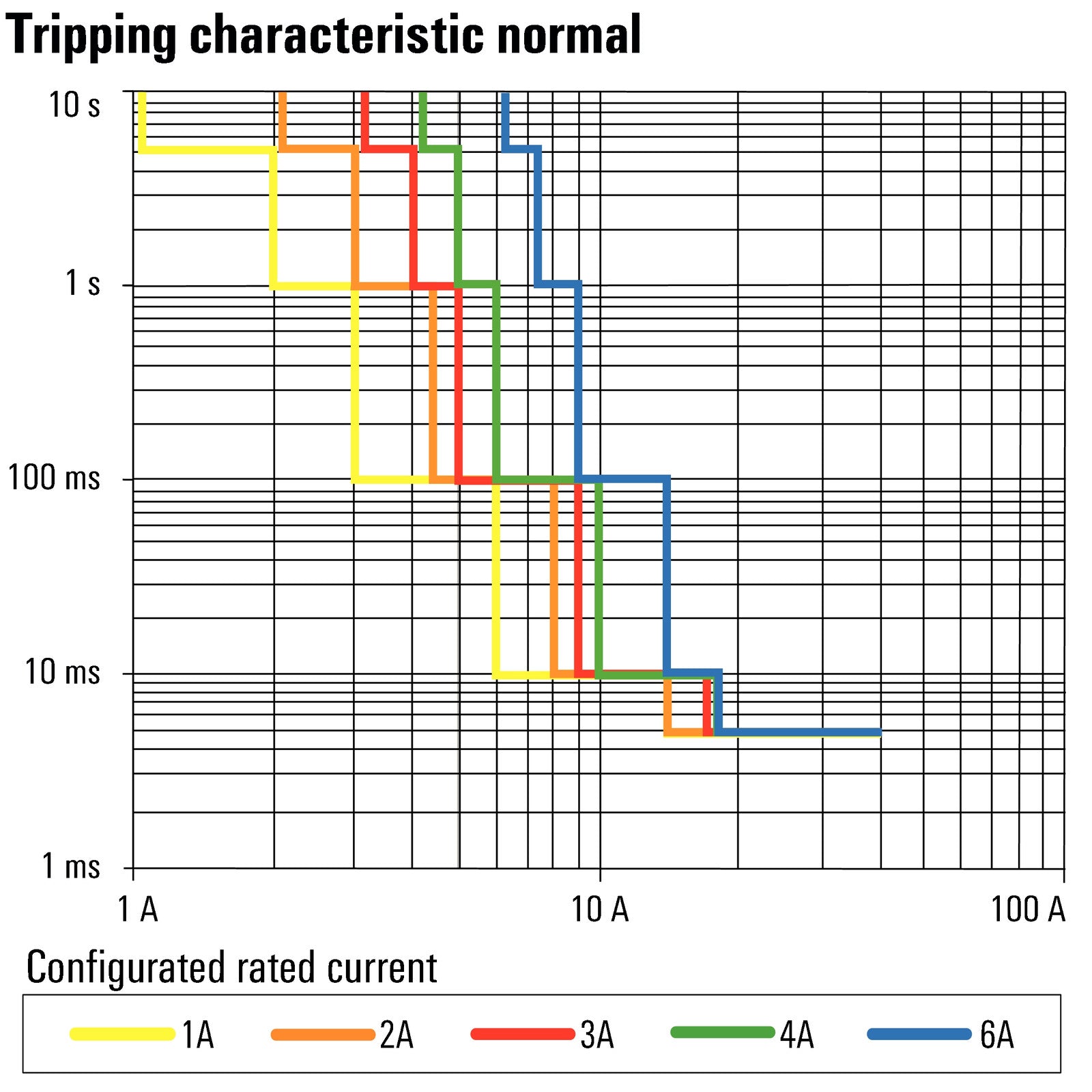

• Rated current: 6 A, adjustable

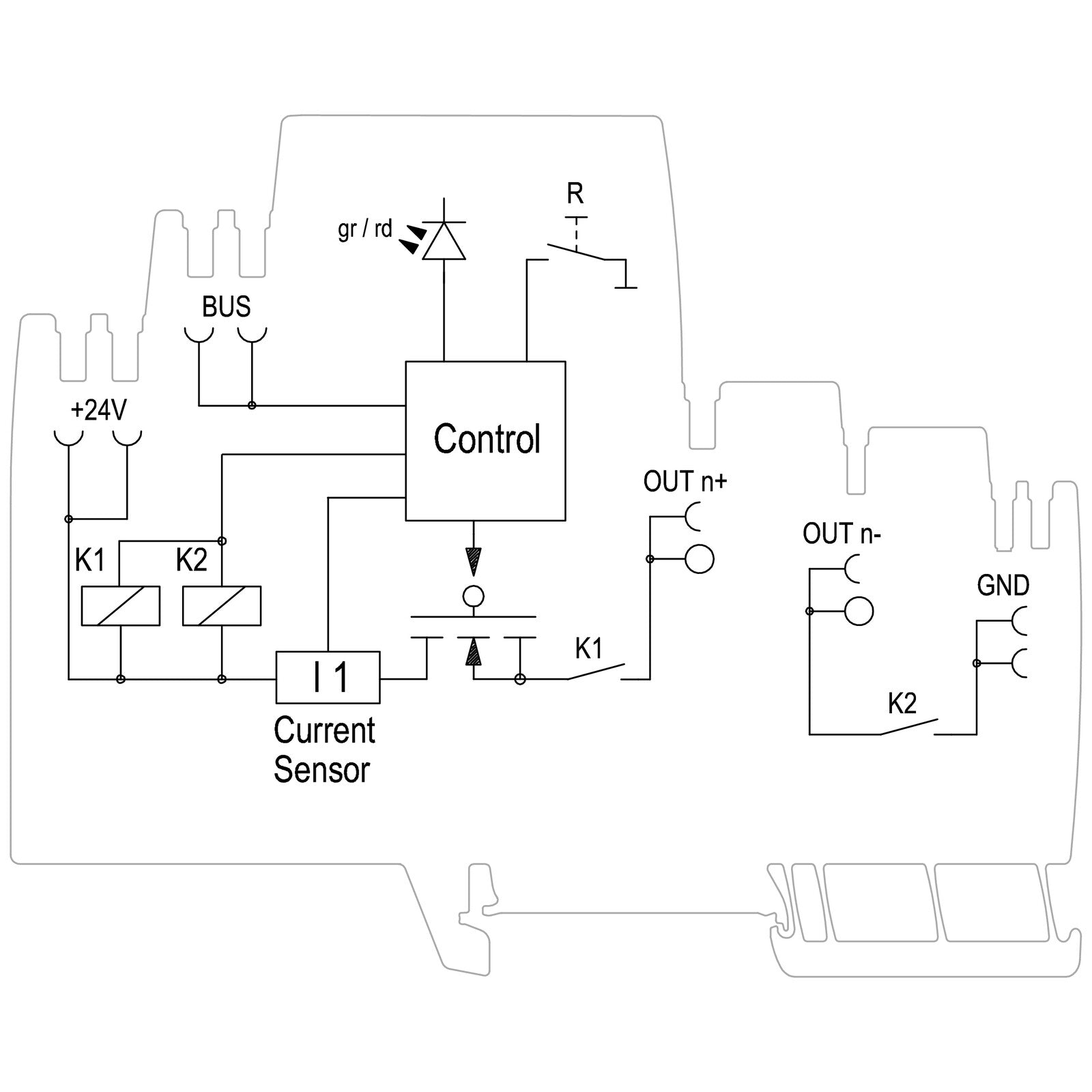

• Output switching: Relay to activate the output; all-pole (two-pole) load disconnection on trip
• Supply voltage: 24 V DC, range 18…30 V DC
• Current consumption: 40 mA idle, I(out) + 50 mA at full load
• Capacitive load: 15,000 µF
• Switch-on delay: 1 s
• Signalling outputs: Transistor output, positive-switching — pre-warning and alarm
• Status LEDs: Green (fault-free operation; flashing when I(out) > 90 % of rated), red (load monitoring disconnected; flashing when triggered; rapid flashing on internal error)
• Control: Function key, activation time < 3 s for Reset / ON
• Output terminals: 6 (3 x +, 3 x −)
• Connection system: PUSH IN
• Width: 18.3 mm
• Dimensions (W x H x D): 18.3 mm x 125 mm x 96.5 mm
• Operating temperature: −25 °C to +70 °C
• Protection degree: IP20
• Approvals: UL (file E258476), RoHS compliant
• Order number: 2082440000
