Home » Enclosures» Cooling & Heating» Internal Enclosure Fan 24VDC
Internal Enclosure Fan 24VDC — IP Enclosures
Internal Enclosure Fan 24VDC — IP Enclosures

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

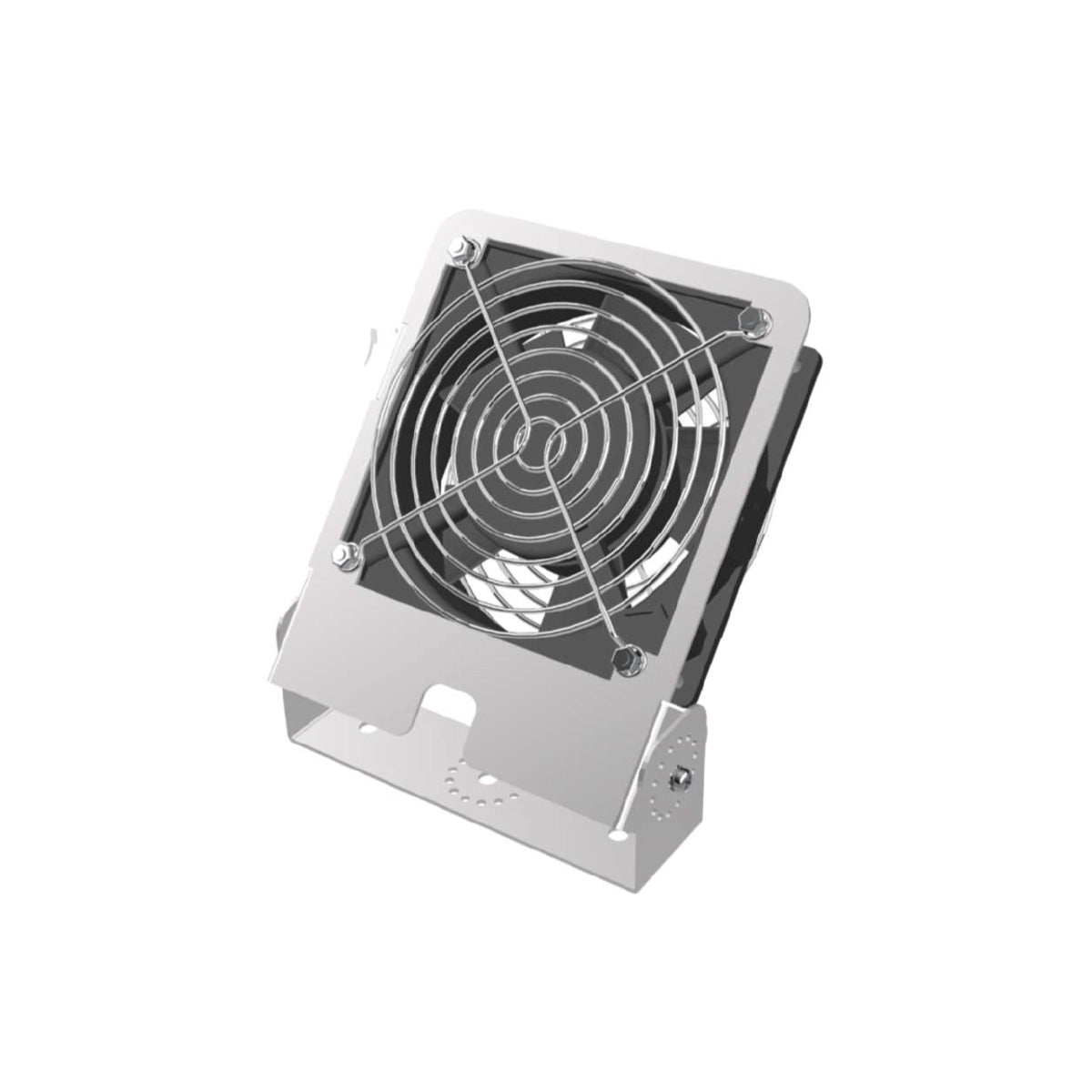

Internal Enclosure Fan 24VDC

SKU
$161.59 ex. GST $177.75 inc. GST
In stock
4 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 180
  • Width (mm) 138
  • Depth (mm) 38
  • Voltage 24V

INTERNAL ENCLOSURE FAN


IP-VA1224 is the best solution to prevent hot spots inside of the electrical enclosure and ensure the right ventilation for components installed inside of the cabinet.



FEATURES UNIT IP-VA1200
Power supply

V

24VDC
Air flow rate

m3/h

180
Power consumption

W

9
Current consumption

A

0.36
Electrical connection

-

Spring terminals
Operating temperature

°C (°F)

-20 / +70 (-4 / 158)
Noise level

dB(A)

45
Weight

kg

0.6
Mounting

-

by screws
Conformity

-

CE

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
