Home » Enclosures» Cooling & Heating» Internal Enclosure Fan 230V
Internal Enclosure Fan 230V — IP Enclosures
Internal Enclosure Fan 230V — IP Enclosures

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

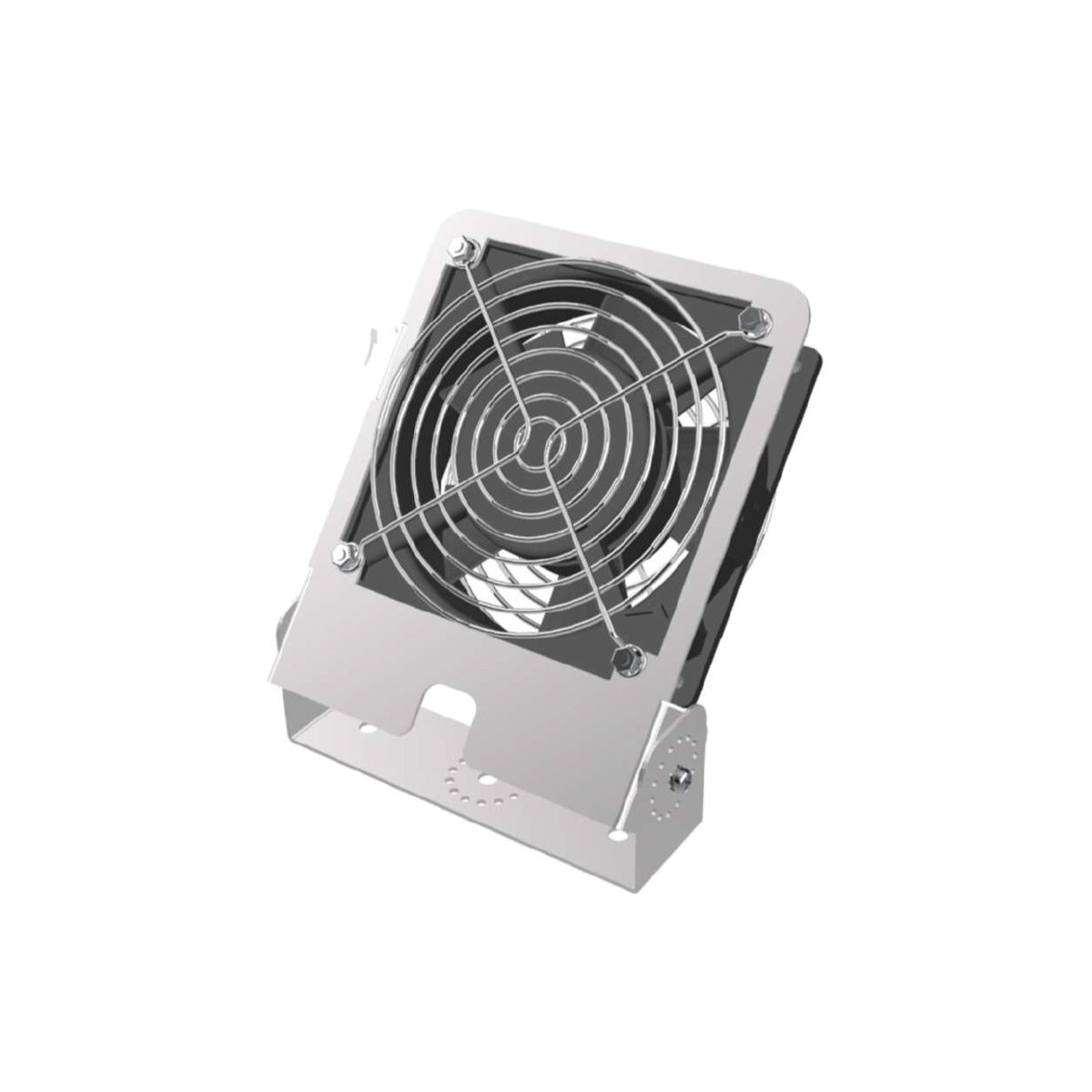

Internal Enclosure Fan 230V

SKU
$161.59 ex. GST $177.75 inc. GST
In stock
26 in stock across 3 warehouses
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Height (mm) 180
  • Width (mm) 138
  • Depth (mm) 38
  • Voltage 230V

INTERNAL ENCLOSURE FAN


IP-VA1200 is the best solution to prevent hot spots inside of the electrical enclosure and ensure the right ventilation for components installed inside of the cabinet.



FEATURES UNIT IP-VA1200
Power supply

V

230V 50/60Hz
Air flow rate

m3/h

160/180
Power consumption

W

18/16
Current consumption

A

0.13/0.11
Electrical connection

-

Spring terminals
Operating temperature

°C (°F)

-20 / +70 (-4 / 158)
Noise level

dB(A)

42/45
Weight

kg

0.92
Mounting

-

by screws
Conformity

-

CE

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
