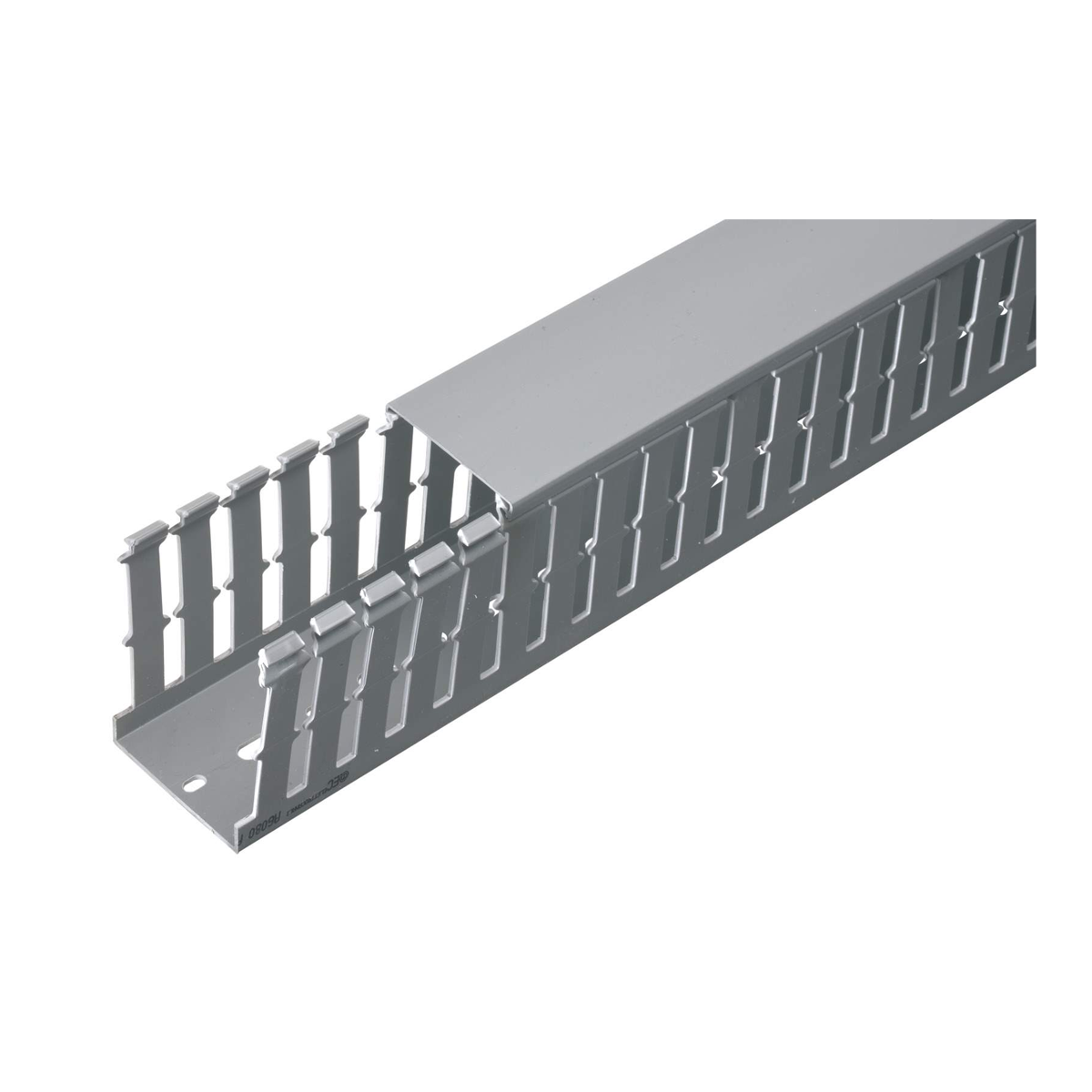

Slotted Duct 40x40mm Grey with Cover | 2M Lengths, Carton of 16

Slotted Duct 40Wx40H mm Grey with Cover | 2M Lengths, Carton of 16

Specifications

• Material: Technopolymer on rigid PVC base, self-extinguishing V0 (UL94) and high resistance to UV rays.

• Colour: Grey RAL7030

• Length: 2 meters

• Resistance to mechanical shocks IK 07 (shocks up to 2 J)

• Resistance to heat in continuous use: up to 70°C

• Resistance to abnormal heat: up to 650°C (Glow Wire Test, Reference Standard IEC60695-2-11)

• Installation temperature range: -5°C + 60°C

• Insulation resistance > 100MΩ

• Dielectric voltage: > 3.0V

• Perforated bottom according to Standard DIN 43659

• Made in Italy

Features

• Double break line to remove only one slot or the whole trunking wall fast and easily

• High resistant to UV rays

• Rounded slot profile increases safety for operator and cables

• Supplied with lids

Standards and Compliance

• Reference Standards: EN 50085-1:2005 + A1:2013, EN 50085-2-3:2010, UL 1565 ED.4.

• Products meeting the safety objectives of Low Voltage Directive 2014/35/EU (Annex I)

• Compliant with RoHS II – 2011/65/EU directive + 2015/863/EU.

Disclaimer:
Elettrocanali Slotted Ducts cannot be transferred between warehouses. Orders ship only from the listed warehouse. For urgent needs or alternatives, contact the TROPAC Sales Team.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
