Air Conditioner Outdoor 230V 1450 Watt, 304 Stainless Steel
Regular price
$5,202.59
ex. GST
$5,722.85
inc. GST
Restocking
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
0 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated
just now
Shipping & pickup →
Free Shipping
Ask an expert!
- Material
- IP Rating
- Voltage
Standards & certifications
IP55Dust-protected · water jets

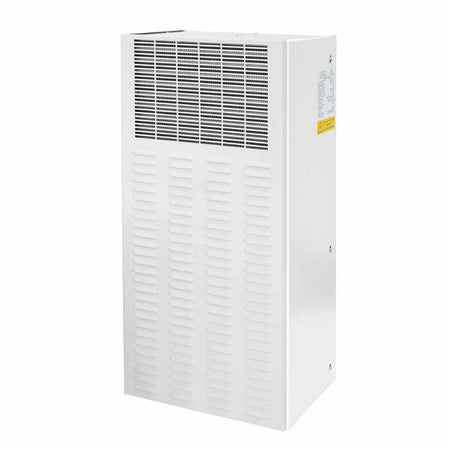

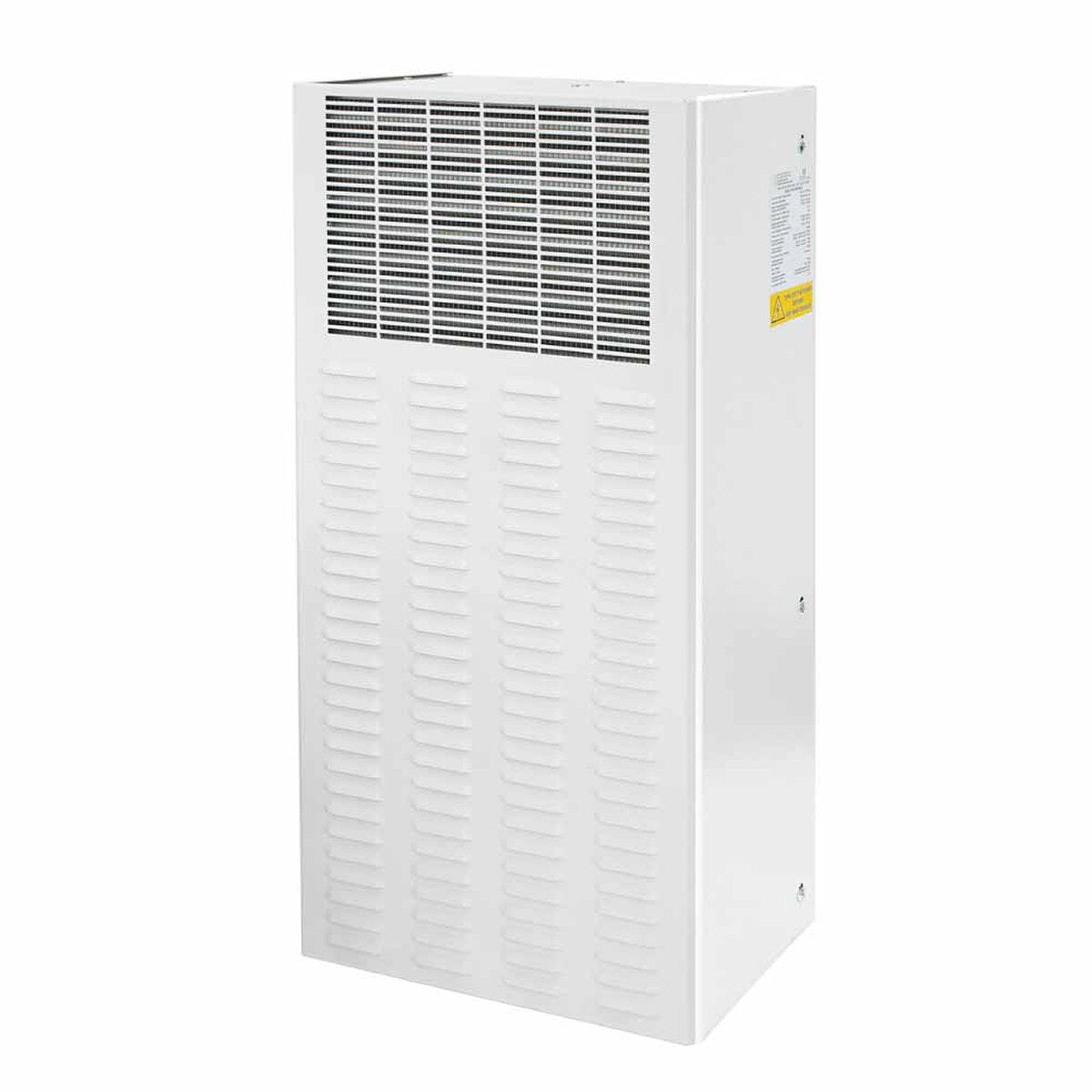

Air Conditioner Outdoor 230V 1450 Watt, 304 Stainless Steel
IP Enclosures Italian vertical-mount compact air conditioners designed for the cooling needs of outdoor electrical cabinets. They are optimised for door or side-panel mounting and have been designed for high efficiency and low maintenance. Outdoor models include a special cover designed to protect internal components, a condenser fan controller and pressure controller for the compressor. The outdoor range has been designed to provide protection in the harshest outdoor conditions.
| Features | Unit | IP-ACOWM145.0X |
|---|---|---|
| Power supply | V/Hz 230V/1ph/50-60 | |
| Dimensions HxWxD | mm | 800x400x240 |
| Cooling capacity EN814 A35A35 | W | 1450/1500 |
| Cooling capacity EN814 A35A50 | W | 1150/1200 |
| Air flow rate (free blow) | ||
| inside | m3/h | 600/625 |
| outside | m3/h | 880/950 |
| Max current | A | 3.7/4.2 |
| Delayed fuse | A | 6 |
| Absorbed electric power EN814 A35A35 | W | 650/700 |
| Absorbed electric power EN814 A35A50 | W | 770/850 |
| Refrigerant (type/charge) | kg | R134a/0.55 |
| Maximum Pressure | bar | 25 |
| Operating temperature (ambient) | °C | +20/+55 |
| Operating temperature (enclosure) | °C | +20/+45 |
| Temperature controller (factory set at 35°C) | – | Integrated mechanical thermostat |
| Compressor type | – | Rotative compressor |
| Noise level | dB(A) | 65 |
| Electrical connection | – | Three-pole connector |
| Protection degree EN60529/1 enclosure inside | – | IP54 |
| Protection degree EN60529/1 ambient inside | – | IP34 |
| Weight (with packaging) | Kg | 37(38) |
| Housing | – | 304 Stainless Steel |
| Conformity/Certifications | – | CE |
TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
