Protected DC Combiner for SolarEdge — TRO Assemblies
Protected DC Combiner for SolarEdge — TRO Assemblies

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

TRO Assemblies

Protected DC Combiner for SolarEdge

SKU
$1,490.47 ex. GST $1,639.52 inc. GST
In stock
1 in stock across 3 warehouses

Protected DC Combiner for SolarEdge

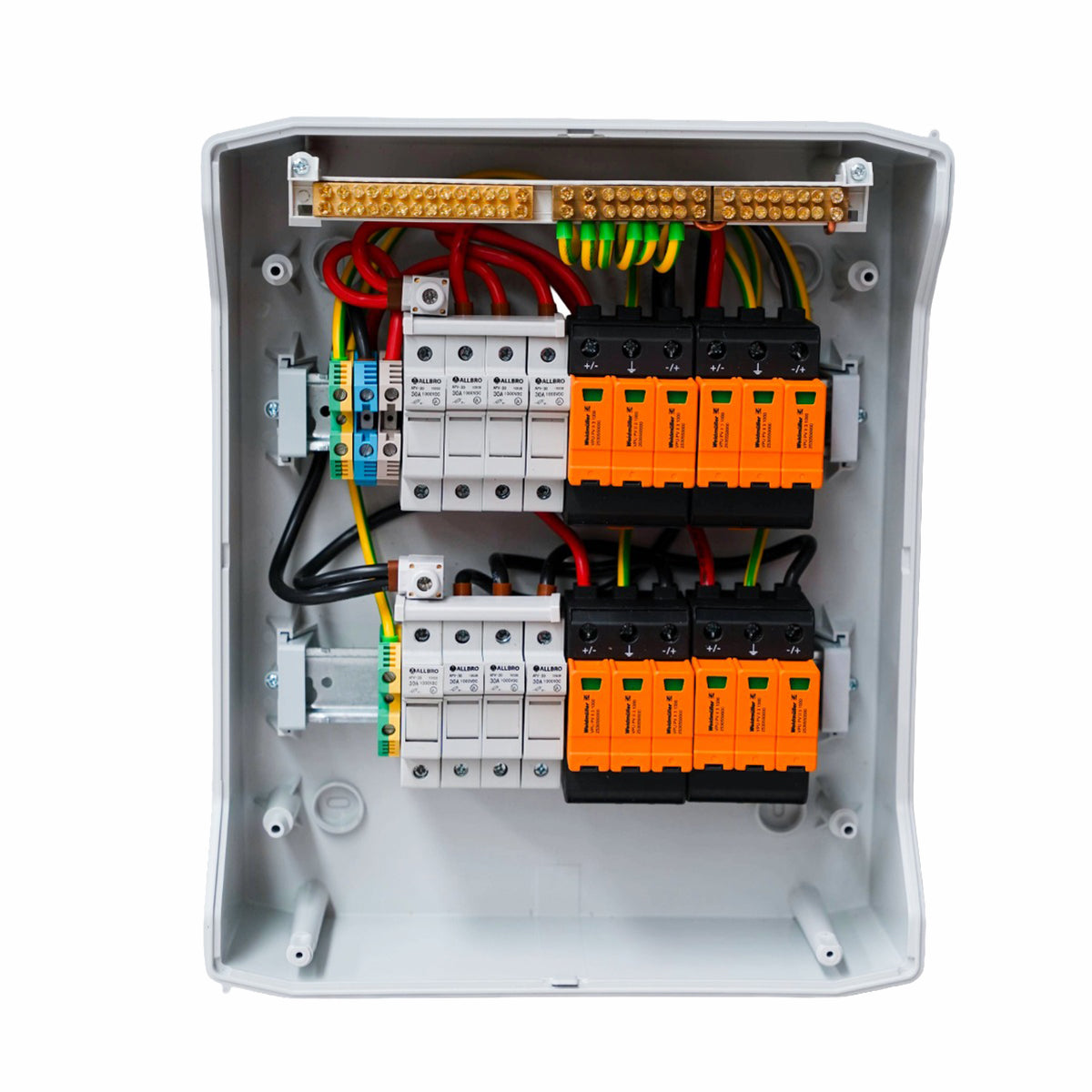

The DC Combiner, built for SolarEdge PV and Battery installations, combines four 30A 1000Vdc fused inputs with Weidmuller VPU PV II 3 1000 Surge Arrestor into a single DC input for inverter connection. Each pole of the DC input has a replaceable fuse, enabling multi-string compliance with AS/NZS 5033. This arrangement is recommended for all SolarEdge systems, but especially those with batteries connected to ensure full system protection from a DC, or rooftop origin surges.

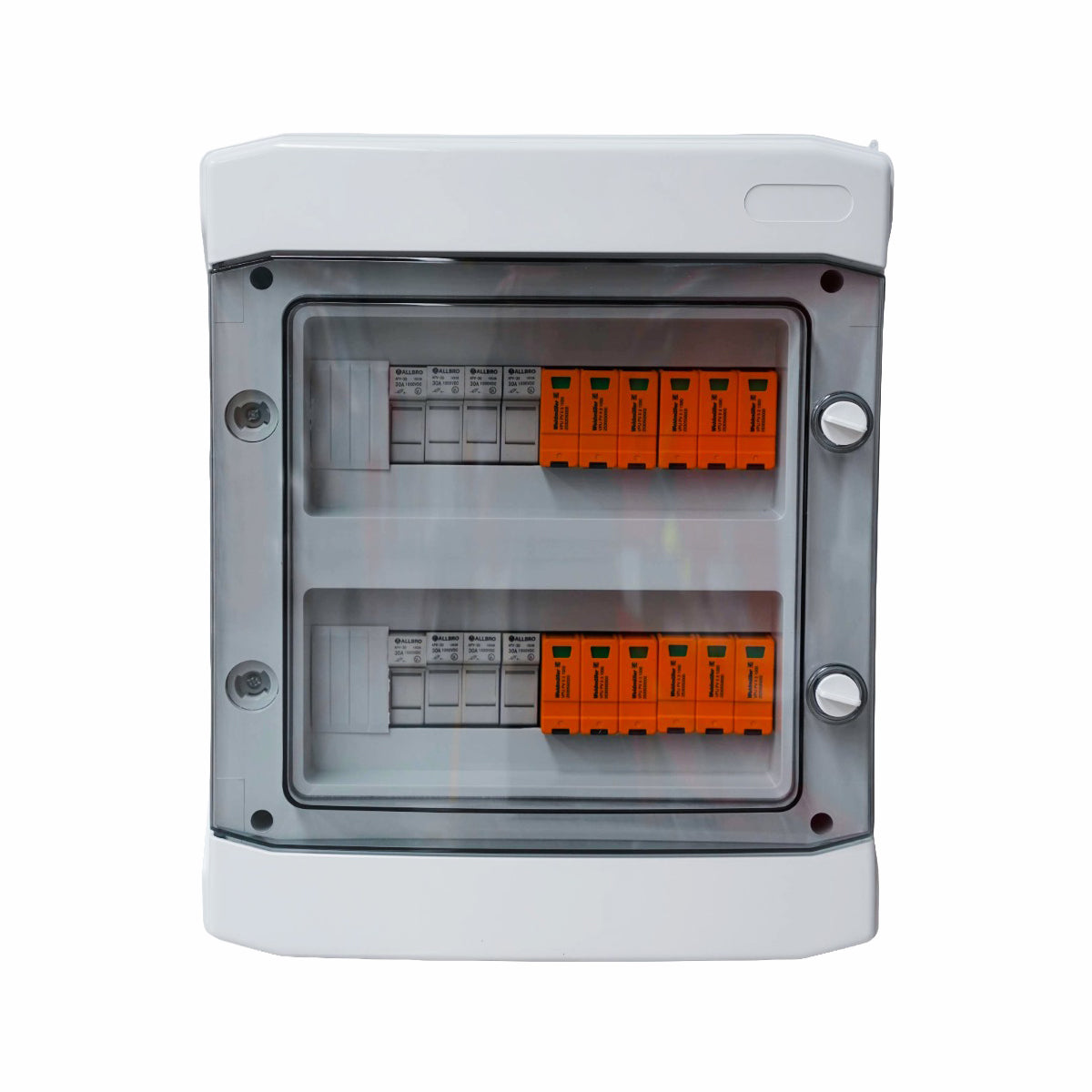

24Way IP65 Enclosure 318x383x142 Transparent Door with:
* 4x VPU PV II 3 1000 Surge Arrestor
* 1x Power Distribution Block 175A CU / 135A AL


TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
