Home » Enclosures» Field Cabinets» Air-Conditioned Field Cabinets» 84U/RU (2 x 42U/RU) Aluminium Field Cabinet 2275H x 1650W x 800D White with 2.0kW Air Conditioner and Padlockable Handle

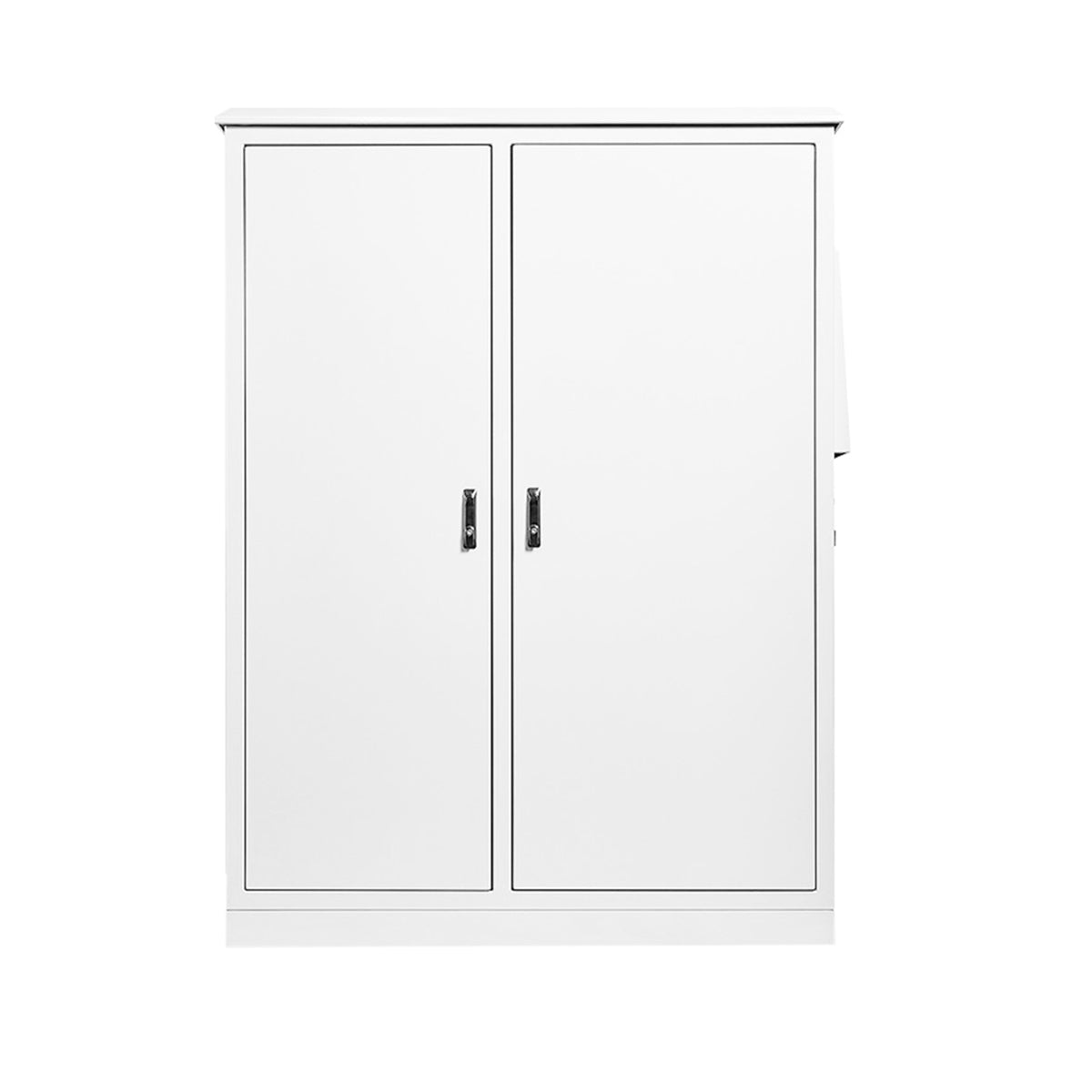

84U/RU (2 x 42U/RU) Aluminium Field Cabinet 2275H x 1650W x 800D White with 2.0kW Air Conditioner and Padlockable Handle —
84U/RU (2 x 42U/RU) Aluminium Field Cabinet 2275H x 1650W x 800D White with 2.0kW Air Conditioner and Padlockable Handle —

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

TRO Assemblies

84U/RU (2 x 42U/RU) Aluminium Field Cabinet 2275H x 1650W x 800D White with 2.0kW Air Conditioner and Padlockable Handle

SKU
$20,650.04 ex. GST $22,715.04 inc. GST
Out of stock Contact us for lead time
0 in stockContact us for lead time →
  • Height (mm) 2,275
  • Width (mm) 1,650
  • Depth (mm) 800
  • Material Aluminium
  • Colour White
  • IP Rating IP55
  • Lock Type 3-Point Key-Lock Swing Handle
  • Door Type Single Door
  • Size 84RU

Standards & certifications

IP55Dust-protected · water jets IK10Impact rated IEC/EN/AS60529Ingress protection EIA- EIA-310-D AS/N AS/NZS 60335.1 AS/N AS/NZS 60335.2.40 CEEU conformity UKCAUK conformity RoHSHazard-free IEC/EN 62208 Tested standards

84U/RU (2 x 42U/RU) Aluminium Field Cabinet 2275H x 1650W x 800D White with 2.0kW Air Conditioner and Padlockable Handle

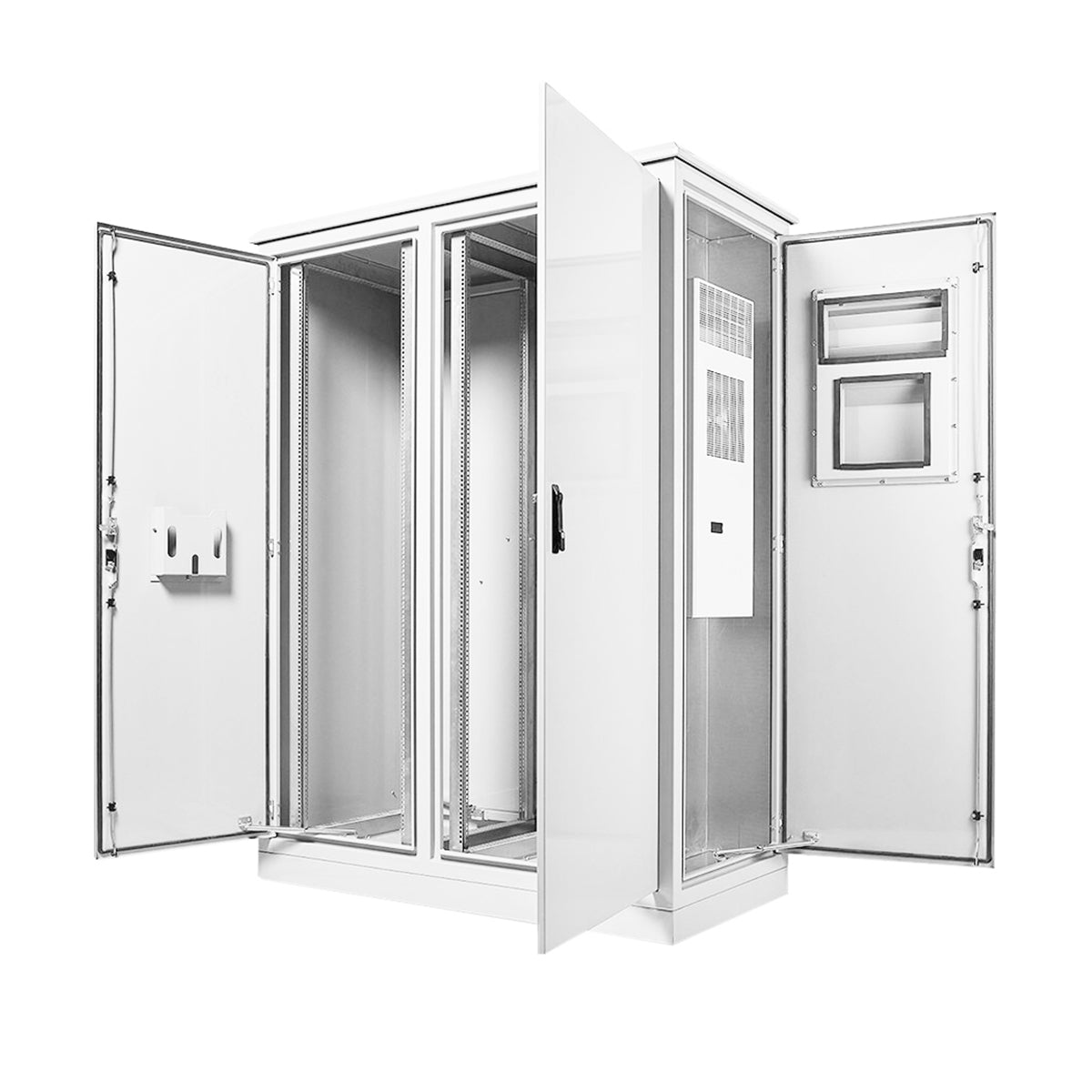

Air-Conditioned Field Cabinets are designed to house and cool sensitive data network and electrical equipment in harsh outdoor environments. They are rated to IP55 and designed to prevent unauthorised access and vandalism while keeping contents cool to ensure protection in the toughest conditions. Our Air-Conditioned Field Cabinets are based on our standard Field Cabinets and incorporate an internally-mounted air-conditioner that is designed for the cooling needs of outdoor electrical cabinets. The air conditioner is housed in a separate compartment from the 19” rack compartment and is accessible via a recessed side door with special louvred vent hood to enhance air flow. The cooled 19” rack compartment is rated to IP55 and is accessible via front and rear doors. The Air-Conditioned Field Cabinet is ideal for a wide variety of applications.

Protection: IP55 IK10

Standards (& Conformities): IEC/EN 60529, IEC/EN 62208, EIA-310-D, RoHS, AS/NZS 60335.2.40:2019, AS/NZS 60335.1:2020, CE, UKCA, SAA203165

Air Conditioner:

IP Enclosures SAA approved compact air conditioners are designed for the cooling needs of outdoor electrical cabinets. They have been designed for high efficiency and low maintenance and include a condenser fan controller and pressure controller for the compressor.

TROPAC's standard warranty covers all products. A 5-year warranty applies to eligible IP Enclosures products. Refer to Refunds & Returns for more information.
