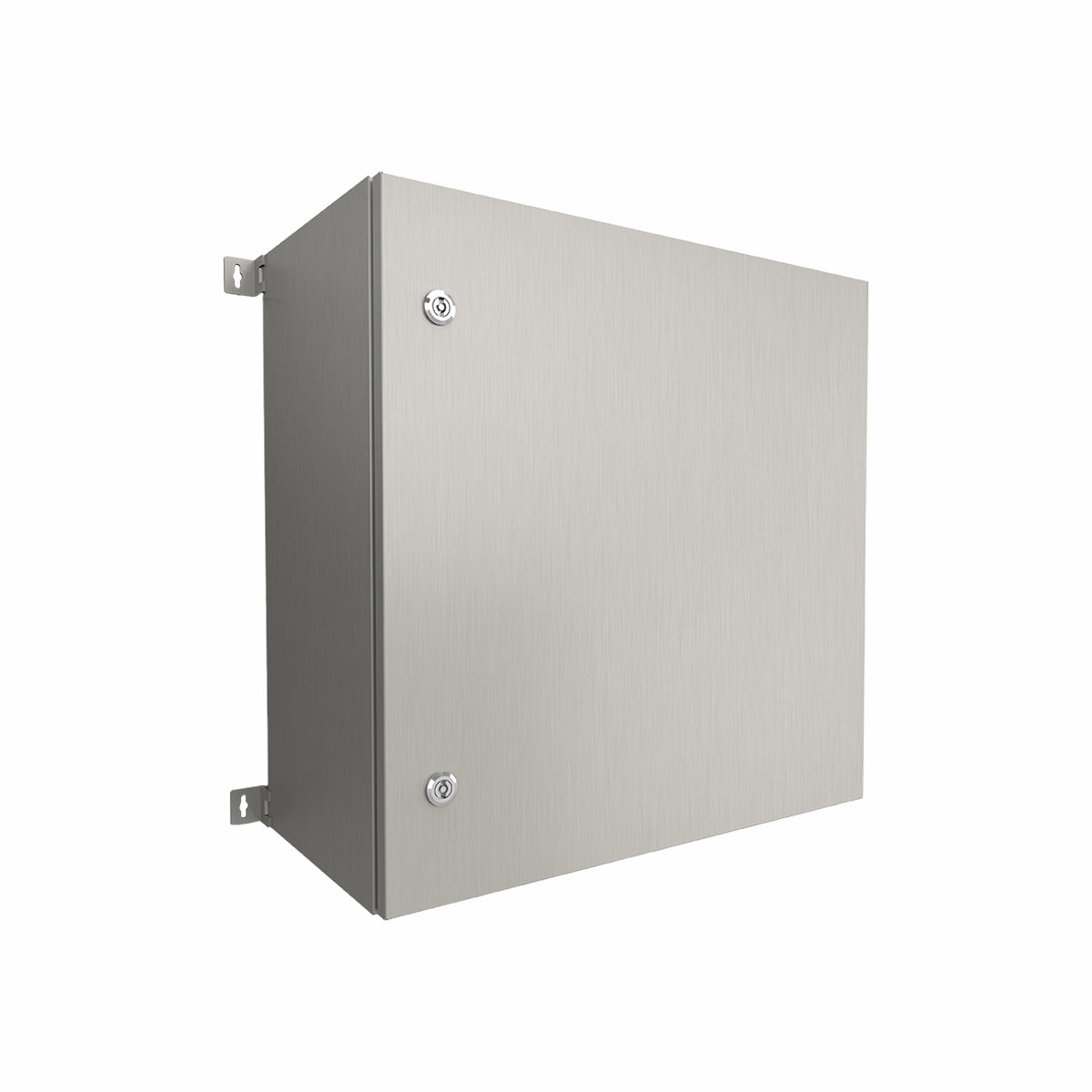

600H x 600W x 300D IP66 316 Stainless Steel Electrical Enclosure

600H x 600W x 300D IP66 316 Stainless Steel Electrical Enclosure

Versch 316 Stainless Steel Wall-Mounted Electrical Enclosures deliver dependable protection for everyday electrical and control applications. Manufactured in 316L stainless steel with a continuous formed polyurethane seal and secure locking, rated IP66, suitable for general industrial control, HVAC, pumps, lighting, and small PLC/IO applications.

Key Benefits

• IP66 protection for dust-tight and powerful water-jet environments
• Value-engineered construction
• 1.5mm grade 316L stainless steel
• Continuous PU gasket for reliable sealing
• Universal wall mounting brackets and gland plates

Typical Applications

• Switching and protection
• Small PLC/IO
• Power supplies
• Drives
• HVAC interfaces
• Pump and irrigation controls
• Lighting and signage
• General industrial control

Construction & Materials

• Body & door: Folded zinc-coated steel, fully welded body, removable door
• Finish: 4B finishing (0.4 to 0.8 ?m)
• Gasket: Polyurethane (continuous)
• Locks & hardware: Quarter-turn latches (key insert), concealed hinges, earth studs
• Mounting plate: Galvanised steel device plate
• Gland plate: Removable gland plate
• Fixing: External wall-mount brackets

Ratings & Compliance

• Ingress protection: IP66 to IEC/EN 60529
• Impact resistance: IK10 suitable for general industrial use
• Empty enclosure standard: IEC/EN 62208

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
