24V 1.2Ah Battery 149.5H x 52W x 124D - DURA ECO LA-BAT 24V 1.2AH *Indent Item - Non-Cancellable & Non-Returnable*

The Weidmüller DURA ECO LA-BAT 24V 1.2AH is a battery module that stores the energy a Weidmüller CP DC UPS controller draws on to carry a 24 V DC system through a mains dropout. It is the smallest module in the DURA ECO range, suited to short ride-through such as holding a PLC, HMI or router alive long enough for a controlled shutdown rather than running panel loads.

• Nominal voltage: 24 V DC
• Nominal capacity: 1.3 Ah
• Compatibility: CP DC UPS 24V 10A/20A and CP DC UPS 24V 40A control units

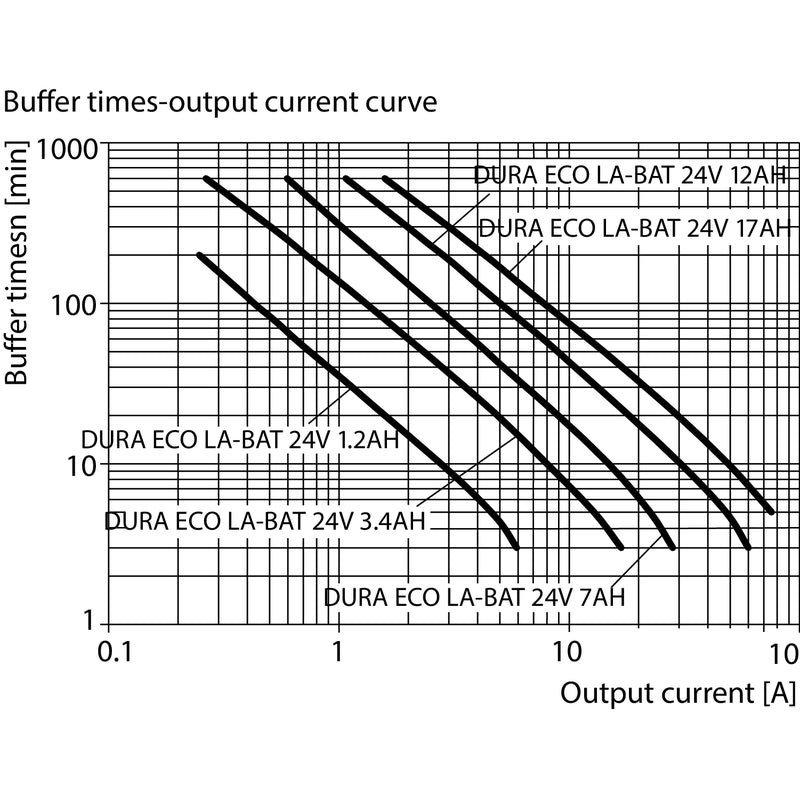

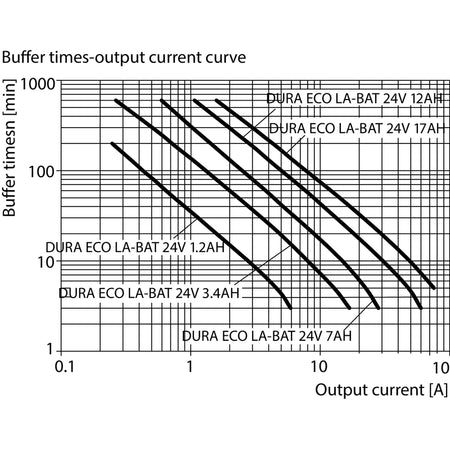

• Buffer time: 30 min at 1.4 A, 5 min at 4.5 A, 3 min at 6 A
• Maximum output current: 15 A, protected by a 10 A fuse
• Maximum charging current: 0.2 A
• Connection: Pluggable screw terminals, 0.2-4 mm²
• Operating temperature: -15 °C to +50 °C
• Dimensions: 52 x 149.5 x 124 mm (W x H x D), 1750 g
