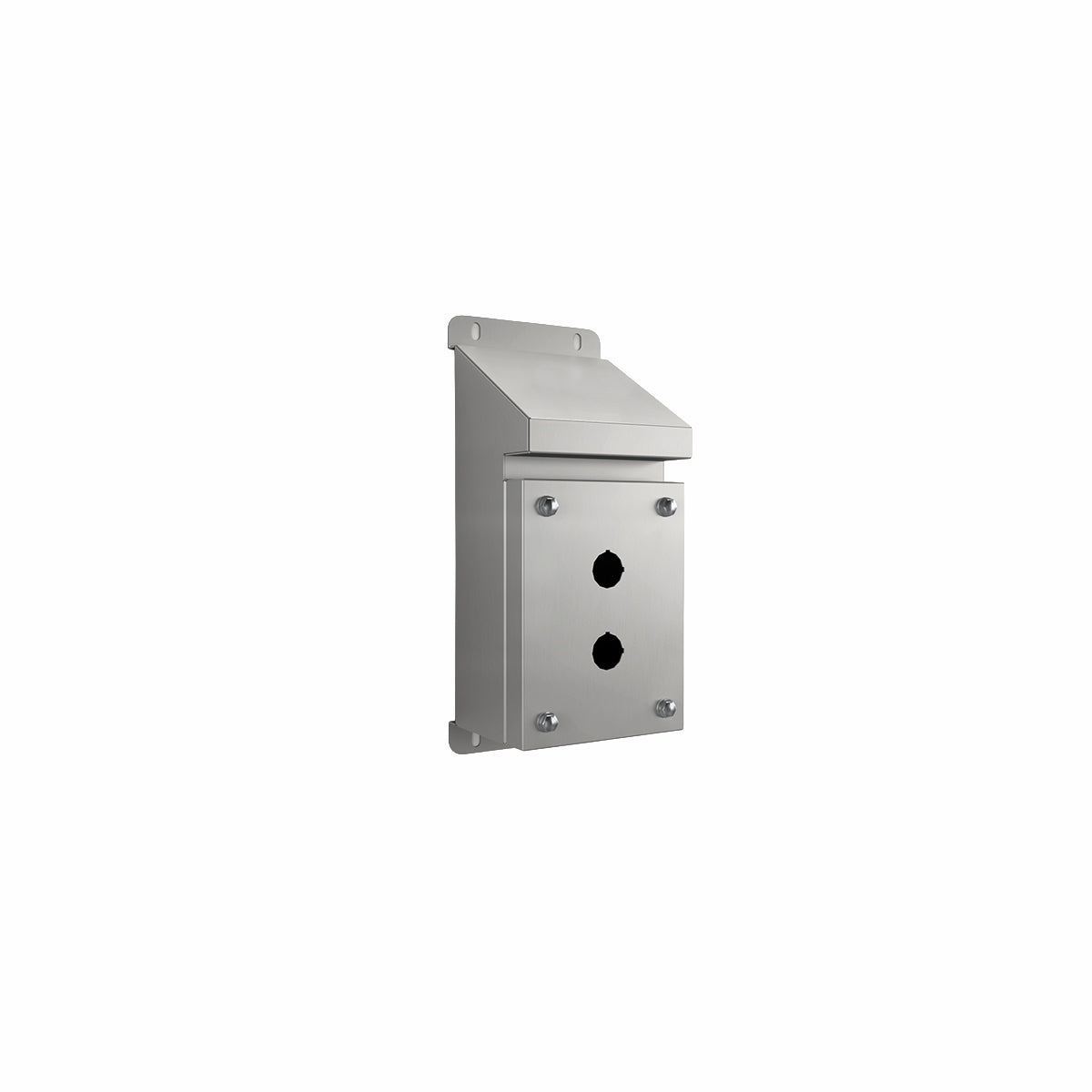

IP Enclosures SSP Sloped Roof Stainless Steel Pushbutton Enclosure – 2 x Ø22.5mm

The SSP Sloped Roof Stainless Steel Pushbutton Enclosure is built for harsh industrial environments. The sloped roof design improves water runoff and protects pushbuttons from dust, debris, and chemical exposure. It performs reliably in mining, marine, food processing, and heavy industry.

This model features 2 x Ø22.5mm pre drilled holes. The SSP range is also available with Ø30.5mm holes and in 1 hole, 2 hole, 3 hole, 4 hole, and 6 hole configurations to suit your application.

Key Features

• Sloped roof design for improved water and debris runoff
• External mounting flanges for secure installation
• High resistance to corrosion and harsh chemicals
• Manufactured in Italy using premium materials
• 5 year manufacturer warranty

Protection Ratings

• IP66
• IP67
• IP69K
• NEMA 4X

Standards and Compliance

• IEC / EN / AS 60529
• UL 508A
• RoHS Compliant

Materials

• Body: 1.0mm Grade 316 Stainless Steel
• Lid / Door: 1.0mm Grade 316 Stainless Steel
• Seal: Silicone
• Washers: NBR 70 (Nitrile Butadiene Rubber)

Construction

Body: Fabricated from 1.0mm Grade 316 stainless steel in a robust monoblock design. The sloped roof extends past the pushbuttons for added environmental protection. Top and bottom external mounting flanges support secure installation in demanding mining and industrial environments.

Lid / Door: Pre drilled and secured with screws fitted with NBR 70 washers. Designed for use in environments where hydrocarbons and aggressive substances are present.

Seal: High quality silicone seal provides long term protection against moisture and contaminants.

Technical Specifications

• Surface Finish: 0.4 micron Ra brushed finish
• Hole Configuration: 2 x Ø22.5mm
• Mass: 1.28 kg

Manufactured to strict quality, safety, and environmental standards.

Warranty: 5 Years
