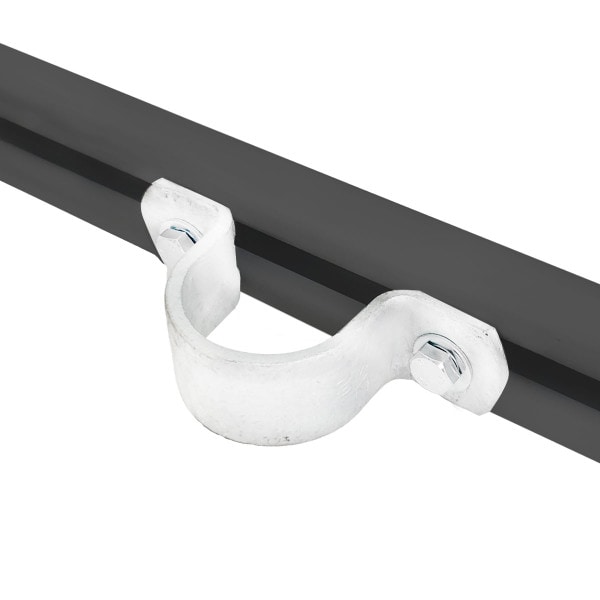

Pole Mount Saddle Kit to suit 150NB Pipe/168mm OD Poles HDG
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details
IP-PMSC168 | Pole Mount Saddle Kit to suit 150NB Pipe/168mm OD Poles HDG
IP Enclosures provide Mounting Clamps in steel and stainless steel to suit all sizes of electrical enclosures.
Each kit includes 1 x Medium Duty Saddle, 2 x Spring Channel Nuts to suit U-Channel and 2 x Set Screws. Mounting Clamps are available in a wide range of sizes to suit most standard pipe sizes.

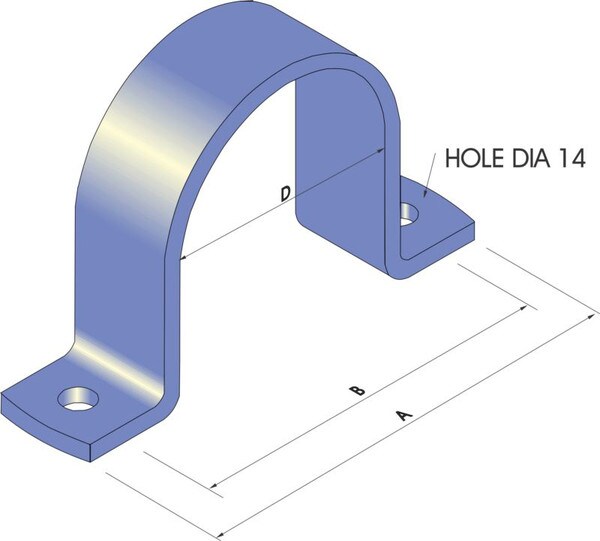

| Pipe Dia. | D | A | B | Material | Finish |
| 150NB | 168mm | 261mm | 224mm | 40 x 6mm | HDG |
U-Channel / Profile to Suit
