Thermostat for Fan NO -10/+50°C
Images are for reference only. Refer to datasheets and drawings for accurate specifications.
Details

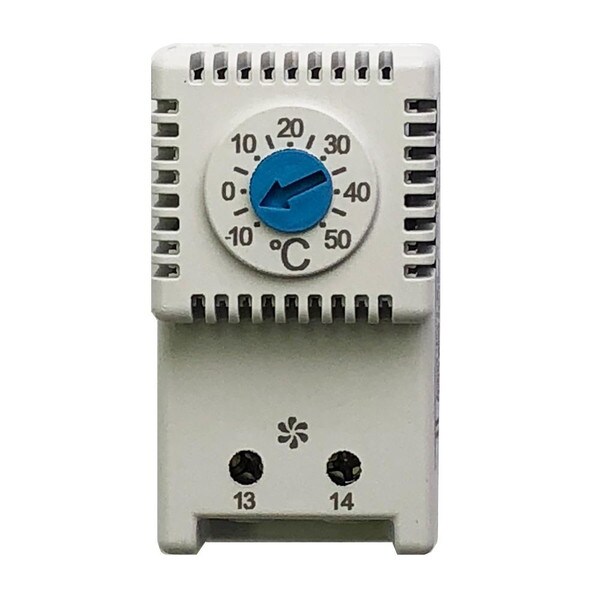

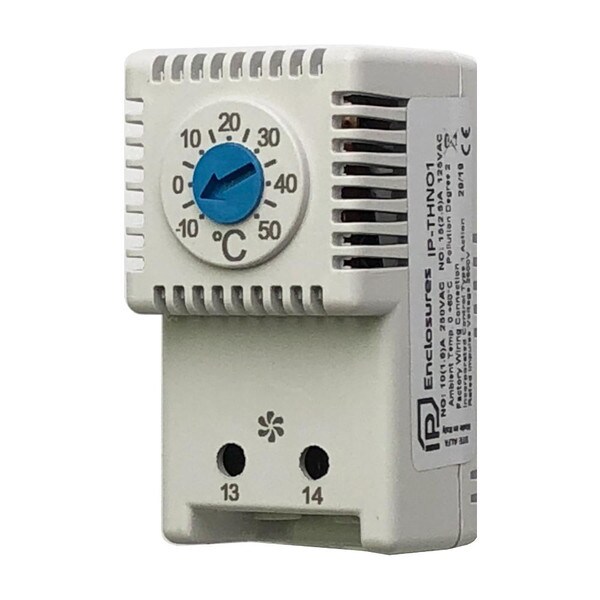

Thermostat for Fan NO -10/+50°C
High quality Italian compact thermostat for 35mm DIN rail mounting. Based on bimetallic junction, provides high capacity normally open contact. Suitable for controlling ventilation filter fan units.
| Features | Unit | IP-THNO1 |
|---|---|---|
| Contact function | – | NO |
| Temperature setting range | °C | -10/+50 |
| Precision | °C | ±4 |
| Hysteresis | °C | 7 |
| Max. switching current | – | |
| 250Vac resistive load (inductive load) | A | 10 (1.6) |
| 125Vac resistive load (inductive load) | A | 15 (2.5) |
| Max. switching power in Vdc | W | 30 |
| Temperature Sensor type | – | Thermostatic bimetal |
| Contact type | – | Snap action |
| Contact resistance | mOhm | < 10 |
| Service life | cycles | > 100.000 |
| Electrical connections | – | 2-pole terminal for 2.5 mm² wire |
| Casing | – | PA6 ; UL94 self-estinguishing ; light grey RAL 7035 |
| Protection degree EN60529 | – | IP20 |
| Operating Temperature | °C (°F) | -25/+80 (-13/+176) |
| Storage Temperature | °C (°F) | -45/+80 (-49/+176) |
| Mounting | – | Clip for mounting on DIN rail 35 mm EN50022 |
| Installation position | – | variable |
| Conformity | – | CE – UL  File n.E348803 |
| Dimensions HxWxD | mm | 61x34x35 |
| Weight | g | 48 |
