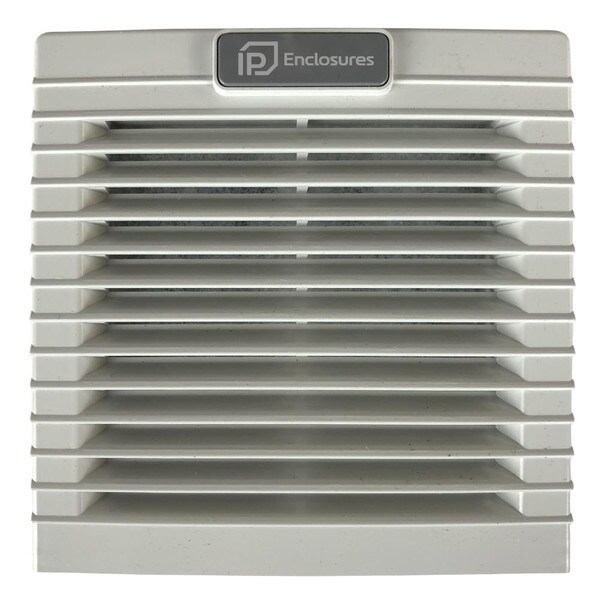

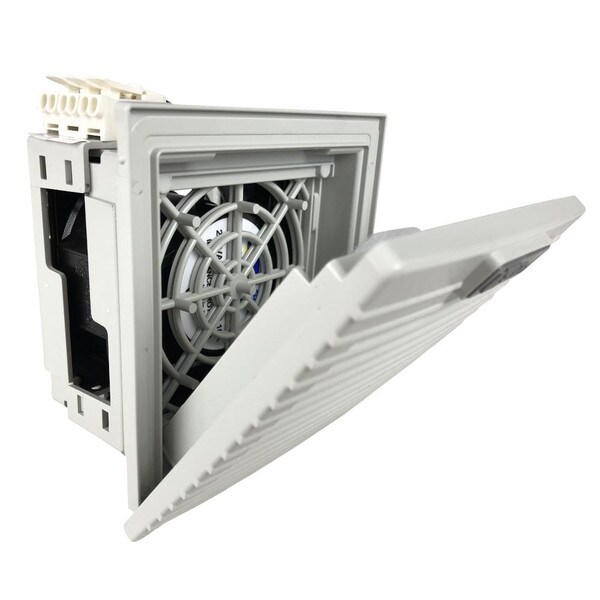

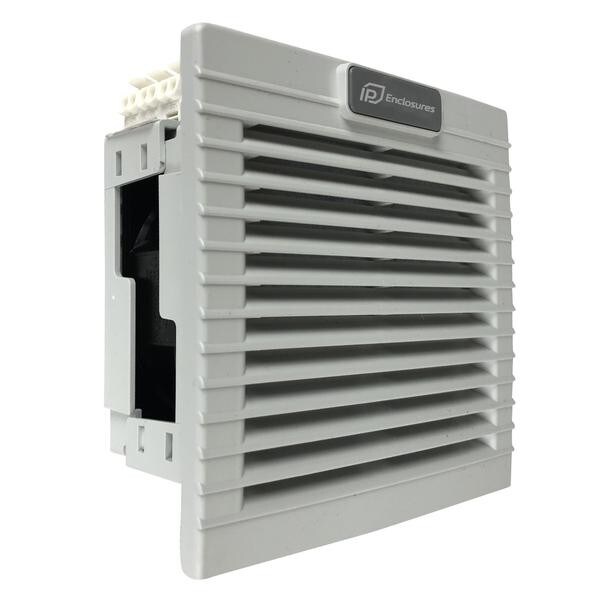

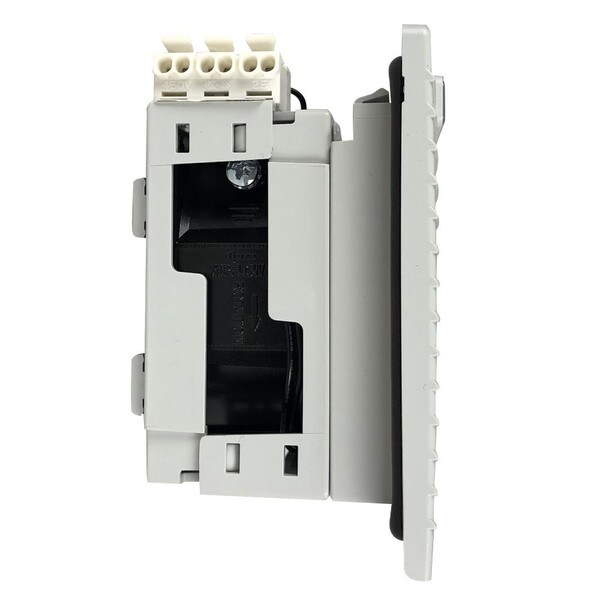

Filter Fan 114 x 114 25m3/hr 230V

$78.27

inc. GST

Quantity	Price

SKU: IP-V1100

BRAND: IP Enclosures

This item is IN STOCK

Current Stock: 840

QLD: 774 in stock

NSW: 30 in stock

VIC: 36 in stock

Quantity

Details

High quality Italian filter fan unit for electrical enclosures.

G3 Filter Mat Included.

Features	Unit	IP-V1100
Air flow rate (free blow)	m³/h	26 (30)
Flow rate with exit filter	m³/h	15 (18)
Power supply	V/Hz	230 / 50-60
Dimensions HxLxP	mm	114x114x73
Power consumption	W	13 (12)
Current consumption	A	0.10 (0.08)
Overcurrent consumption	–	impedance
Electric connection	–	3-poles spring terminals
Duty cycle	–	100%
Operating temperature	°C	– 10 / +70 (+14 / +158)
Protection degree/class	–	IP54/Class I
Noise level	dB(A)	30 (35)
Flow direction	–	reversible: default factory setting outside-in
Bearing	–	ball
Filter mat (Eurovent)	–	G2
Service life (at 40°C)	hr	50 000
Material	–	ABS UL94V-0 Color RAL7035
Wall thickness	mm	1.2-2.4
Gasket	–	foam seal gasket
Weight (with packaging)	kg	0.41 (0.46)
Package dimensions	mm	125x125x80
Montaggio	–	fast clip-on
Cut-out dimensions	mm	92×92
Conformity/Approvals	–	CE
