Inner Door 400H x 600W Grey
Details
Inner Door 400H x 600W Grey

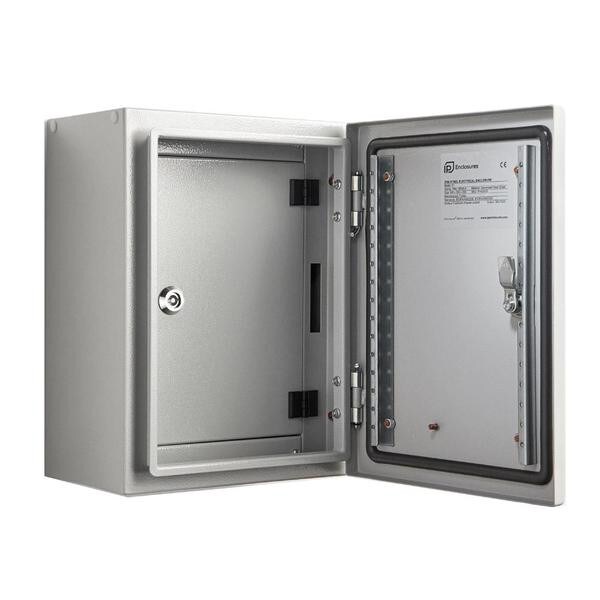

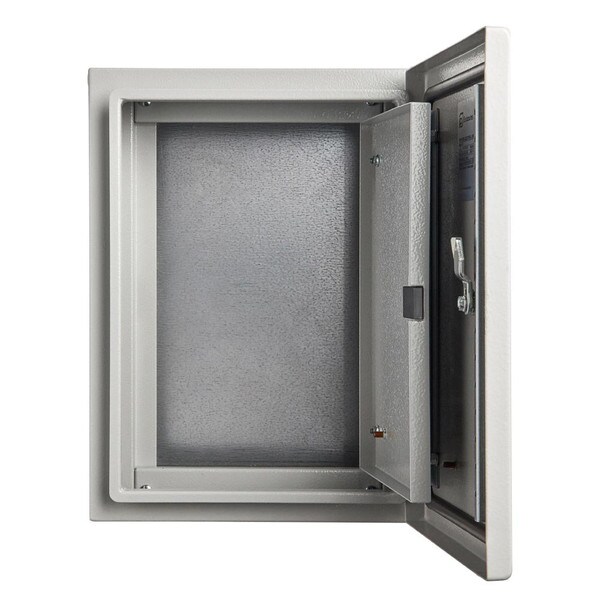

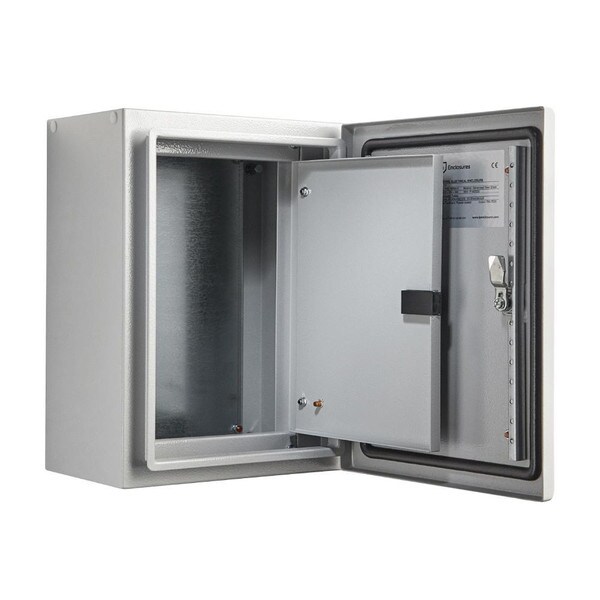

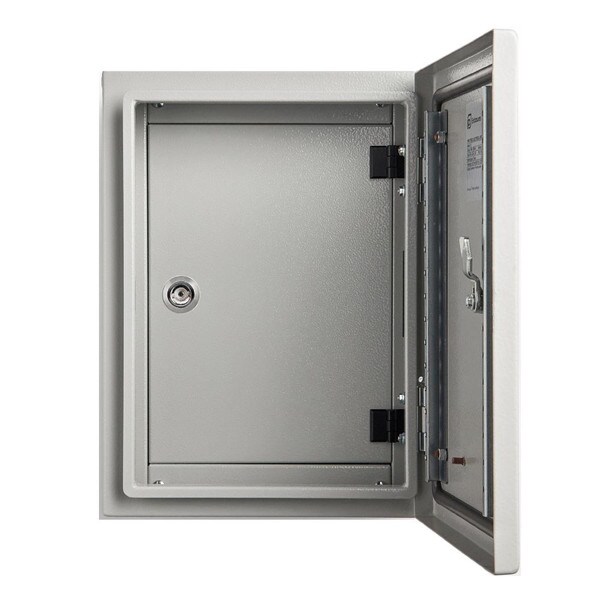

IP Enclosures provide a range of inner doors for steel and stainless steel electrical enclosures. Inner doors enable operators to access control equipment inside an enclosure while maintaining separation of hazardous voltage equipment within the hazardous voltage area behind the inner door. Removable, hinged escutcheon plates accommodate control components such as circuit breaker handles, pushbuttons, indicator lights and HMI’s. Inner door escutcheons are an optional feature that can be easily fitted into new or existing IP Enclosures electrical enclosures. The inner door escutcheon plates are provided with handles and fixings that can be operated without the use of tools. The design allows for easy removal of escutcheon plates. Each inner door kit is provided with a support frame to mount inside the electrical enclosure to prevent panel distortion.
Material:
1.2mm galvanised steel sheet
Surface Treatment:
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL7035.
Clearance Dimensions
Clearance between inner door and outer door (in front of inner door): 68mm
Clearance between inner door and device mounting plate (behind inner door):
150D Enclosure: 67mm
200D Enclosure: 117mm
250D Enclosure: 167mm
300D Enclosure: 217mm
400D Enclosure: 317mm
