Electrical Enclosure 600H x 400W x 400D IP66 Grey

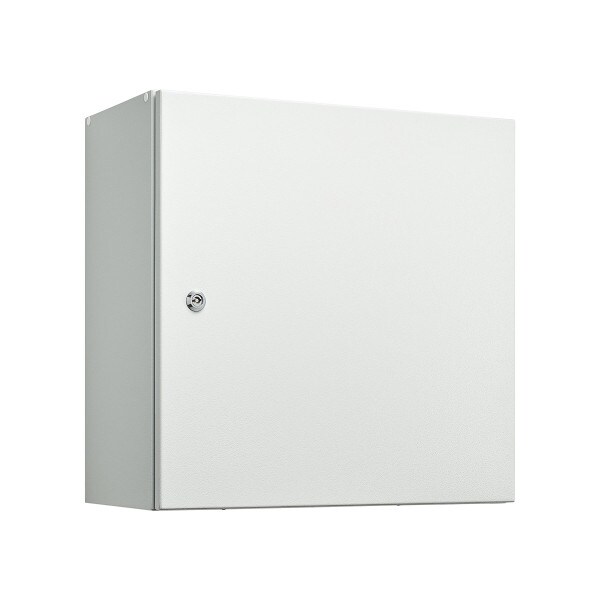

At 600 × 400 × 400mm in grey, this S1 wall-mount enclosure suits switchboards, motor-control and power-distribution assemblies in industrial, commercial and outdoor environments where dust, water ingress or impact would otherwise compromise the equipment inside. Powder-coated galvanised steel construction rated to IP66 IK10.

Features and Specifications

Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Standards (& Conformities): IEC 62208, IEC/EN/AS60529, IEC/EN 61439, UL, RoHS, CE, UKCA.

Construction

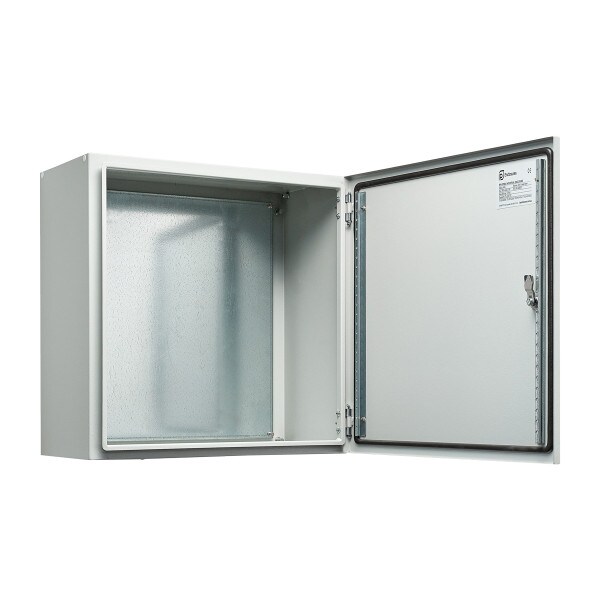

A robust monoblock galvanised steel body with flat-face sealing surfaces and pre-fitted blind nutserts eliminates field drilling and retains IP integrity. Concealed removable hinges with captive pins allow a 110° door opening. A machine-applied full-perimeter UL listed polyurethane seal foamed in place (FIP) provides continuous sealing rated to −40°C to +80°C (160°C short-term).

Surface Treatment

UL approved AkzoNobel epoxy polyester powder coat, textured, 80–120 microns. Standard RAL colours available.

What's Included: Enclosure body, door with FIP polyurethane seal, 1× device mounting plate (pre-fitted), gland plate with gasket and fasteners, M6 earth studs.

Note: Please choose product carefully. Product selection is the responsibility of the Purchaser. Refer to relevant Standards, project requirements and technical specifications to ensure that the product meets requirements. For more information on product selection, refer to this link.

TROAPC's standard warranty covers all products. The standard 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
