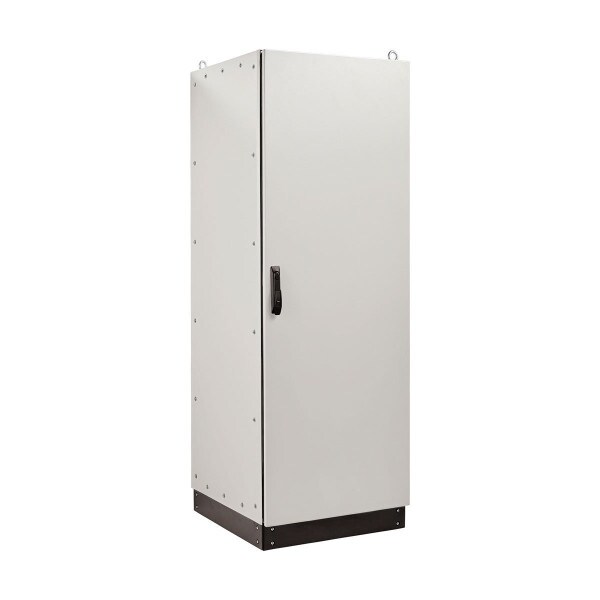

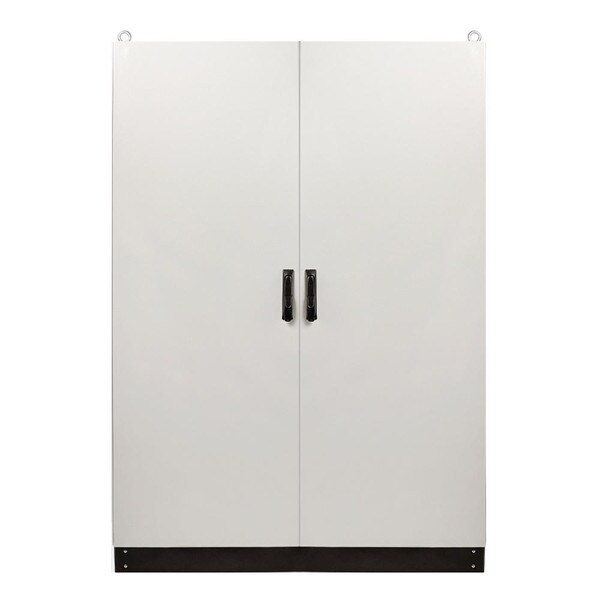

Electrical Cabinet 2020H x 1200W x 600D IP55 Grey
Measuring 2020H × 1200W × 600D mm with IP55 protection, this enclosure suits industrial power and control panel assemblies for heavy manufacturing.
Features and Specifications
Protection: IP55 (Independent accredited test laboratory).
Standards (& Conformities): IEC 62208, IEC/EN/AS60529, RoHS
Material:
Main Frame: 2.0mm Galvanised Steel W Profile System
Side, Rear & Roof Panels: 1.2mm Powder-Coated Galvanised Steel Sheet
Front Door: 2.0mm Powder-Coated Galvanised Steel Sheet
Mounting Plates: 2.0mm Galvanised Steel Sheet
Seal: EPDM

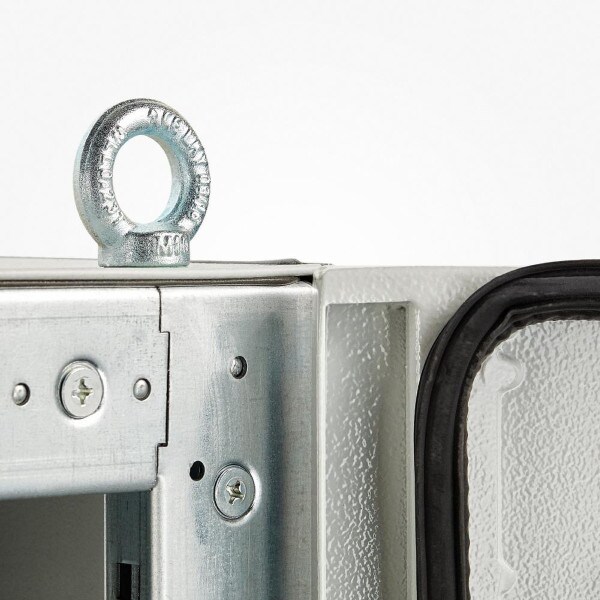

Frame:
The robust modular main structure is fabricated using 2.0mm galvanised steel sheet W Profile system with 20mm hole pattern.

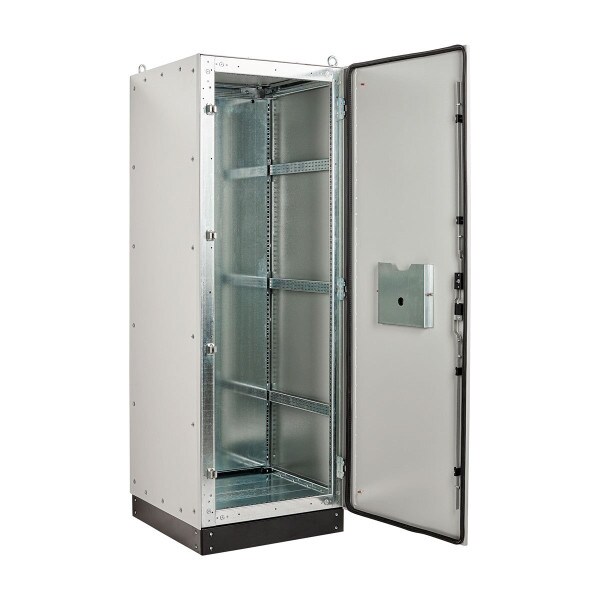

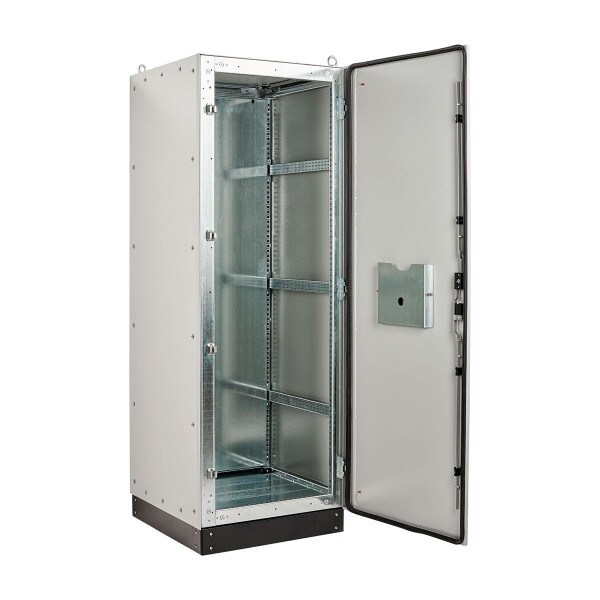

Door:
The robust door is fabricated using 2.0mm powder coated galvanised steel sheet and incorporates four concealed hinges. The door is designed for a 135° opening. Each door contains integral cable management rails with 20mm hole pattern, M6 earth stud and document pocket.
Side, Rear and Roof Panels:
Removable panels are fabricated using 1.2mm powder coated galvanised steel sheet.
Base:
Base is 100mm high.
Enclosure Seal:
High quality EPDM replaceable door seal
Enclosure Lock:
4 point locking system with key-lock swing handle.
Device Mounting Plate:
The device mounting plate is fabricated using 2.0mm mm galvanised steel sheet, pressed to provide additional strength.
Earthing:
All panels are earthed to provide earthing continuity.
Surface Treatment:
UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL7035.
