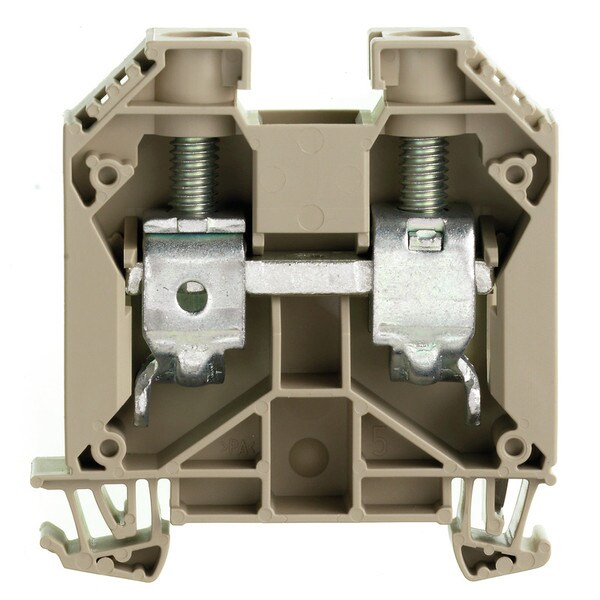

DIN Terminal W-Series Screw Connection 35mm Beige - WDU 35 — Weidmuller

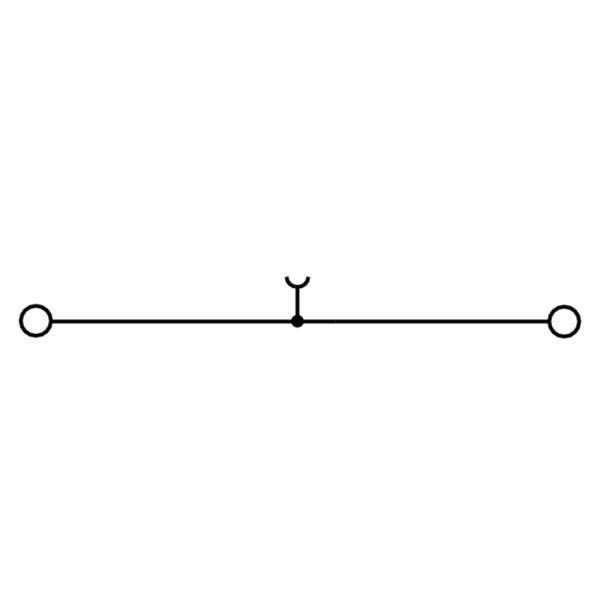

1020500000 - image 2
DIN Terminal W-Series Screw Connection 35mm Beige - WDU 35 — Weidmuller
1020500000 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

Weidmuller

DIN Terminal W-Series Screw Connection 35mm Beige - WDU 35

SKU
$9.30 ex. GST $10.23 inc. GST
In stock
380 in stock across 3 warehouses
  • Colour Beige
  • IP Rating IP20
  • Voltage 1000 V
  • Current 125 A
  • Contacts 2 Contact
  • Conductor Size 35 mm²
  • Conductor Count 2
  • Size 35mm

Standards & certifications

IP20Ingress protection CE, UL (E60693), CSA, RoHSHazard-free IEC/EN 6094771 Tested standards
Product Datasheet PDF
DIN Terminal W-Series Screw Connection 35mm Beige - WDU 35

TROAPC's standard warranty covers all products. A 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
