Home » IP Enclosures » Chrome Secure Quarter Turn 5mm Double Bit Lock for Electrical Enclosures, to Suit RH Hinged Door
Chrome Secure Quarter Turn 5mm Double Bit Lock for Electrical Enclosures, to Suit RH Hinged Door — IP Enclosures
IP-L077 - image 2
Chrome Secure Quarter Turn 5mm Double Bit Lock for Electrical Enclosures, to Suit RH Hinged Door — IP Enclosures
IP-L077 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

Chrome Secure Quarter Turn 5mm Double Bit Lock for Electrical Enclosures, to Suit RH Hinged Door

SKU
In stock
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
6 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated 3 minutes ago
Shipping & pickup →
$13.28 ex. GST $14.61 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Material Chrome
  • Colour Chrome

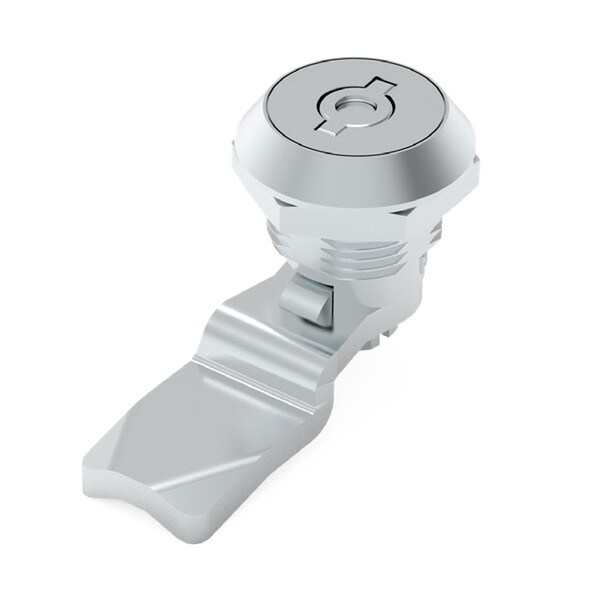

Chrome Secure Quarter Turn 5mm Double Bit Lock for Electrical Enclosures, to Suit RH Hinged Door

FEATURES

– When lock is open, key functions as a knob.

MATERIAL

HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1
DRIVER: Zamak DIN-EN
CAM: Steel
GASKET: Rubber
FINISH: Chrome
IP RATING: IP65

DRIVERS

IP-L077: 5mm Double Bit

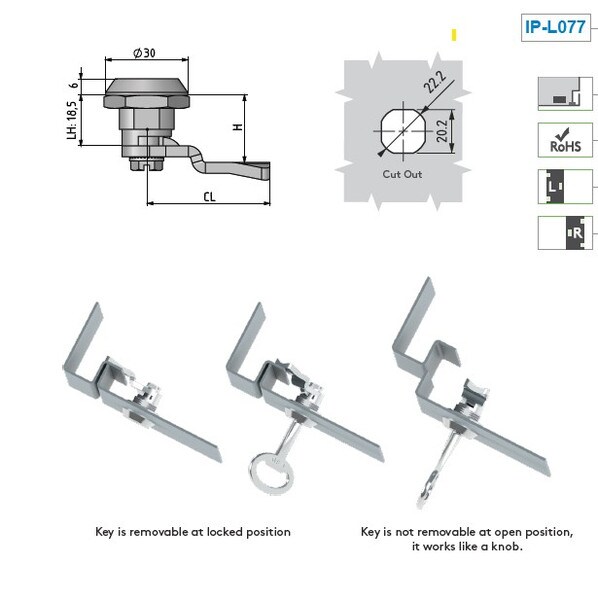

DIMENSIONS

H=25.5mm

CL=49mm

TROAPC's standard warranty covers all products. The standard 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
