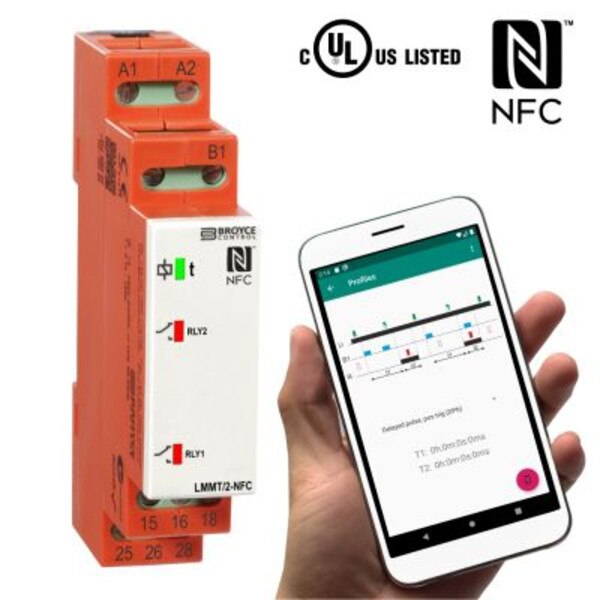

Broyce Control Multi Function Timer (2 x SPDT/1 x DPDT) with NFC
- NFC with Programmable Functions
- Intuitive app for setting up product
- Dual timer capability (0.1s – 999h)
- Multi-voltage (24 – 230VAC/12 – 230VDC)
- 2 x SPDT or 1 x DPDT Relay output (user configurable)
- 17.5mm wide, DIN Rail mount
- UL Listed
NFC (Near Field Communication) based, Dual Timer Relay that uses an app to configure and set the operation of the product.
There are 26 timing functions available with a choice of either supply initiated or switch initiated triggering. There are two timers available which can operate independently allowing each relay output to have it’s own particular function and time delay period allocated to it. Alternatively, the product can be configured to operate as a DPDT relay output.
Being NFC based, the product can also be configured without the need for power to be applied.
- Programmable Timing functions: 26*
- Supply voltage: 24 – 230VAC / 12 – 230VDC
- Time delay: 0.1s – 999h
- Output: 2 x SPDT 8A @ 250V (AC1)
- Dimensions(mm): W:17.5 x H:89 x D:66.5
- Product standard(s): IEC 61812
