Chrome Quarter Turn Lock Keyed for Electrical Enclosures — IP Enclosures
IP-L047 - image 2
Chrome Quarter Turn Lock Keyed for Electrical Enclosures — IP Enclosures
IP-L047 - image 2

Disclaimer: Images are for reference only. Refer to datasheets and drawings for accurate specifications.

IP Enclosures

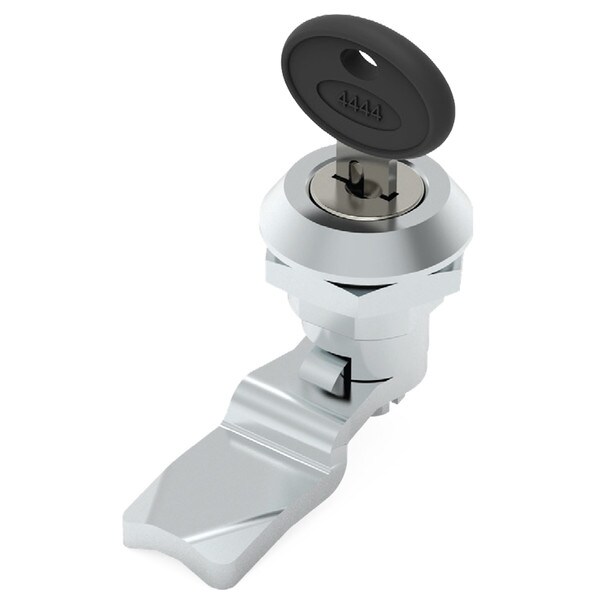

Chrome Quarter Turn Lock Keyed for Electrical Enclosures

SKU
In stock
Stock on hand
NSW WarehouseAuburn, NSW 2144
87 in stock
QLD WarehouseBells Creek, QLD 4551
101 in stock
VIC WarehouseEpping, VIC 3076
95 in stock
Updated 2 minutes ago
Shipping & pickup →
$13.32 ex. GST $14.65 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Material Chrome
  • IP & IK Rating IP66
  • Colour Chrome

Chrome Quarter Turn Lock Keyed for Electrical Enclosures

FEATURES

- IP66

– Cam does not rotate beyond quarter turn due to stop lip.

MATERIAL

HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1
DRIVER: Zamak DIN-EN
CAM: Steel
GASKET: Rubber
FINISH: Chrome
IP RATING: IP66

DRIVERS

IP-L047: Keyed Alike

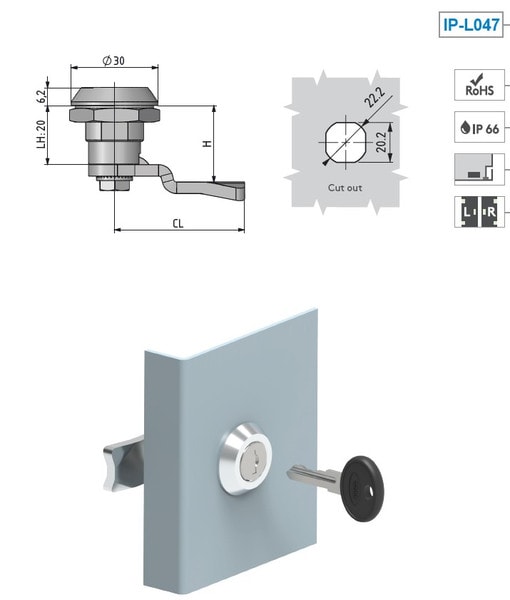

DIMENSIONS

H=27mm

CL=49mm

TROAPC's standard warranty covers all products. The standard 5-year warranty applies to applicable IP Enclosures products. Refer to Refunds & Returns for more information.
