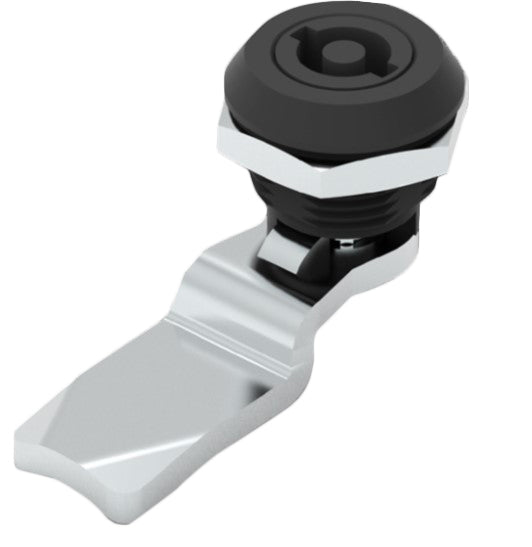

Black Quarter Turn 5mm Double Bit Lock for Electrical Enclosures

SKU
In stock
Stock on hand
NSW WarehouseAuburn, NSW 2144
0 in stock
QLD WarehouseBells Creek, QLD 4551
20 in stock
VIC WarehouseEpping, VIC 3076
0 in stock
Updated 4 minutes ago
Shipping & pickup →
$9.98 ex. GST $10.98 inc. GST
Free Shipping

Ask an expert!

Chat Email 1300876722
  • Material Chrome
  • Colour / Finish Black

Black Quarter Turn 5mm Double Bit Lock for Electrical Enclosures

FEATURES

– Specially designed internal spring provides 1.5 mm of compression.
– Cam does not rotate beyond quarter turn due to stop lip.

MATERIAL

HOUSING: Zamak DIN-EN 1774-ZnAl4Cu1
DRIVER: Zamak DIN-EN
CAM: Steel
GASKET: Rubber
FINISH: Black
IP RATING: IP65

DRIVERS

IP-L008: 5mm Double Bit

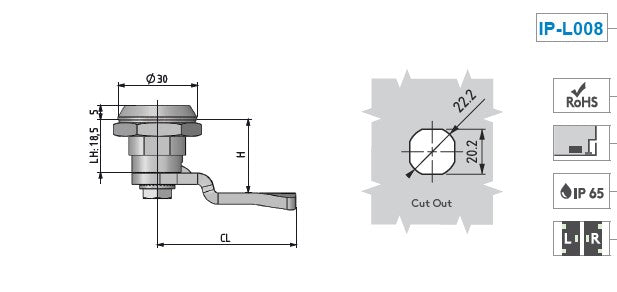

DIMENSIONS

H=25.5mm

CL=49mm
