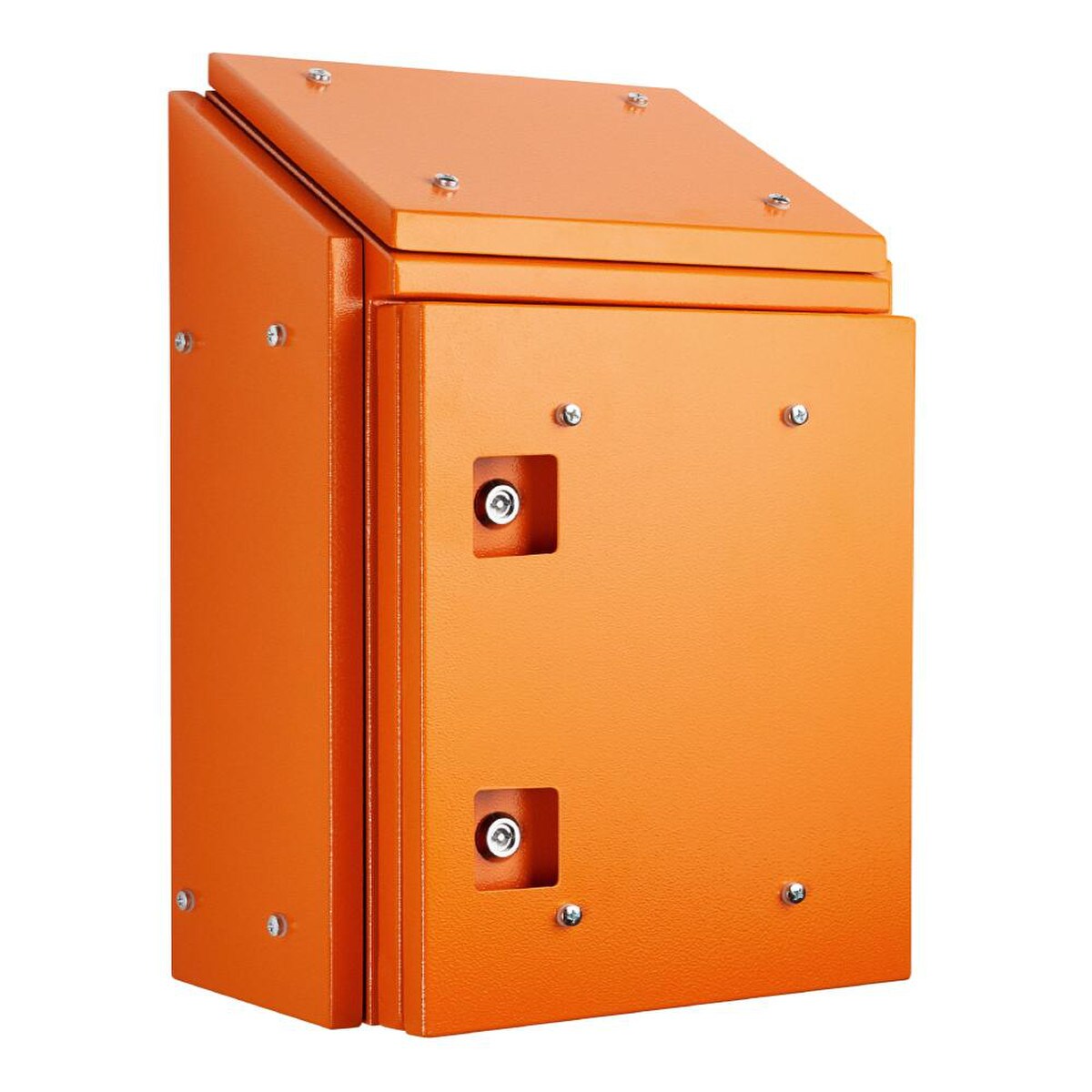

800H x 600W x 300D Steel Sloping Roof Electrical Enclosure, Heavy Duty w/ Sunshields (2mm Gal Steel, 38 Degree Sloping Roof w/ Overhang and 2mm Thick White Mounting Plate)

800H x 600W x 300D Steel Sloping Roof Electrical Enclosure, Heavy Duty w/ Sunshields (2mm Gal Steel, 38 Degree Sloping Roof w/ Overhang and 2mm Thick White Mounting Plate)

IP Enclosures SSR range of sloping roof single door enclosures are designed for heavy duty applications.

Features & Specifications

Protection: IP66 IK10, NEMA 4 (Independent accredited test laboratory).

Standard: IEC 62208, IEC/EN/AS60529, (UL508A Optional), RoHS

Conforming and certified to IEC 62208 – ‘Empty enclosures for low voltage switch gear and control gear assemblies’.

Material:

Body: .1.2 Galvanised Steel Sheet
Door: 1.2 Galvanised Steel Sheet
Device Mounting Plate: Galvanised steel sheet
Seal: Polyurethane

Enclosure Body:

The monoblock body with sloping roof is fabricated using 1.2mm galvanised steel sheet. Flat face sealing surfaces are provided to increase seal life. Pre-fitted blind nutserts are incorporated to accommodate mounting. The roof consists of a sloped roof design that protrudes past the seal, flush with the door face. Integral device plate mounts and M6 earth stud is provided.

Enclosure Door:

The surface mounted door is fabricated using 1.2mm galvanised steel sheet and incorporates concealed removable hinges with captive pins. The door is designed for a 110° opening. Each door contains cable management rails, an M6 earth stud and a high quality machine-applied foamed in place (FIP) Polyurethane seal.

Enclosure Seal:

A high quality machine-applied full perimeter UL listed Polyurethane seal foamed in place (FIP) provides excellent sealing over a long life. Temperature resistance -40°C to 80°C (160°C short term loading).

Enclosure Lock:

Chrome 5mm double bit insert quarter turn lock with key. A full range of locking solutions are available upon request.

Device Mounting Plate:

The device mounting plate is galvanised steel sheet. It is pressed to provide strength. It is pre-fitted into the enclosure as standard.

Surface Treatment:

UL approved epoxy polyester powder-coated with a textured finish. 80-120 micron average thickness. Colour RAL2000.

Your product is covered by a 12 month Warranty or more if you opted for the extended warranty. Make sure you register your product.
